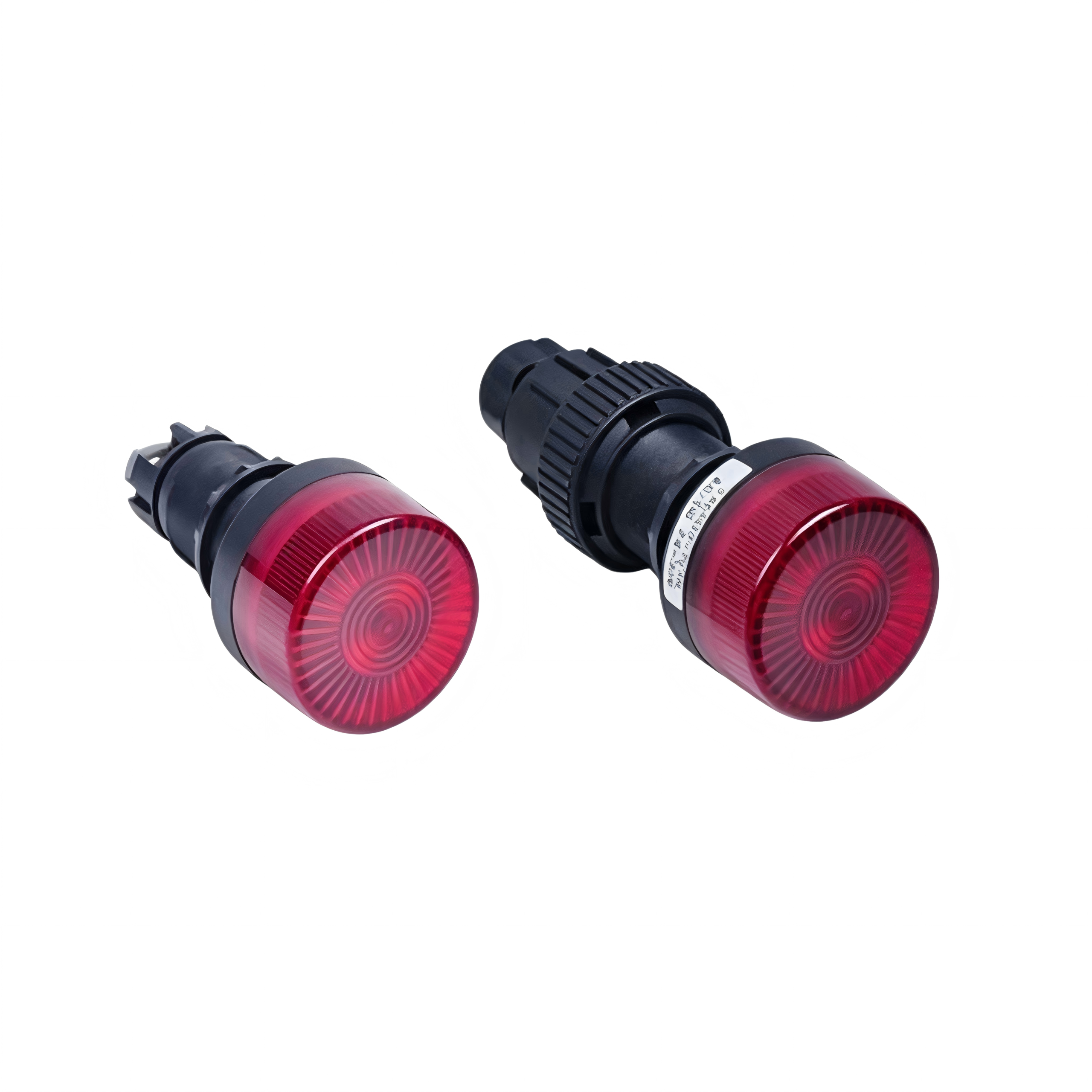

BD8060 Panel Mount Explosion Proof Indicator Light

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas: Suitable for Zone 1 and Zone 2, Zone 21 and Zone 22
• Ex Marking: Gas protection: IECEx (Gas and Dust): Ex db eb IIC T6 Gb; Ex tb IIIC T80℃ Db,

2.Product Parameters

• Product Type：BD8060
• Explosion-proof Signal Lamp (Flashing), panel-mounted, available in rear-panel type-7E and rear-panel cable type-8E
• Certification：Explosion-proof marking: Ex db eb IIC T6 Gb / Ex tb IIIC T80℃ Db IECEx: Ex db eb IIC T6 Gb; Ex tb IIIC T80℃ Db ATEX: II 2G Ex db eb IIC T6 Gb; II 2D Ex tb IIIC T80℃ Db
• Material：Transparent part: Polycarbonate injection-molded Housing: Engineering plastic injection-molded
• Exposed Fasteners：No data specified in the product datasheet
• Electrical Data：Rated
• Voltage 01: AC/DC24-36V 02: AC220-380V 03: DC12-60V, AC12-240V 04: AC/DC110-240V
• Rated Current No data specified in the product datasheet
• Protection
• Ingress Protection Rating: IP66
• Ambient Temperature Applicable ambient temperature: -40℃ ~ +60℃ Applicable working temperature: -40℃ ~ +75℃
• Connection & Input
• Cable Cross-section: 2×2.5 mm²
• Cable Entry: No data specified in the product datasheet
• Cable Gland: No data specified in the product datasheet; rear-panel cable type-8E is designed for cable wiring

3.Product Classification & Origin

HS Code: 8531809000
Country of Origin: China

4.Applicable Industries

• Applicable Industries: Widely used in petroleum, chemical, pharmaceutical, coal-chemical and other industries with explosive gas and dust.
• Suitable For: Applied for Zone1/2 gas hazardous area and Zone21/22 dust hazardous area, mounted on 1-8 mm panel for equipment signal indication.
• Practical Performance: Multiple lighting modes, colors and voltage options, long-life LED, two mounting types, customizable cable for flexible installation.
• Safety Performance: Dual gas-dust explosion-proof certification, IP66 rating, wide temperature tolerance, impact-resistant housing for safe operation in hazardous locations.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1：What is the explosion-proof marking of BD8060 explosion-proof signal lamp?

A1：Its explosion-proof marking is Ex db eb IIC T6 Gb / Ex tb IIIC T80℃ Db.

Q2：What is the protection grade of BD8060 explosion-proof signal lamp?

A2：The ingress protection rating is IP66.

Q3：What installation thickness of panel does BD8060 fit for?

A3：It can be installed on panels with thickness from 1 mm to 8 mm.
