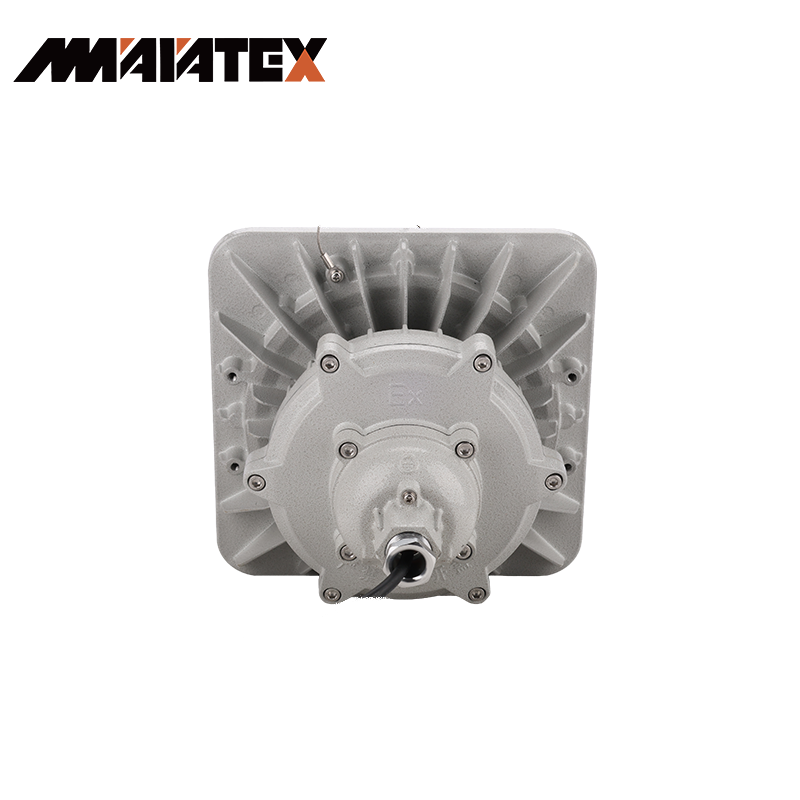

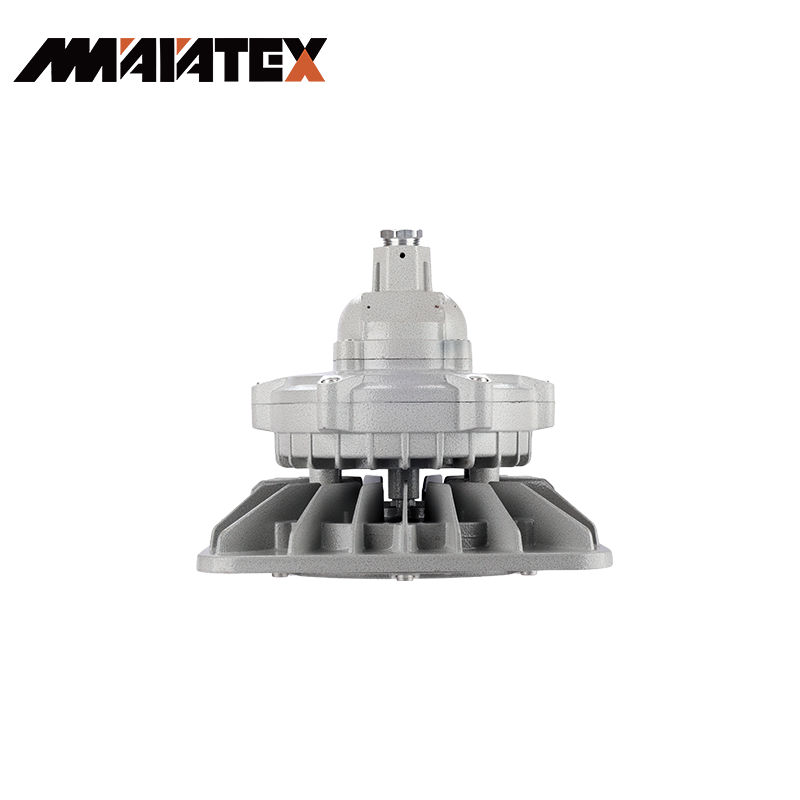

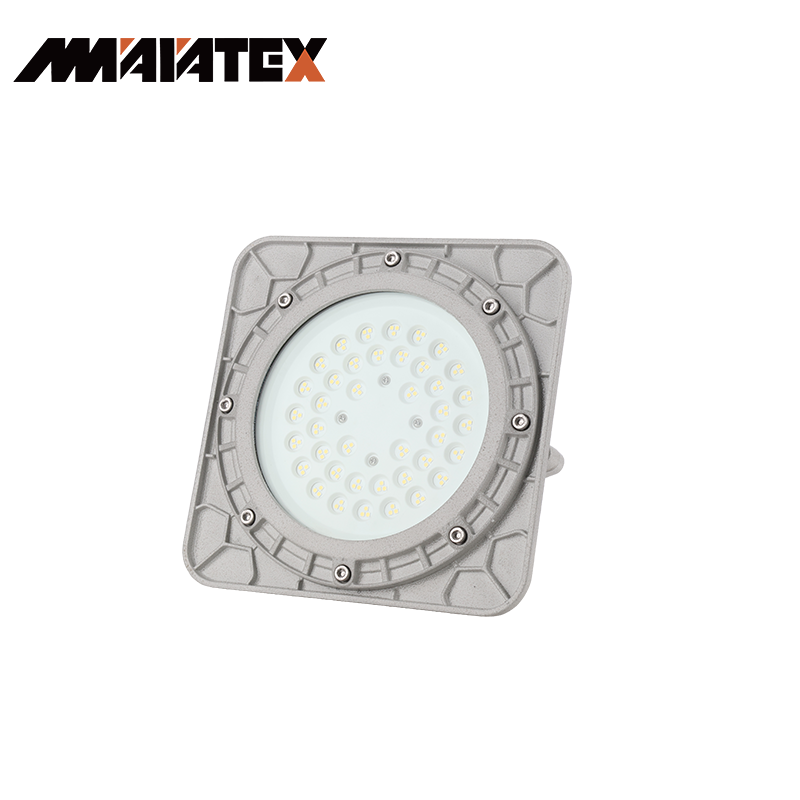

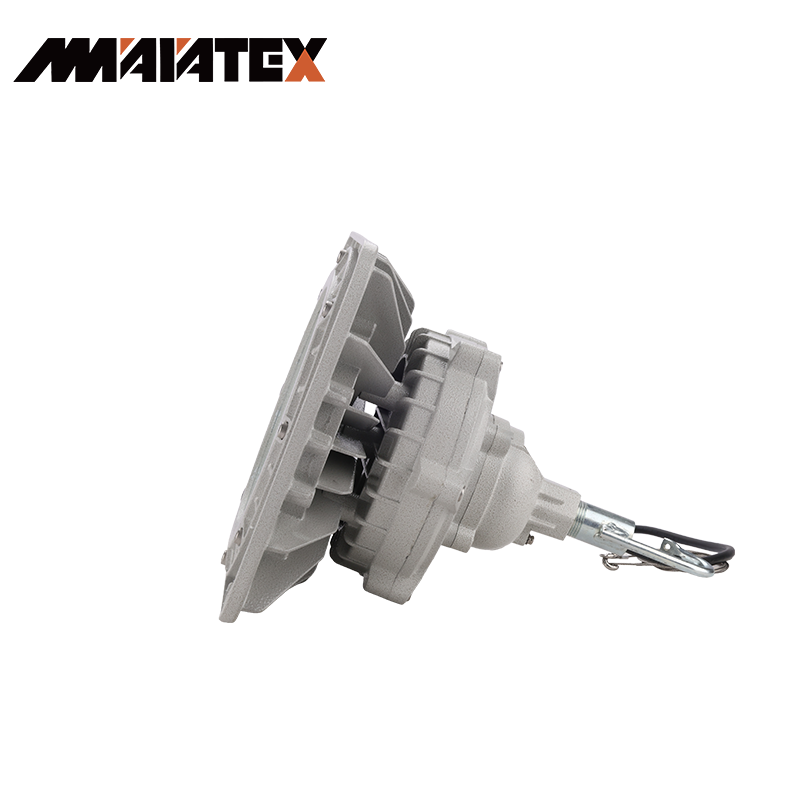

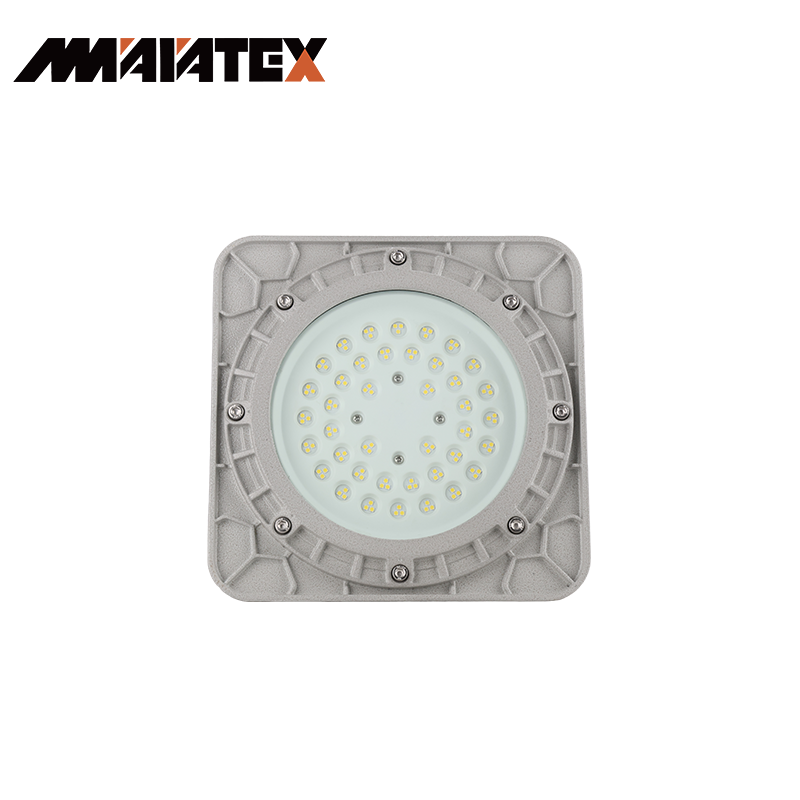

MAMBD8226 Explosion LED Light

Technical Data

1. Explosion-proof Type

• Standards: CENELEC, IEC, GB
• Zones: Zone 1 & Zone 2; Zone 21 & Zone 22
• Explosion protection marking:
• IECEx (Gas & Dust): Ex db IIC T4/T5/T6 Gb; Ex tb IIIC T130℃/T95℃/T80℃ Db
• ATEX (Gas & Dust): II 2G Ex db IIC T4/T5/T6 Gb; II 2D Ex tb IIIC T130℃/T95℃/T80℃ Db

2. Product Parameters

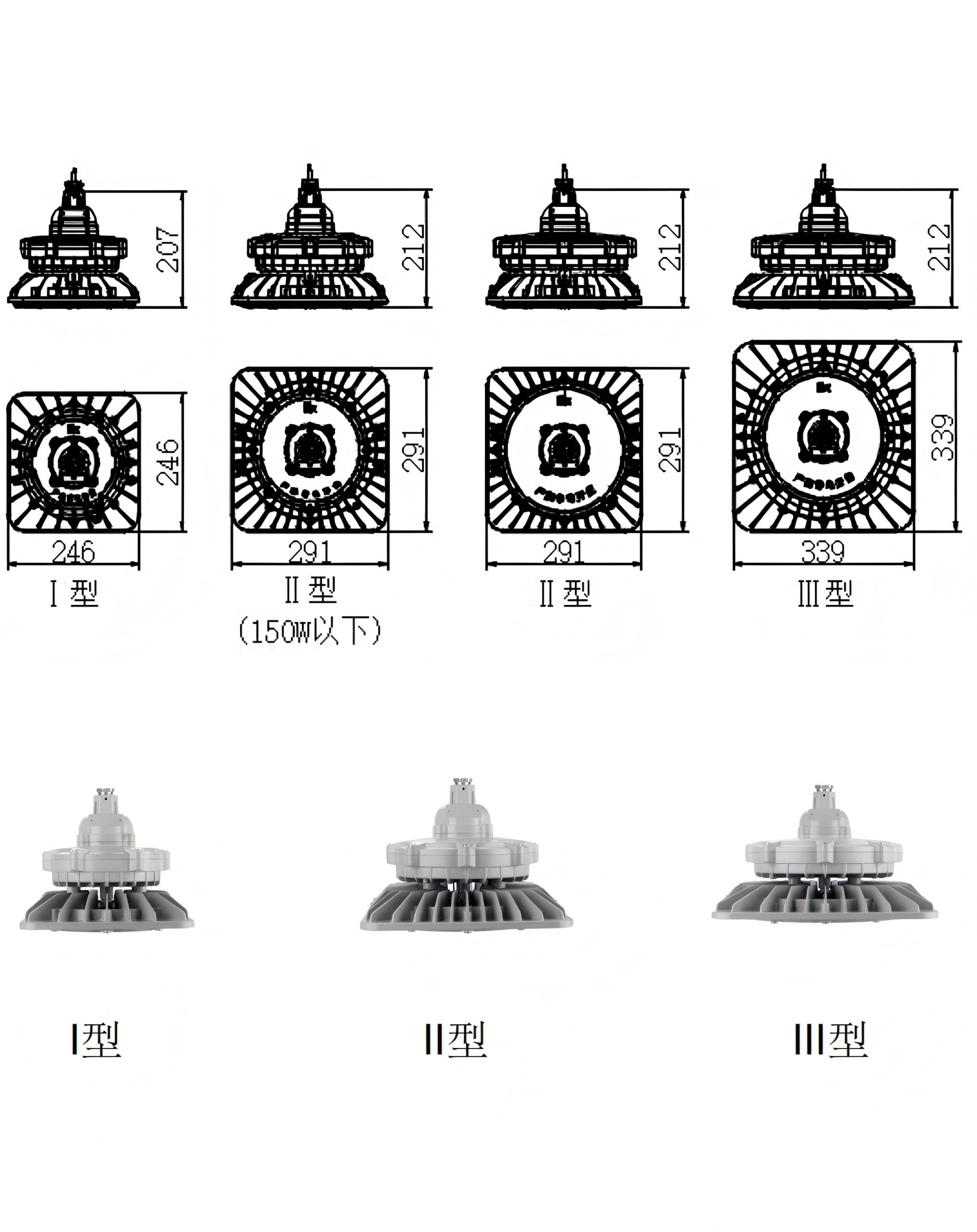

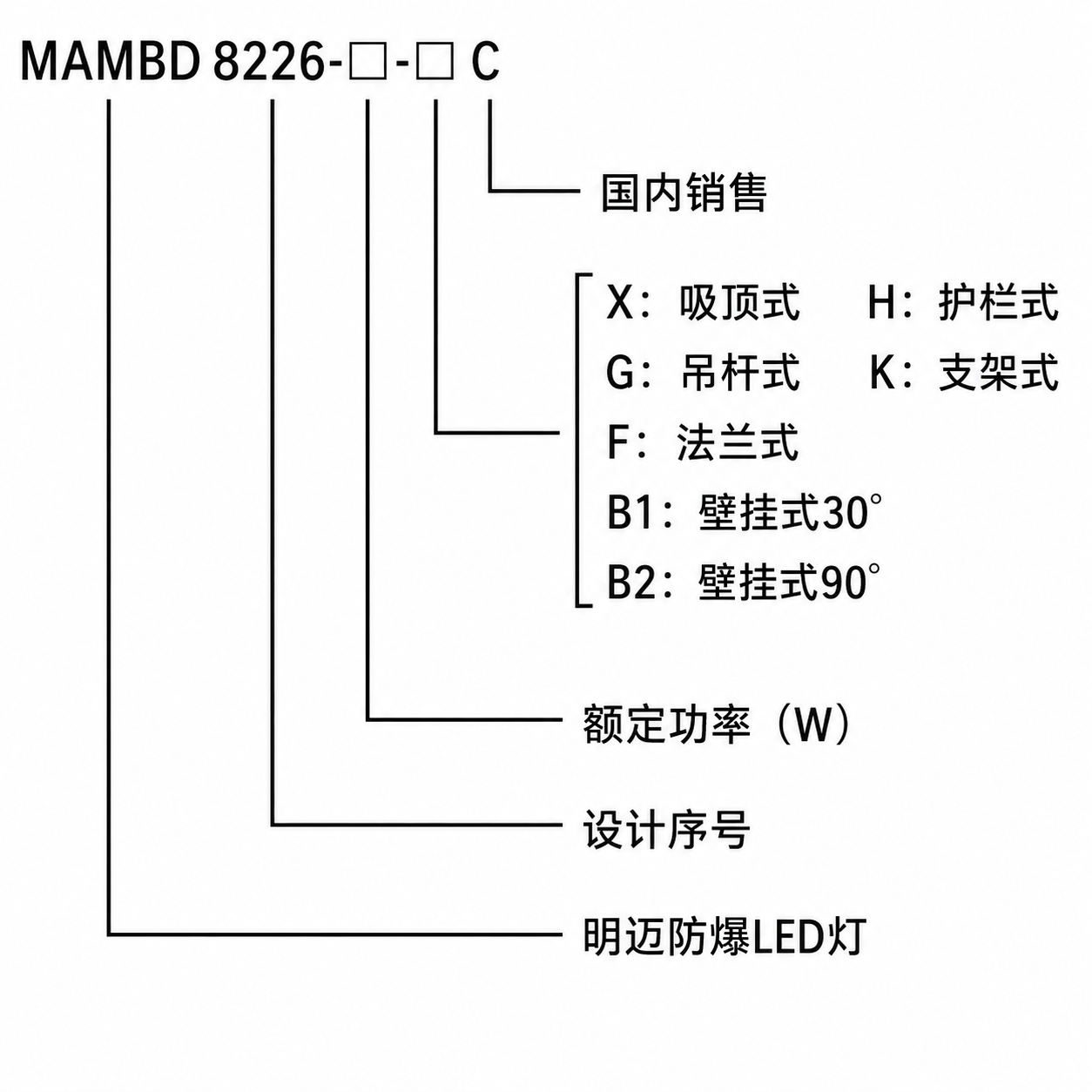

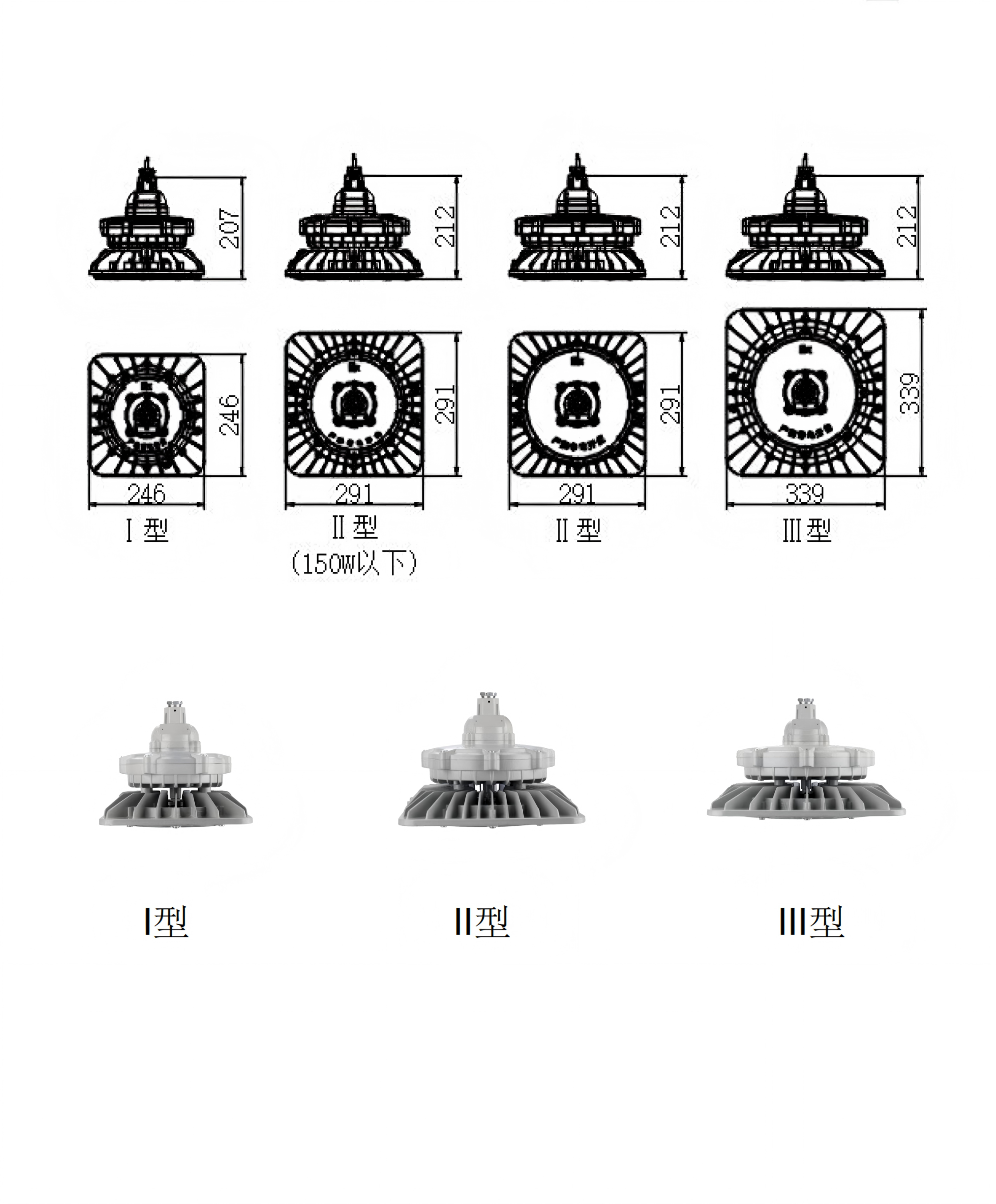

Product Model	I	II	Ⅲ
Executive Standard	GB/T3836.1 GB/T3836.2 GB/T3836.31 IEC60079-0 IEC60079-1 IEC60079-31
Rated Power	50-100W	110-200W	210-300W
Rated Voltage	AC220V DC220V AC36V ADC36V AC24V DC24V(Please specify when placing orders)
Explosion-proof Marking	Ex db IICT4/T5/T6 Gb; Ex tb IIIC T130℃/T95℃/T80℃ Db
Protection Rating	IP66
Anti-corrosion Grade	WF1 WF2(Customizable)
Cable Entry Device	M25×1.5 G3/4Cable Outer Diameter: 8–14mm
Luminous Efficacy	≥130lm/W
Beam Angle	105°	II(105°90°)

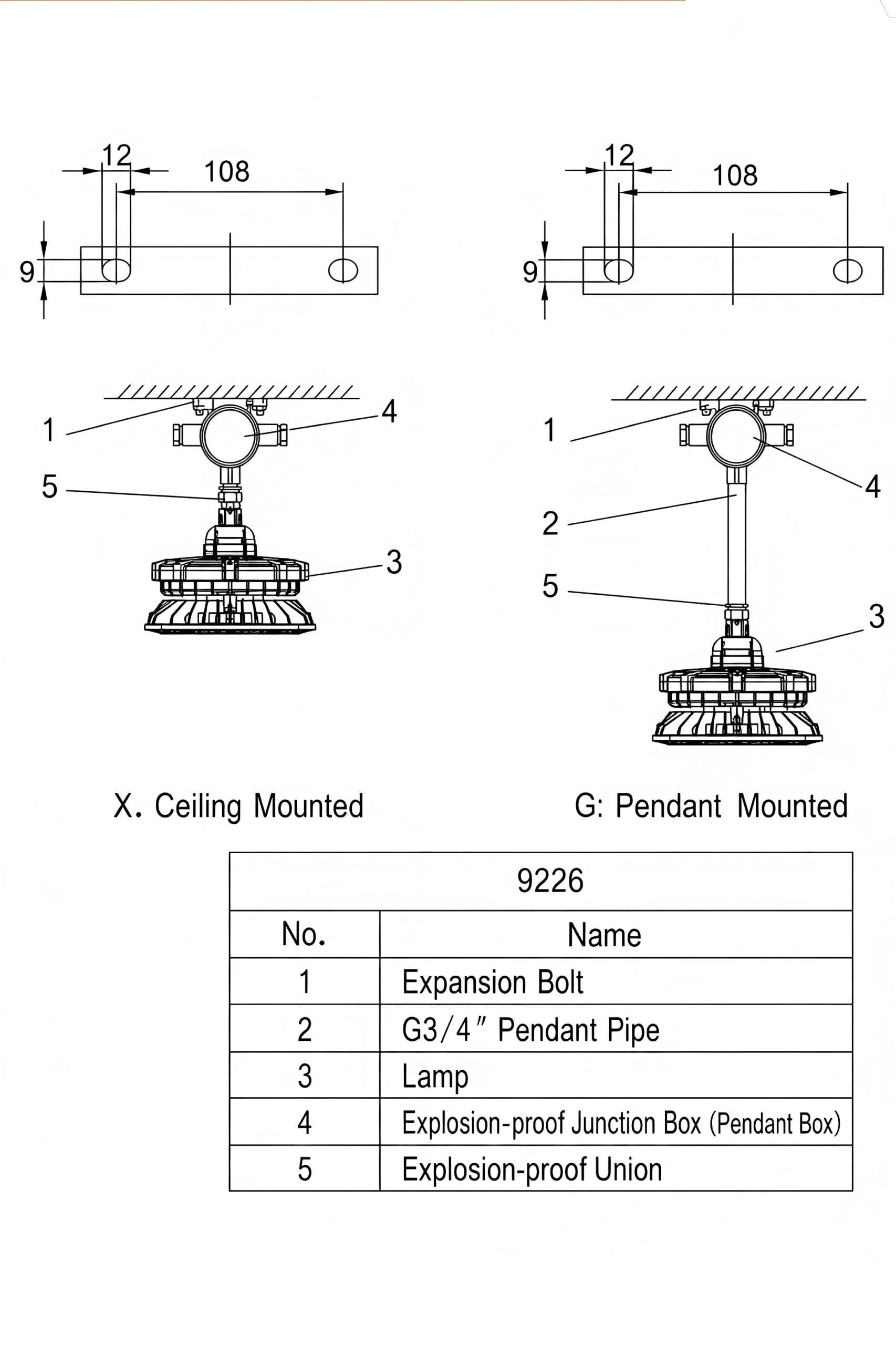

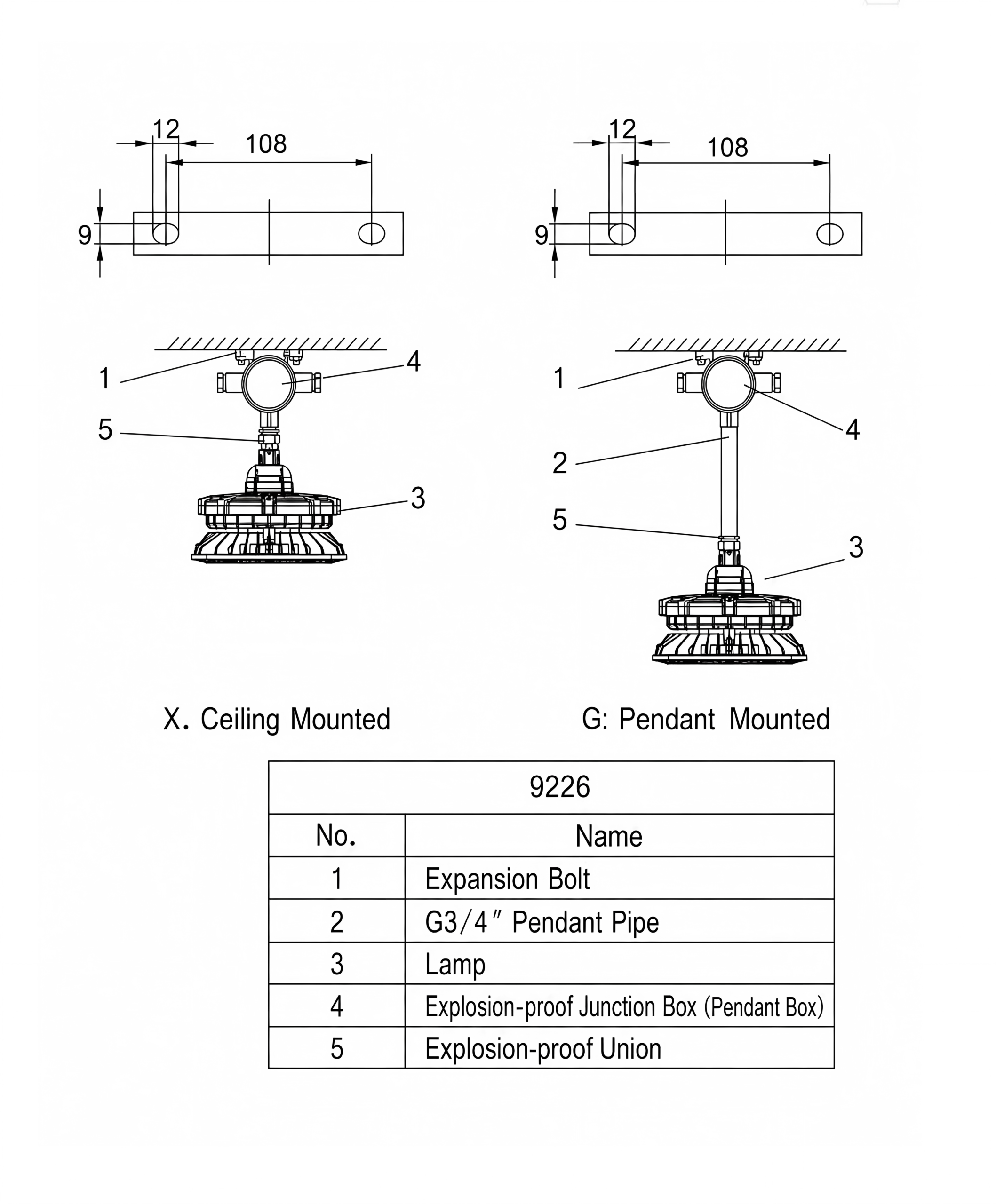

Mounting Method	Ceiling mounting (X), Pendant mounting (G)
Weight	4.63Kg	6.61Kg	8.91Kg

3.Product Classification & Origin

HS Code:94054
Country of Origin: China

4.Applicable Industries

• Widely used for floodlighting in hazardous environments such as oil extraction, oil refining, chemical industry, military industry, electric power, metallurgy, etc.;
• Suitable for environments containing corrosive gases, humid conditions, and places with high protection requirements; Suitable for Zone 1 and Zone 2 locations with explosive gas atmospheres;
• Suitable for Zone 21 and Zone 22 locations with combustible dust atmospheres;
• Suitable for Class IIA, IIB, and IIC explosive gas atmospheres;
• Suitable for temperature groups T1T6.

5.Credibility

MMAIATEX explosion-proof luminaires comply with the strictest international standards and hold complete ATEX, IECEx and EAC certifications to ensure compliant operation in global markets. Our lighting fixtures are engineered for extreme environments with an IP65/IP66/IP67 protection rating, delivering full resistance to water, dust and corrosion. We work closely with customers through comprehensive technical support, comprehensive warranty service and worldwide logistics. Wherever you operate, MMAIATEX ensures smooth project delivery and provides safe and reliable lighting solutions for hazardous areas.
MMAIATEX Explosion Proof Lighting: Designed for global compliance and reliability.

6.FAQs

Q1: Is this explosion-proof LED light suitable for outdoor use?

A1: Yes, it has IP66 protection rating, capable of withstanding outdoor environments with rain, snow and heavy dust.



Q2: Do you support customization according to different requirements?

A2: Yes, we support customization. Multiple voltage options are available including AC220V, DC220V, AC36V, ADC36V, AC24V, DC24V and other customized voltages.



Q3: What installation methods are available for selection?

A3: Multiple installation options are available, including ceiling mounting (X) and pendant mounting (G).
