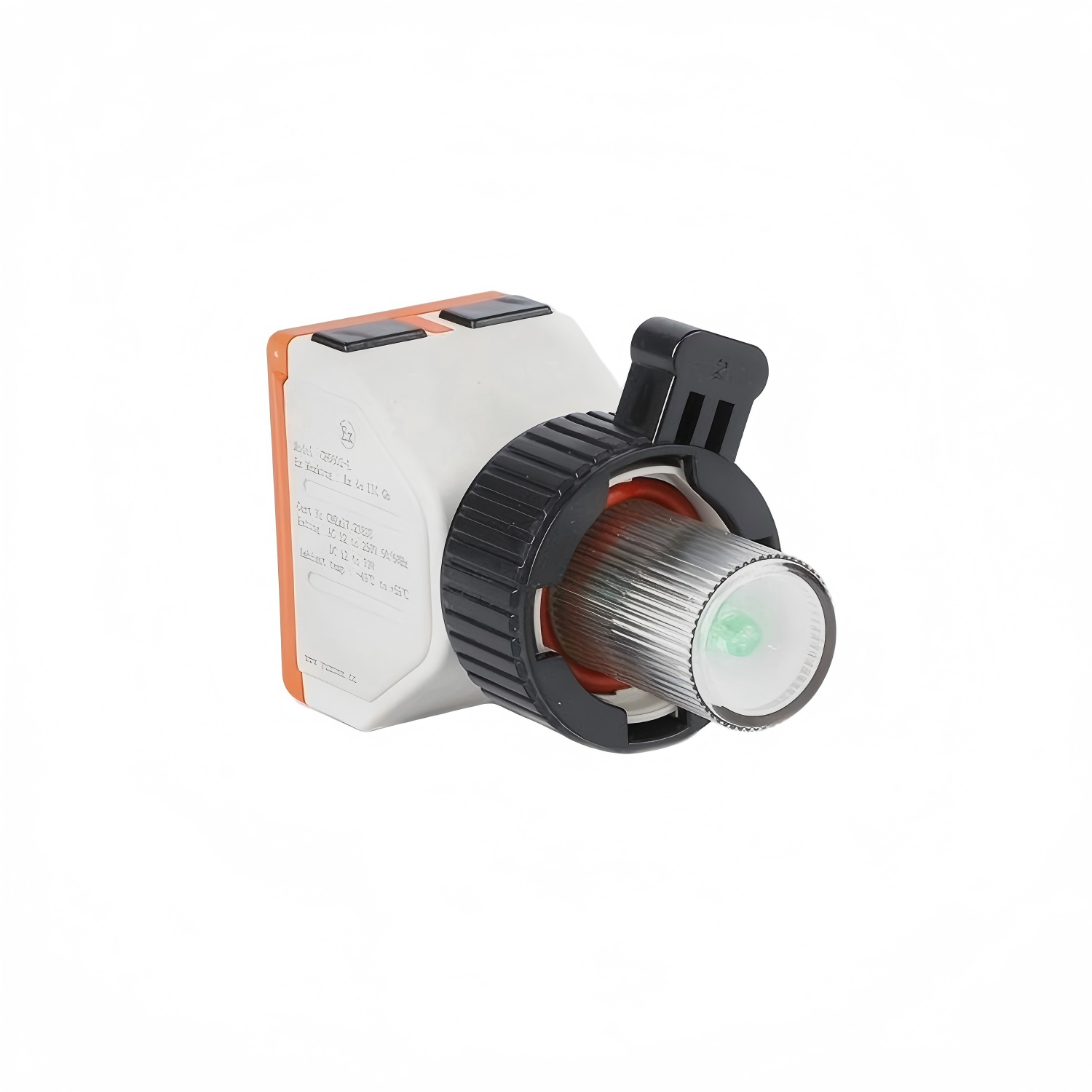

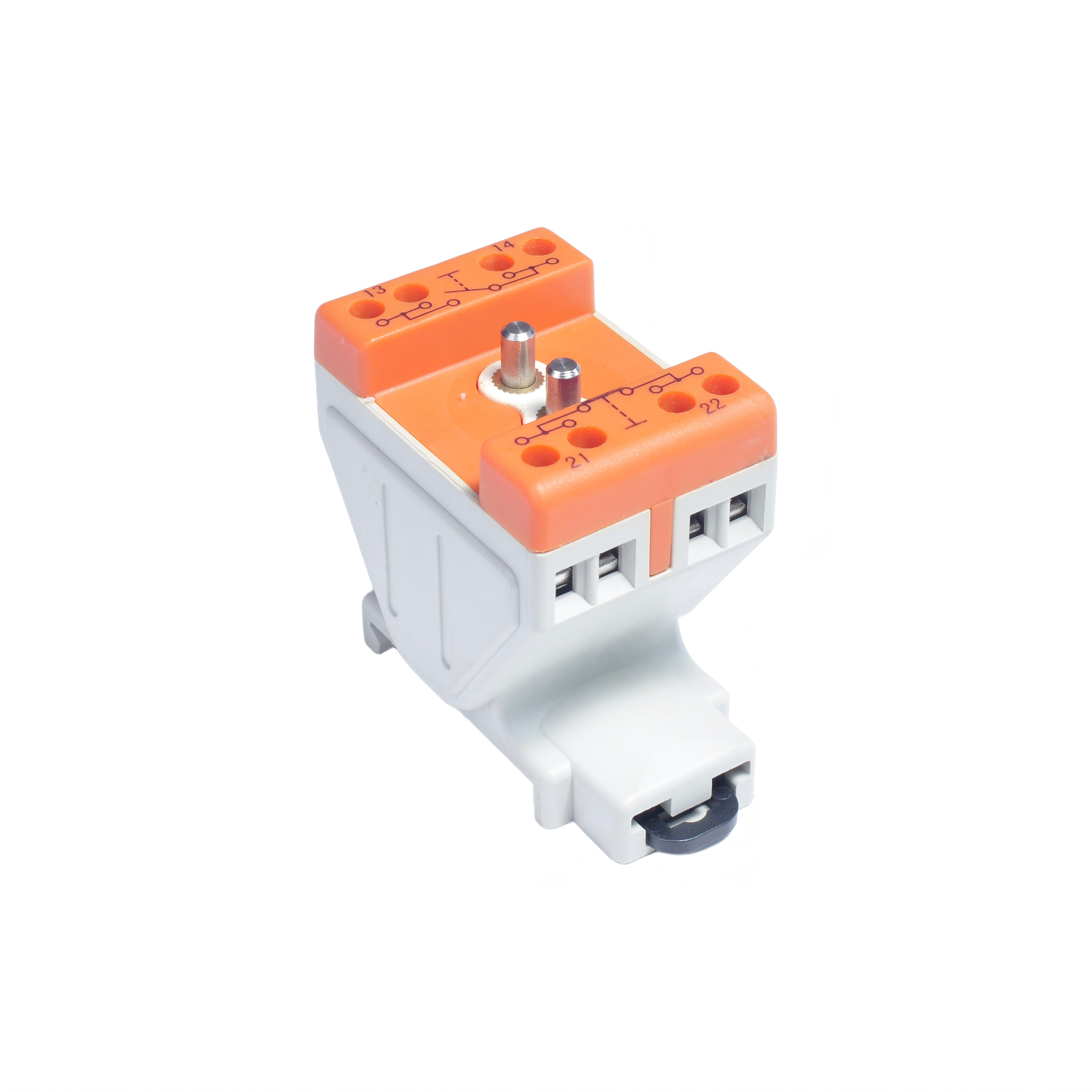

CH0812 Panel Mount Explosion Proof Lit Button Module

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas: Suitable for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous areas
• Ex Marking: Gas protection: Ex db eb IIC T6 Gb / Ex tb IIC T80℃ Db

2.Product Parameters

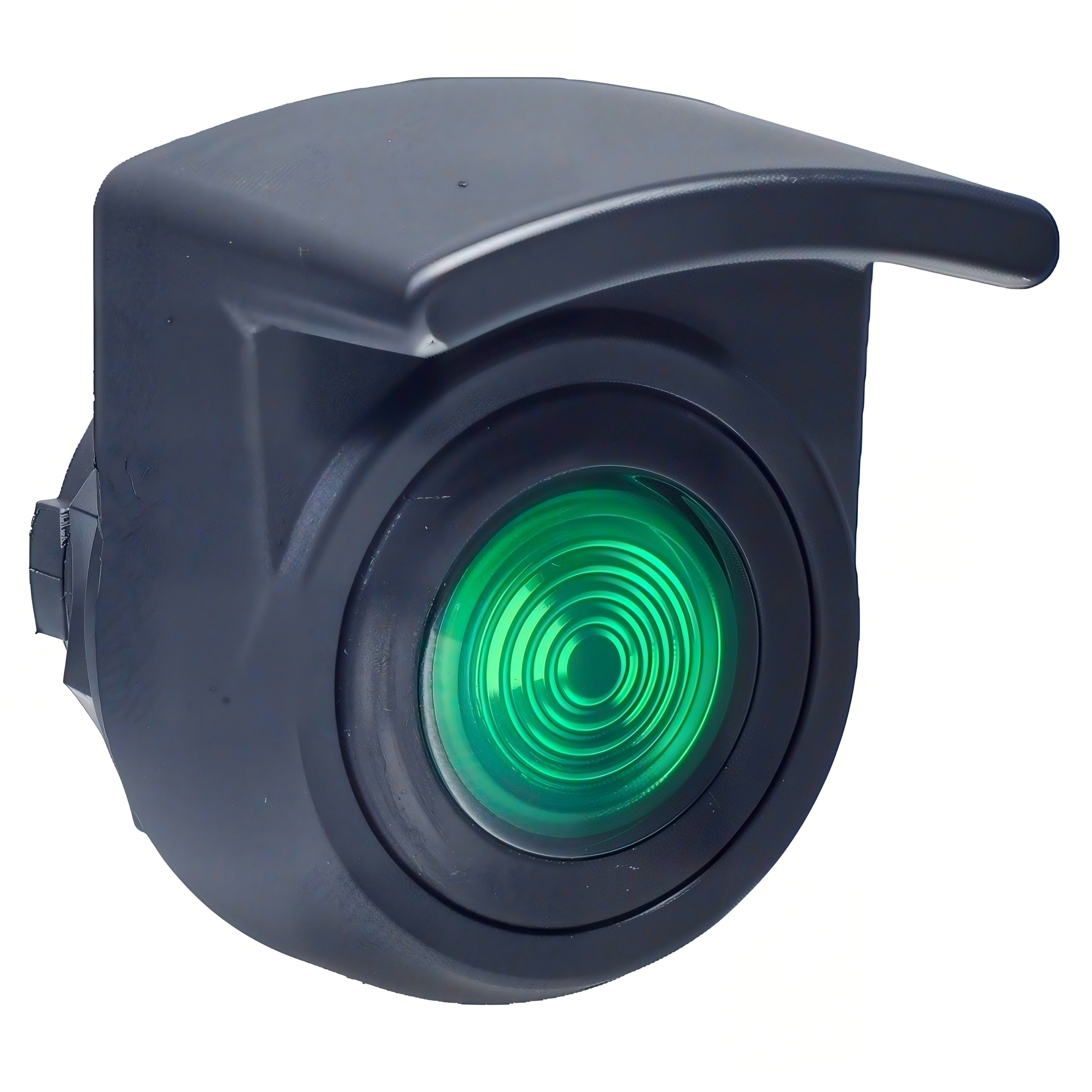

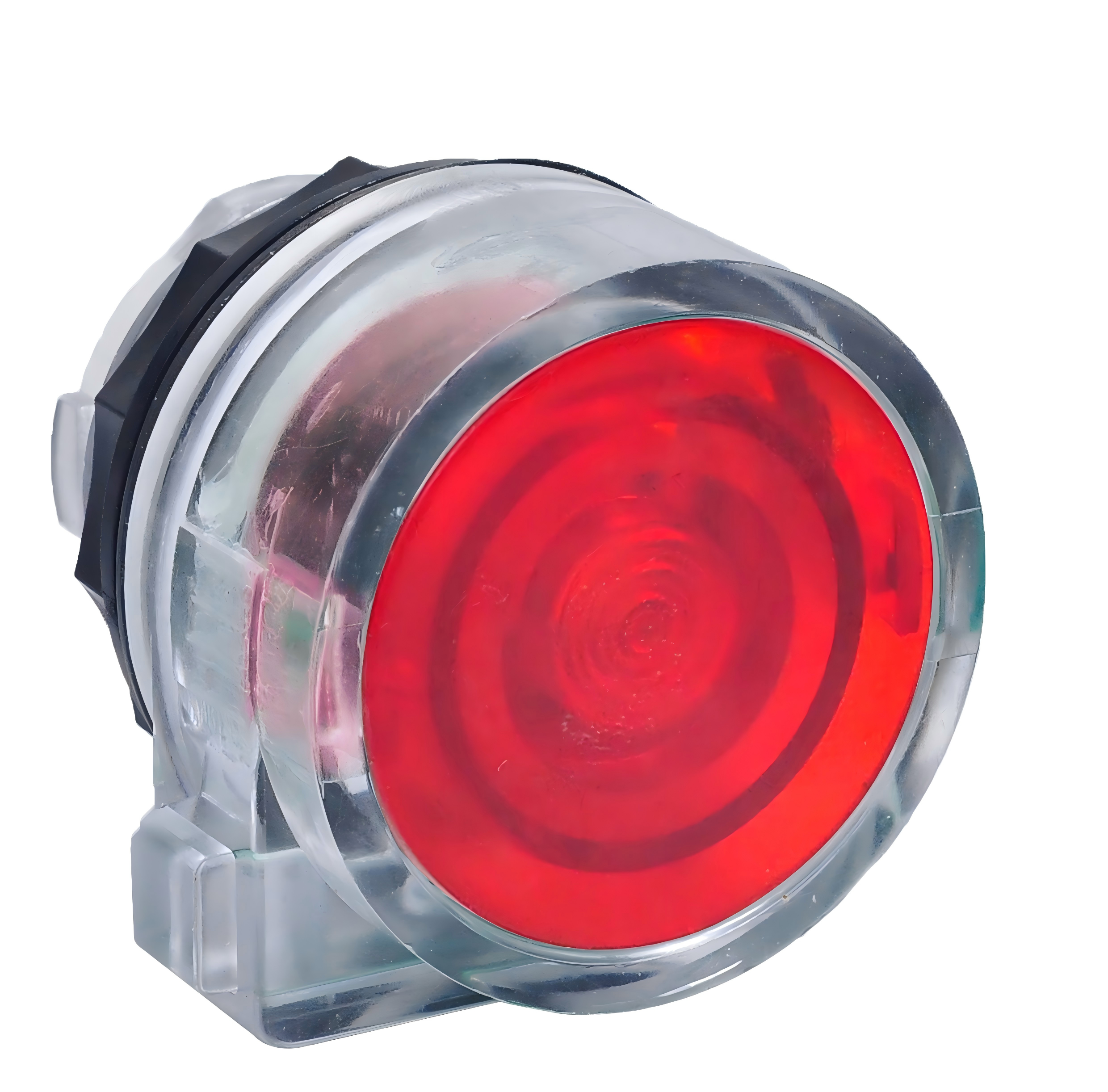

• Product Type：Panel-mount explosion-proof signal lamp module with lamp cover
• Certification：Ex db eb IIC T6 Gb / Ex tb IIC T80℃ Db
• Material：Housing: Customized engineering plastic – Transparent cover: Polycarbonate
• Exposed Fasteners：Not marked on drawing, no public data available
• Electrical Specifications：Rated Voltage: AC/DC24-36V; AC220V; DC12-60V, AC12-240V; AC/DC110-240V -Rated Current: Not specified in manual
• Protection：Protection Degree: IP66 (Rear-panel cable type, assembled with operating head) – Ambient Temperature: -40℃ ~ +60℃
• Connection & Input：Cable Cross-section: 4×1.5mm² – Cable Entry: Supplied with factory cable, no separate cable entry parameter – Cable Gland: Not specified in manual

3.Product Classification & Origin

HS Code: 8536509000
Country of Origin: China

4.Applicable Industries

• Applicable Industries: This product is suitable for various flammable-explosive industrial sites such as petrochemical, pharmaceutical and metallurgy.

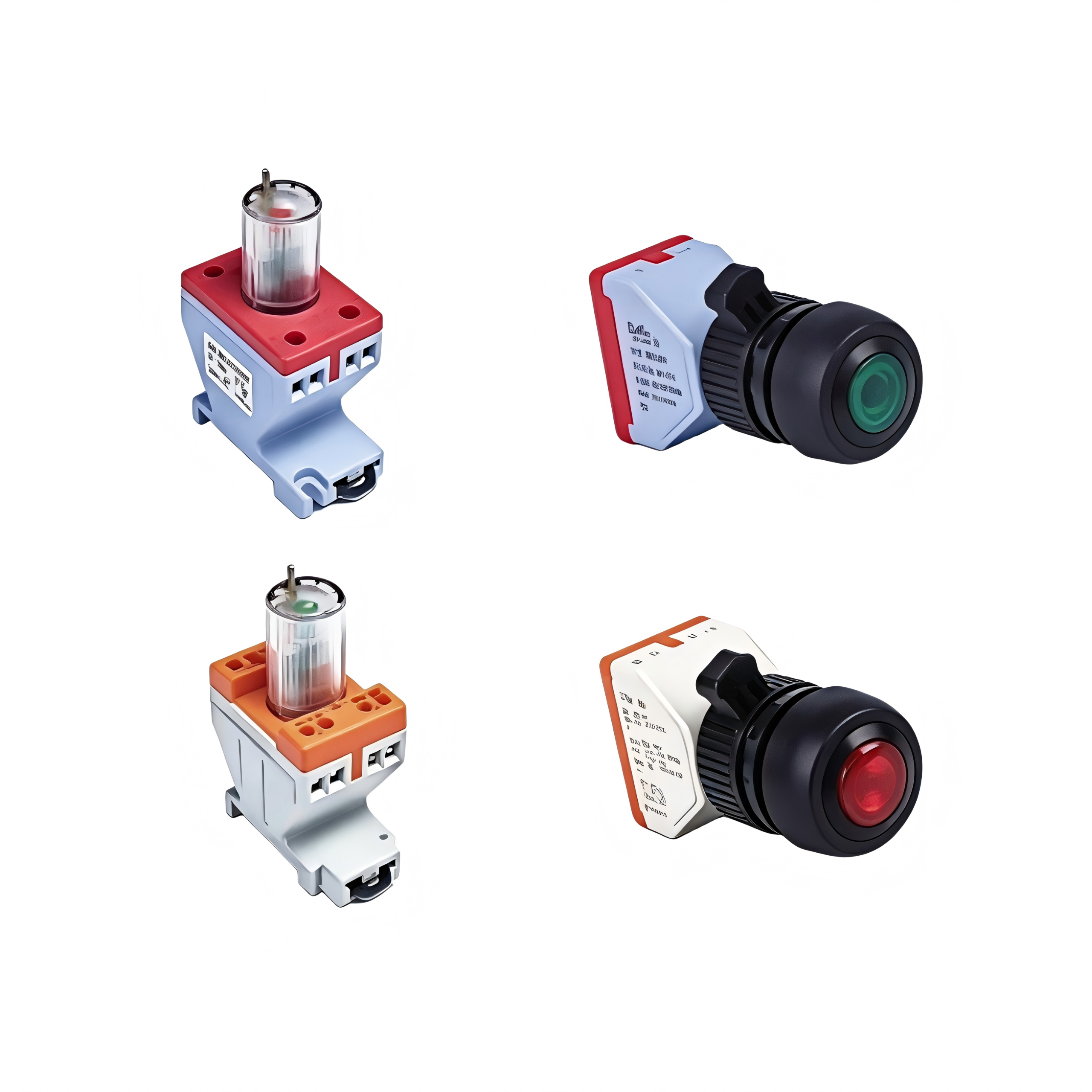

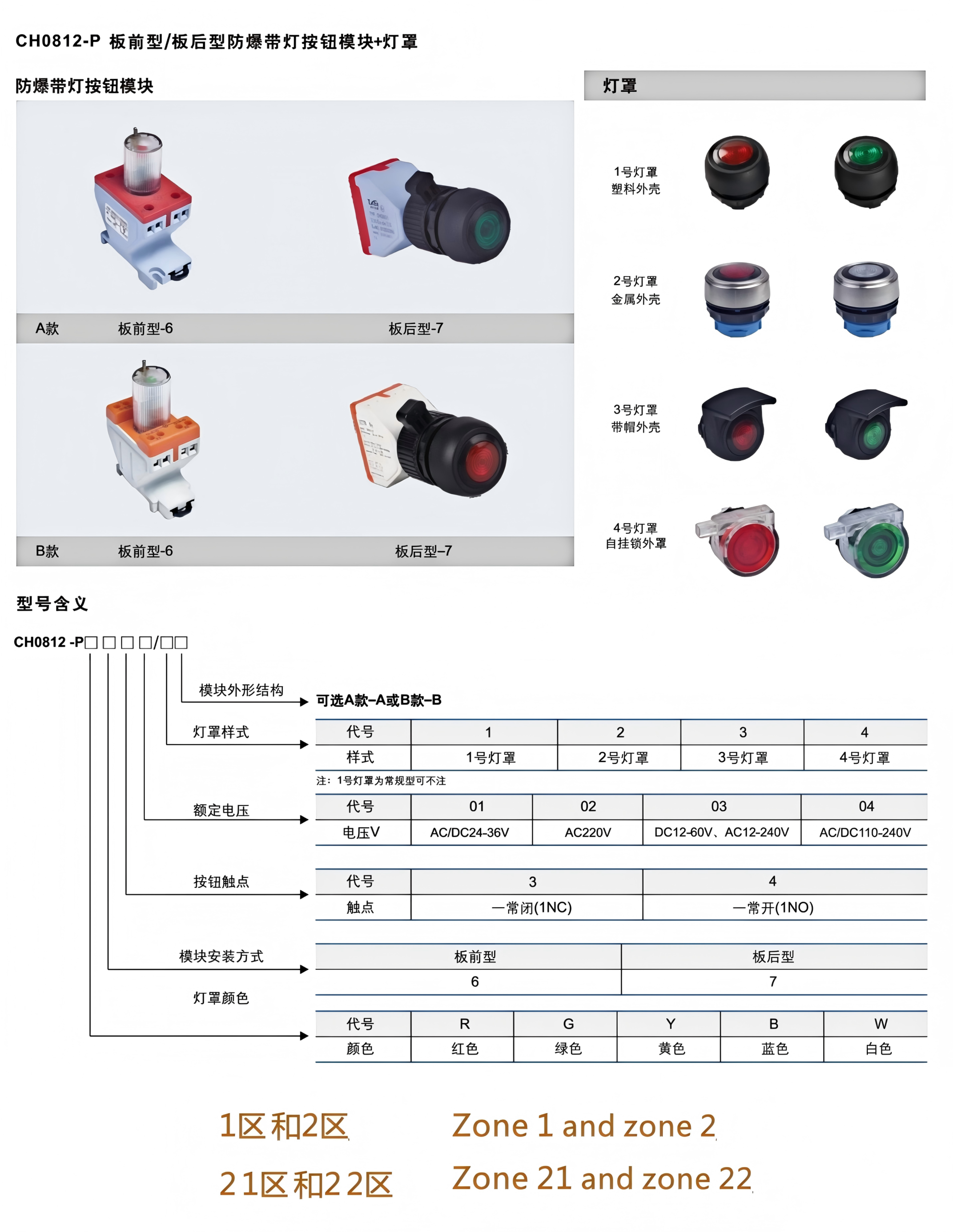

• Practicality: Multiple modules and lamp-covers are available. Rear-panel mounting fits different panels, cables can be customized for flexible field installation.
• Safety Performance: Complete explosion-proof certification, IP66 protection, wide temperature tolerance, durable material and reliable contacts ensure safe operation in hazardous areas.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1: What hazardous areas can this explosion-proof push-button module be applied to?

A1: It is suitable for Zone 1, Zone 2, Zone 21 and Zone 22 hazardous locations.



Q2: What are the practical advantages of this panel-mount explosion-proof push-button module?

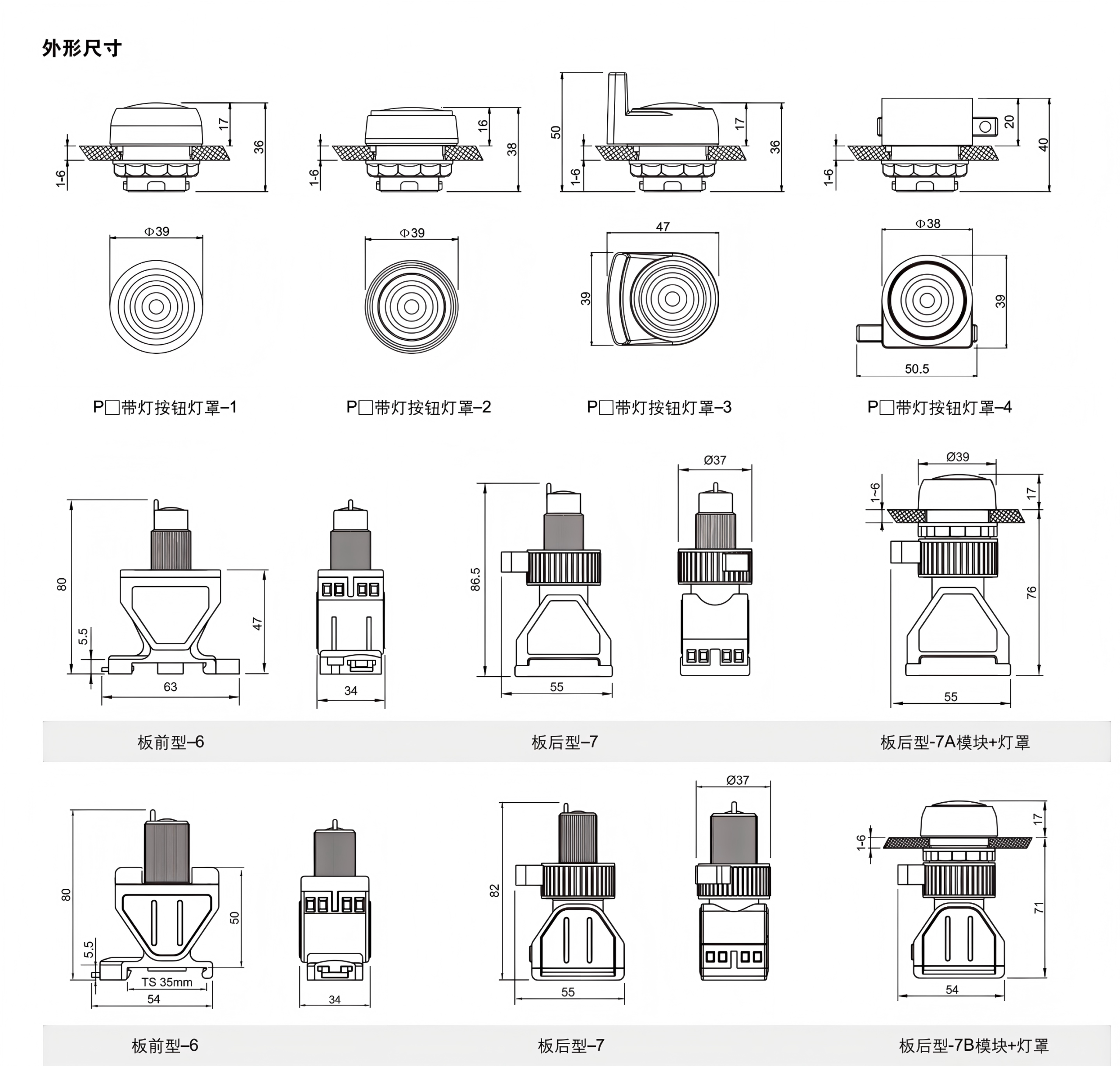

A2: It supports rear-panel installation for 1-8mm panels, offers multiple module and lamp-cover options, and the cable length can be customized.



Q3: What safety features does this explosion-proof push-button module have?

A3: It holds Ex db eb IIC T6 Gb / Ex tb IIC T80℃ Db certification with IP66 protection grade, durable materials and reliable contacts for hazardousarea safety.
