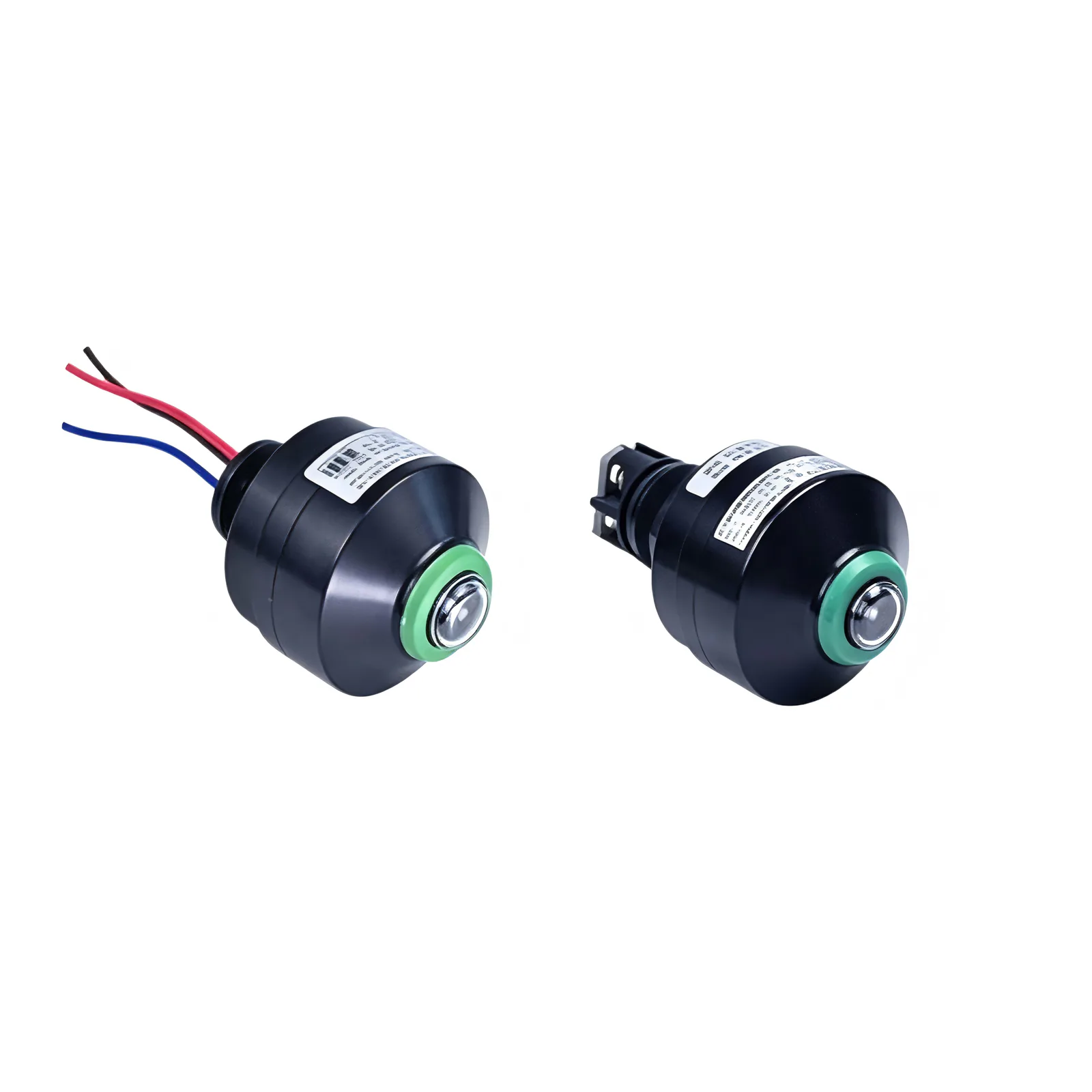

CH8000-BG7 Explosion-proof Photocell

Main Technical Data

• Explosion-proof Mark: Ex db eb ib mb IIC Gb, Ex ib tb IIIC Db
• Applicable Zones: Zone 1, Zone 2, Zone 21, Zone 22
• Ambient Operating Temperature: -40℃ ~ +60℃
• Working Temperature: -40℃ ~ +75℃
• Protection Class: IP66
• Rated Voltage: 100-250V AC 50/60Hz
• Rated Current: Max 10A
• Switching Capacity: 1000W
• Terminal Wiring: 1m cable (3×1.5mm²)
• Sensitivity: ON＜10Lux, OFF＞40Lux
• Flameproof Thread: M30×1.5
• Tightening Torque: 8Nm
• Housing Material: Aluminum Alloy
• Compatible Enclosure: Exd / Exe explosion-proof enclosures
