| Item | Specification | Item | Specification |
|---|---|---|---|
| Max Voltage | AC 450V | Max Current | 10A |
| Switch Combination | N/A | IP Protection Rating | IP66 |
| Material | Aluminum Alloy, Stainless Steel | Mechanical Life | N/A |
| LED Indicator Light | None | Intelligent Function | None |
| Place of Origin | Zhejiang, China | Model No. | CH8098-K |
| Brand | MMAIATEX | Product Name | Metal Explosion-proof Push Button |
| Contact Type | 1NC/1NO, 2NC, 2NO, etc. | Maximum Rated Current | 10A |
| Operating Temperature | -55 ℃ ~ +60℃ | Mechanical Life | 1,000,000 Times |
| Certificates | NEPSI and CNEX Certified | Intended Application | Zone 0, 1, 2 and Zone 20, 21, 22 |
| Compliance Standards | IEC60079, EU EN60079 | Ex Mark | Ex d IIC Gb |
All Products, Exd, Exe components& cable glands& boxes, Explosion Proof Components, Most Popular

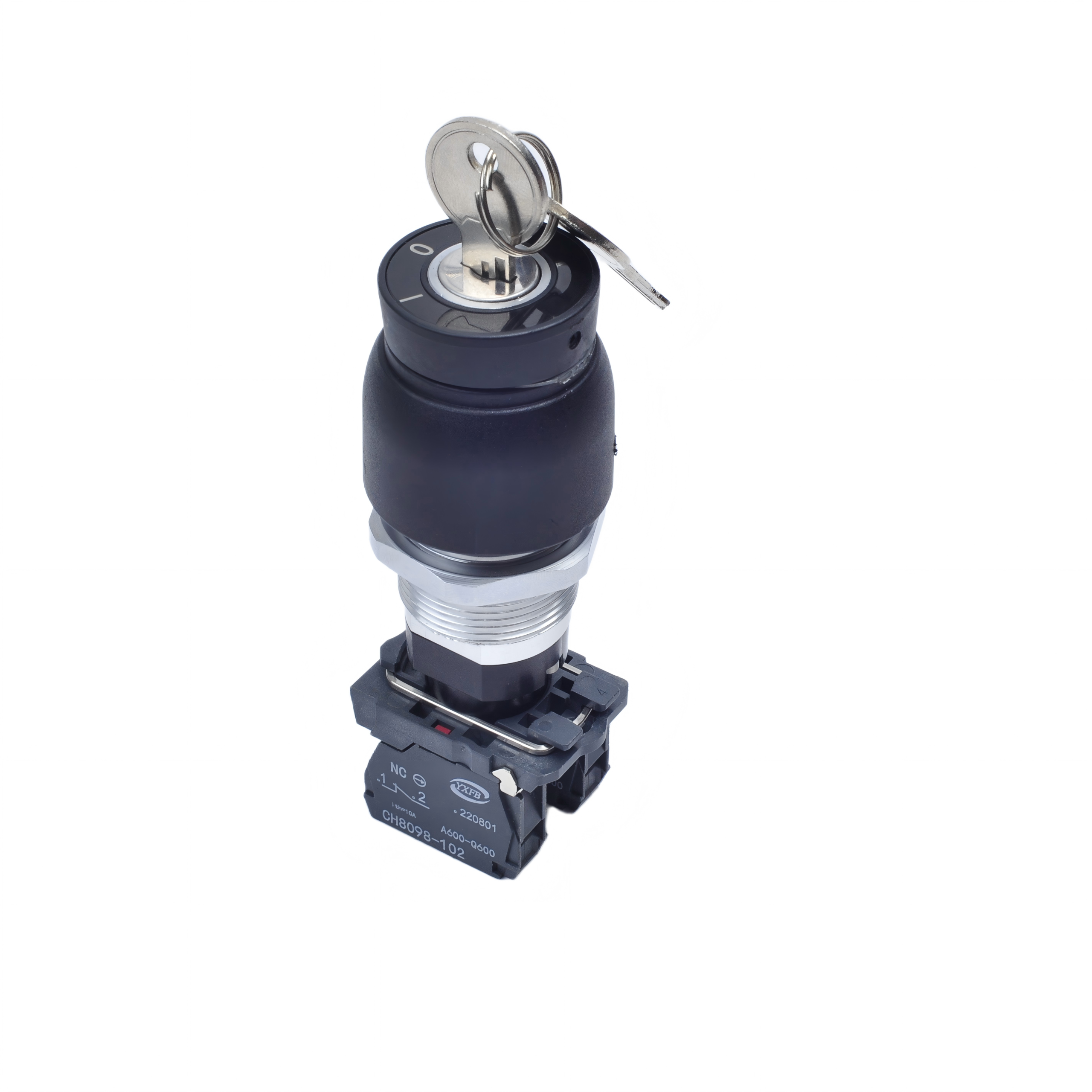

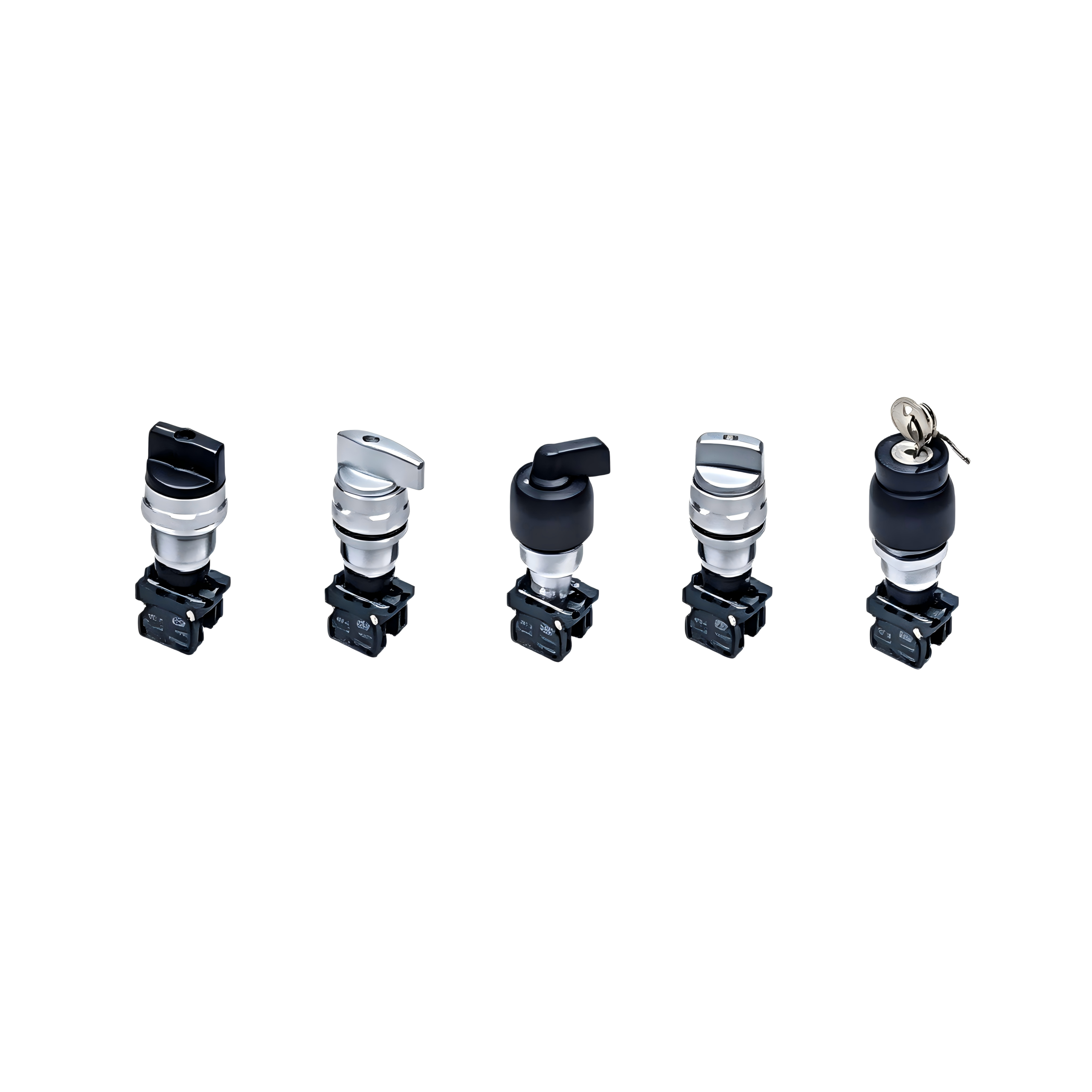

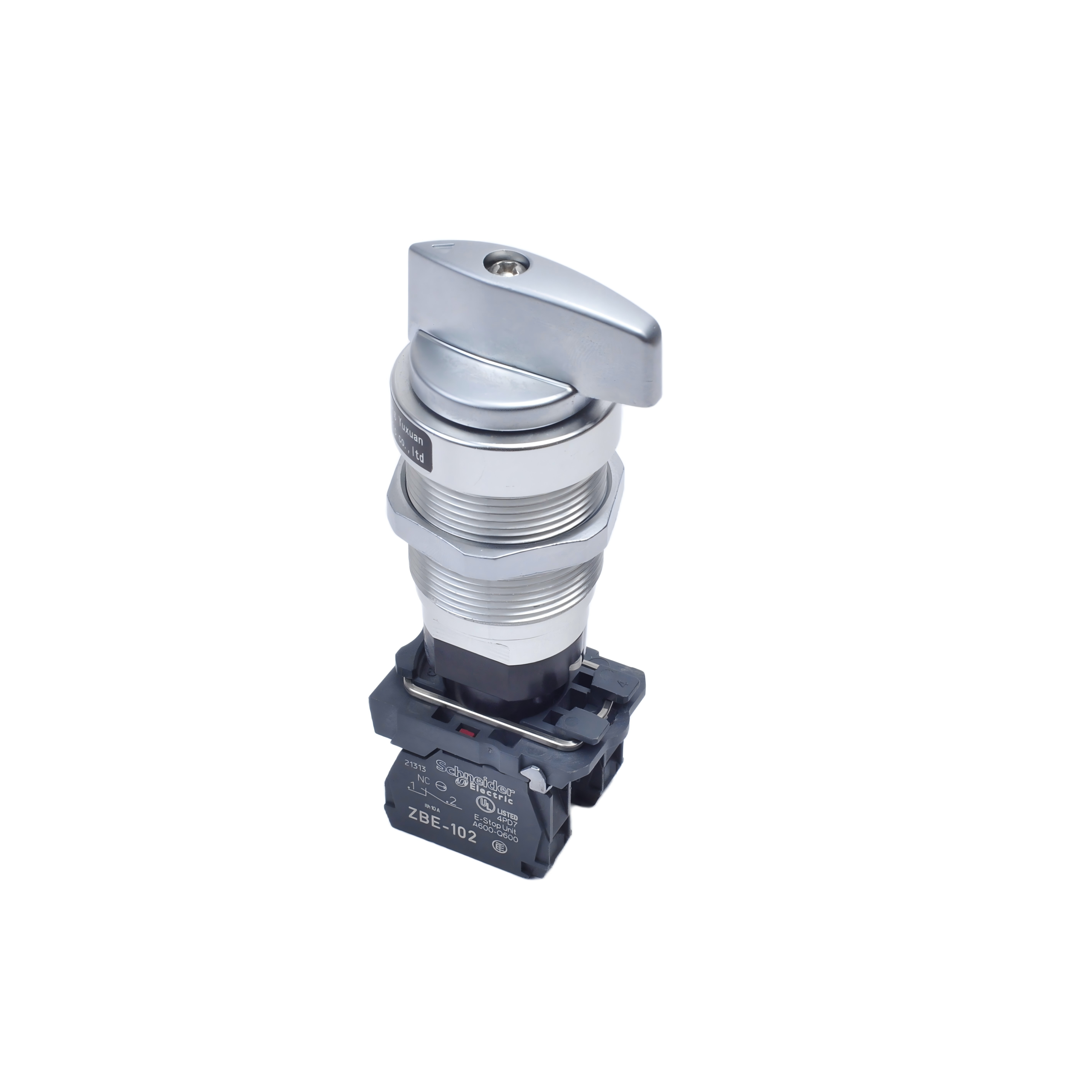

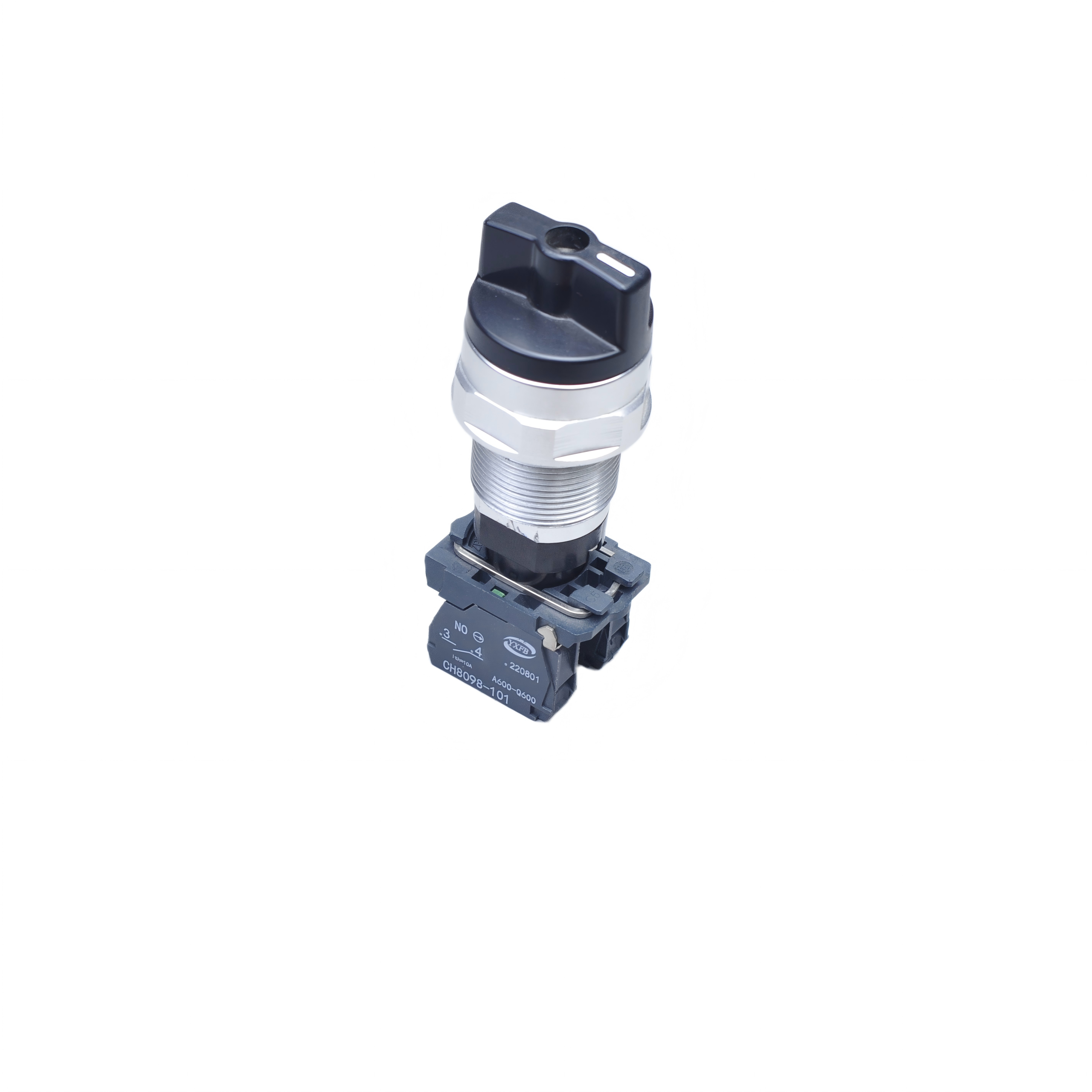

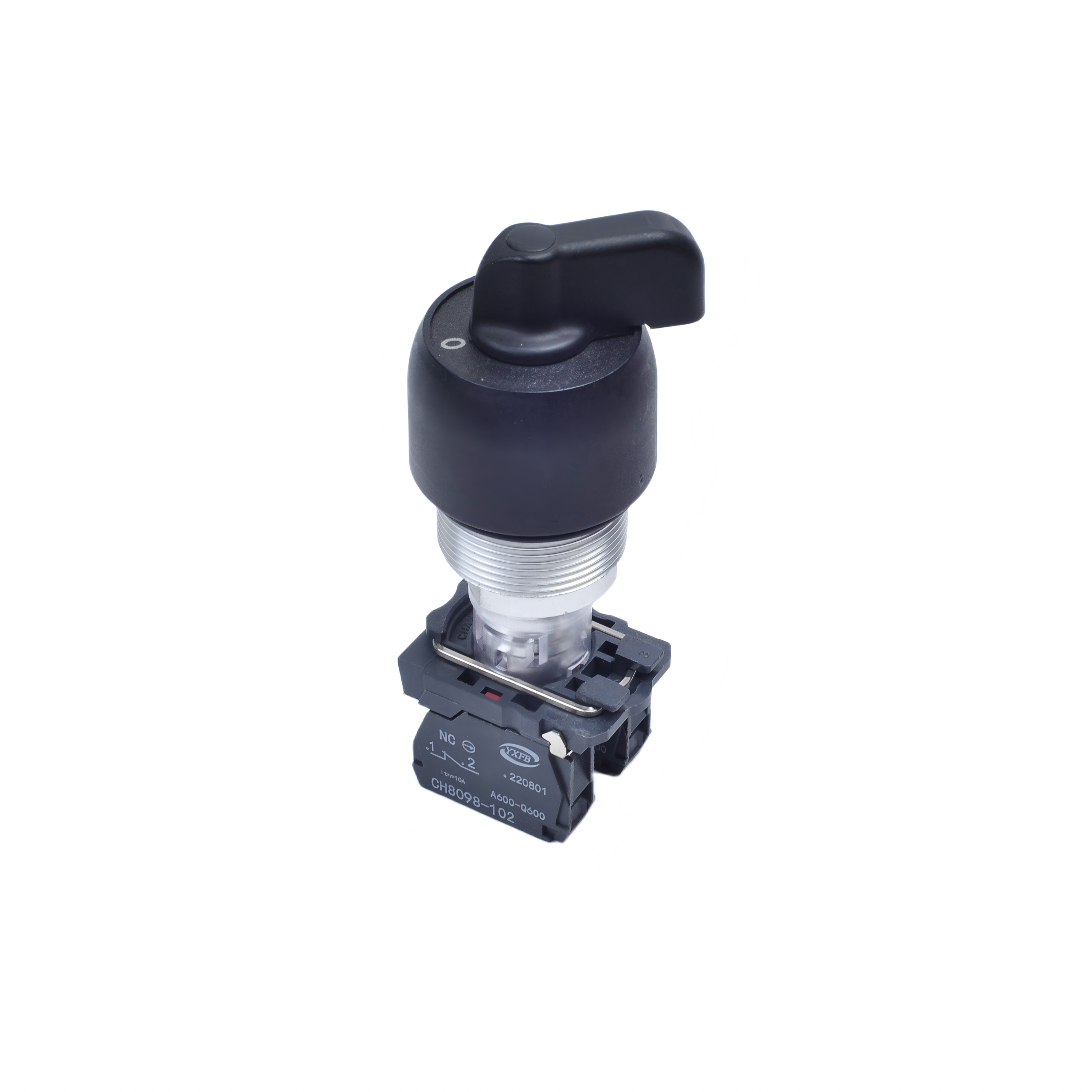

CH8098-K Flameproof Switch
Scope of Application
- Applicable ambient temperature: -40℃ ~ +60℃
- Applicable operating temperature: -40℃ ~ +75℃
- Flameproof thread: M30×1.5
- Suitable for hazardous locations of Zone 1, Zone 2, and/or combustible dust atmospheres of Zone 21, Zone 22;
- Suitable for explosive gas atmospheres of Group IIA, IIB and IIC;
- This product must be used together with a flameproof enclosure and cannot be used independently
