| Technical Parameters | |||||||
| Model / Model Spec | Entry Thread Size(AG) | Cable Outer DiameterB | Optional Cable Outer Diameter B |
Maximum Outer Diameter D |
L1 | L | |
| M | NPT/G | ||||||
| 16 | M16x1.5 | 3/8 | 4~7 | 3~10 | 27 | 59 | 16 |
| 20 | M20x1.5 | 1/2 | 5~13 | 5~14 | 29 | 59 | 16 |
| 25 | M25x1.5 | 3/4 | 8~18 | 6~16 | 33 | 60 | 16 |
| 32 | M32x1.5 | 1 | 12~22 | 10~22 | 42 | 65 | 18 |
| 40 | M40x1.5 | 11/4 | 16~28 | 15~28 | 50 | 75 | 20 |
| 50 | M50x1.5 | 11/2 | 18~33 | 23~36 | 60 | 76 | 20 |
| 63 | M63x1.5 | 2 | 25~45 | 35~48 | 73 | 79 | 20 |
| 75 | M75x1.5 | 21/2 | 29~50 | / | 89 | 114 | 22 |
| 80A | M90x1.5 | 3 | 29~65 | / | 125 | 114 | 22 |
| 90B | M90x1.5 | 4 | 41~80 | / | 132 | 114 | 24 |
| According to customers’ installation requirements, extended AG threads are available.Thread options for inlet body: G, NPT, M. Internal threads for steel conduit wiring can be supplied in G, NPT, M types. Non-standard threads below can be customized. |
|||||||
| M12x1.5、M14x1.5、M18x1.5、M22x1.5、M24x1.5(2)、M27x1.5(2)、M28x1.5(2)、M28x1.5(2)、M30x1.5(2)、M32x1.5(2)、M33x1.5(2)、M35x1.5(2)、 M36x1.5(2)、M37x1.5(2)、M40x2、M42x1.5(2)、M45x1.5(2)、M48x1.5(2)、M50x1.5(2)、M54x1.5(2)、M56x1.5(2)、M60x1.5(2)、M63x1.5(2)、 M64x1.5(2)、M70x1.5(2/3)、M72x1.5(2/3)、M75x1.5(2/3)、M761.5(2/3)、M80x1.5(2/3)、M85x1.5(2/3)、M87x1.5(2/3)、M88x1.5(2/3)、M90x1.5(2/3)、 M95x1.5(2/3)、M100x1.5(2/3)、M115xx2(3)、M120×2(3)、M130x2(3) |
|||||||
All Products, Ex terminal boxes& junction boxes, Exd, Exe components& cable glands& boxes, Flexible Conduits & Cable Glands, Most Popular, Uncategorized

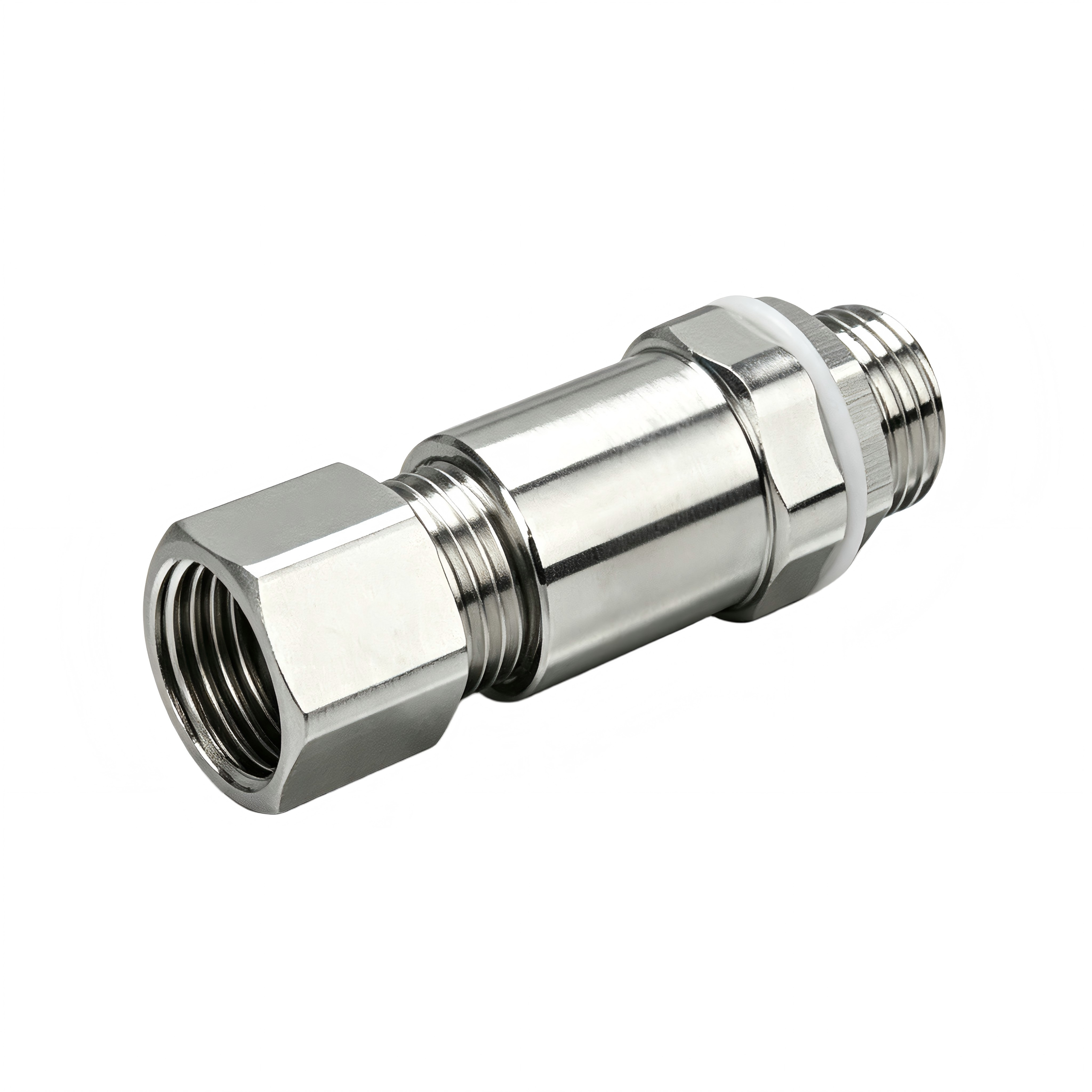

Explosion Proof Cable Gland BDM-10B
Product Features
- Made of high-quality brass or stainless steel.
- Sealing material: Silicone rubber, Neoprene rubber
- Explosion-proof mark: Ex db IIC Gb / Ex eb IIC Gb / Ex tb IIIC Db
- Adopts mechanical cable clamping device
- Flame retardant rating: V0 (UL94)
- Ingress protection grade: IP66 / IP67 / IP68
- Ambient temperature: -40℃ ~ +100℃
- Application locations: Zone 1, Zone 2 for IIA-IIC explosive gas atmospheres; Zone 21, Zone 22 combustible dust locations.
- Widely used for electrical cable entry in petroleum, chemical, warehouse, food, pharmaceutical, military and other industries.
