HPA LED Explosion Proof Light . PT DIPOERO DJAJA ABADIE
HPA is described as a modular LED luminaire family with separate light-source, power-supply and terminal chambers. The published source lists several module-count configurations and a mounting bracket; the complete fixture arrangement and lighting requirements need model-specific confirmation.
- Listed light source
- LED modules
- Listed construction
- Separate source, supply and terminal chambers
- Listed support
- Mounting bracket
- Listed configuration basis
- Multiple module-count variants
Confirm the complete cable-entry arrangement
All Products, Ex floodlight fittings, Ex light fittings, Most Popular
The source requires certified cable glands or blanking plugs matched to the luminaire. Confirm the permitted entry components and required approvals against the current complete-model instructions and documents before ordering.
Product overview
HPA is described as a modular LED luminaire family with separate light-source, power-supply and terminal chambers. The published source lists several module-count configurations and a mounting bracket; the complete fixture arrangement and lighting requirements need model-specific confirmation.
Use the full model and the selected configuration when requesting drawings or comparing specifications. Published options are not a stock indication or a guarantee that every combination is available.
Request model-specific documentsWhat to specify
- Required fixture configuration and module count
- Lighting layout, colour preference and target area
- Mounting bracket and available-space requirements
- Complete model reference and entry arrangement
Technical specifications
Reference data from the existing product record, reorganised for readability. Values and protection claims require confirmation against the current complete-model datasheet and applicable documents.
| Product name | HPA Explosion-proof Light Specification |

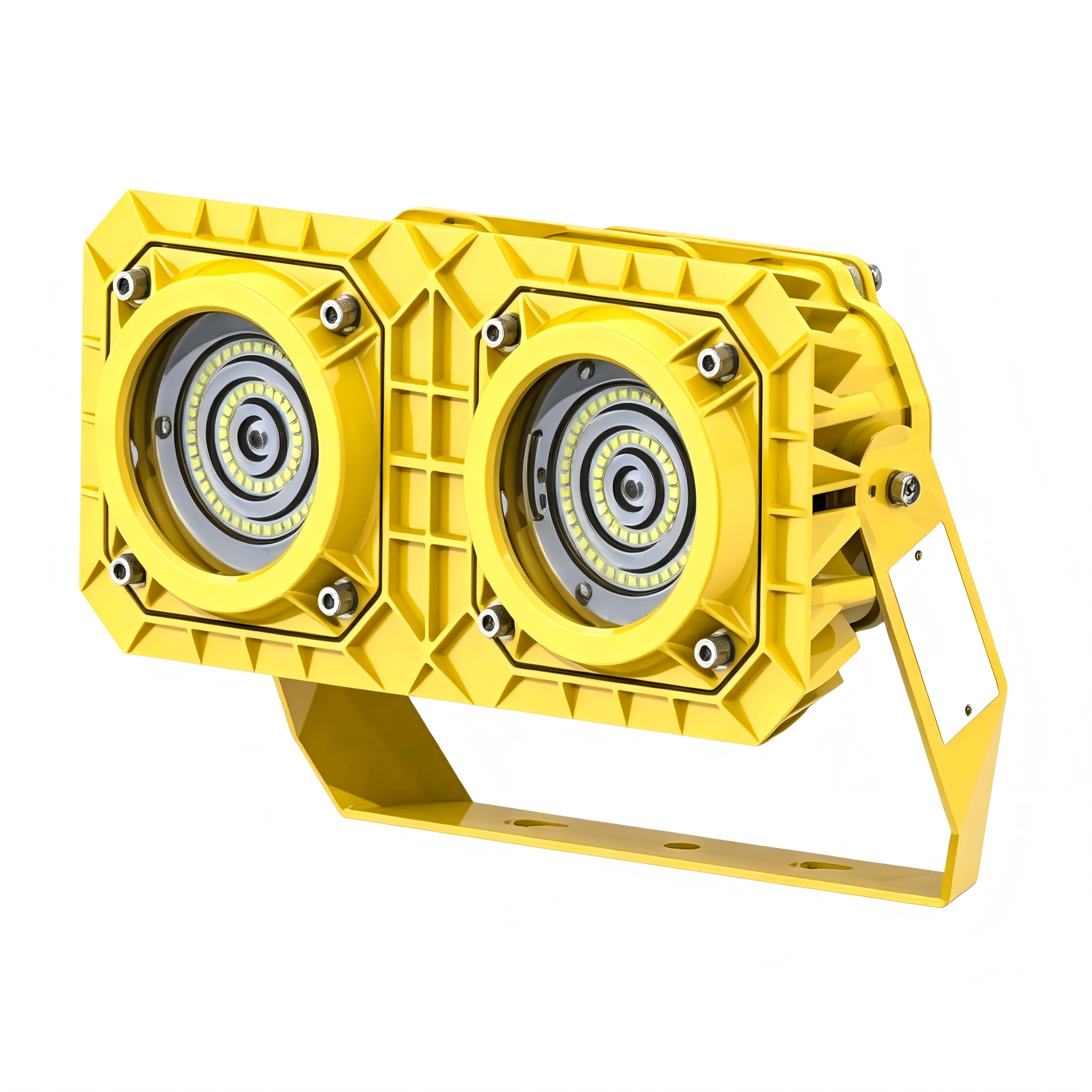

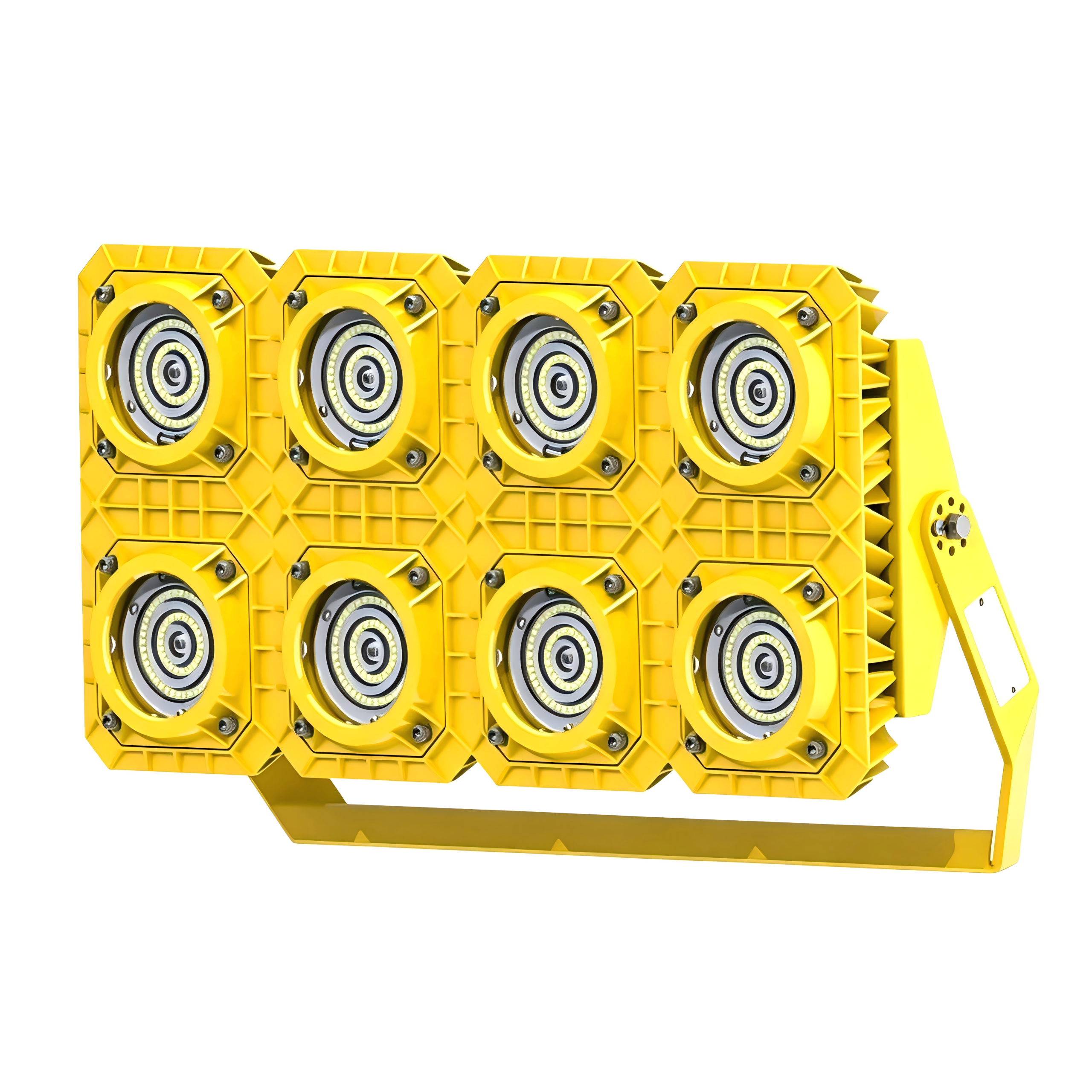

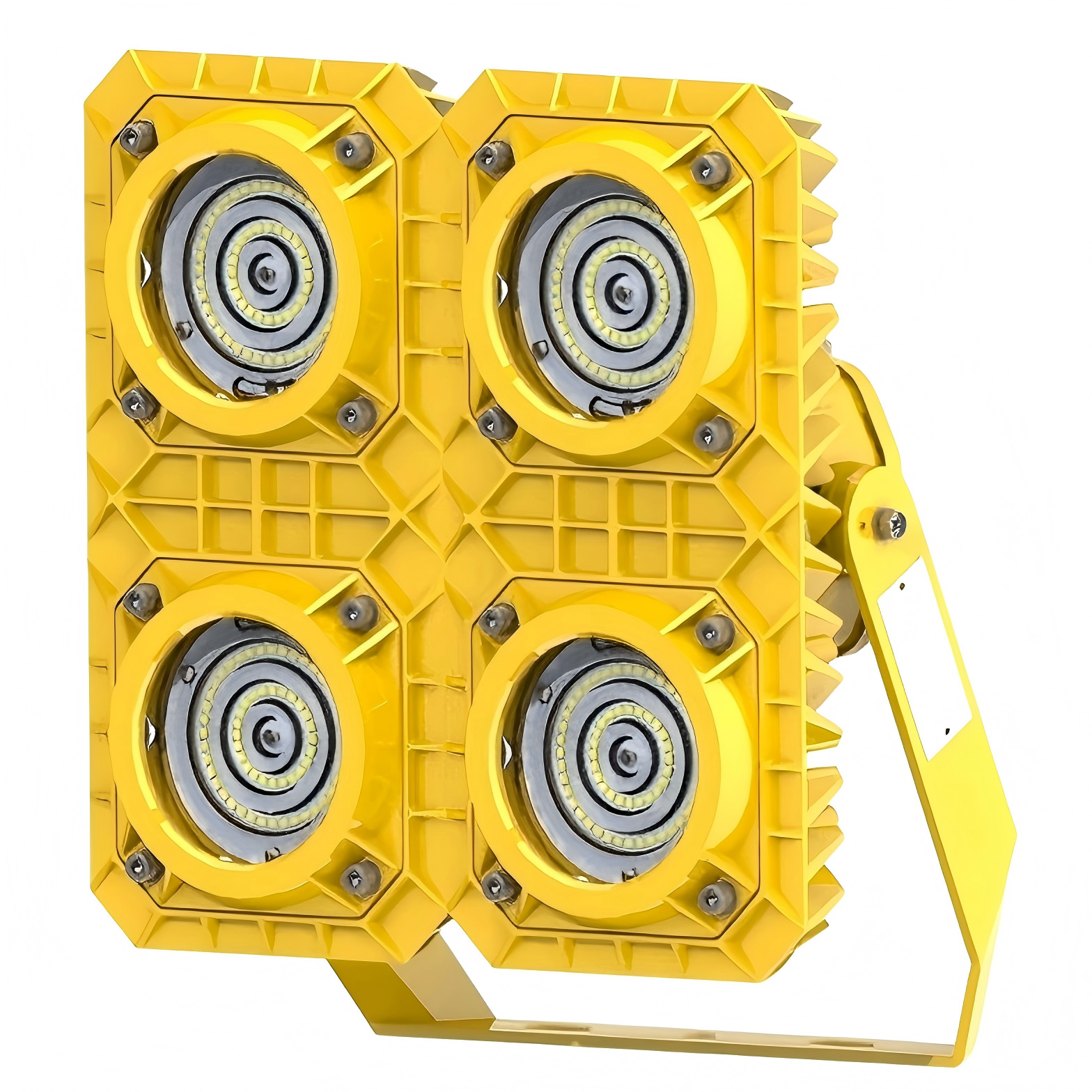

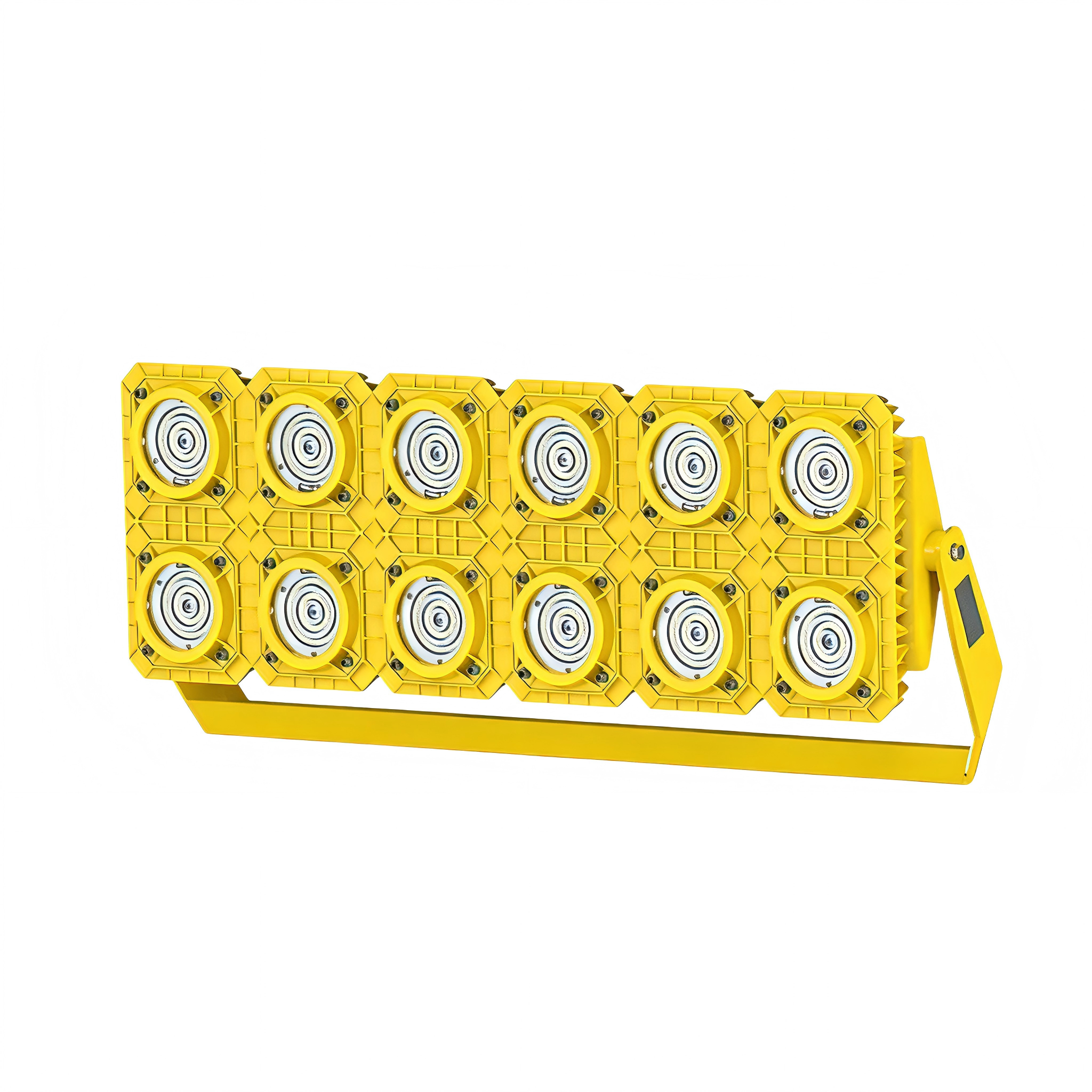

| Power | M1=1Module 40=40W，50=50W，60=60W,75=75W,80=80W,100=100W M2=2Module 120=120W，130=130W,150=150W,160=160W,180=180W,200=200W M4=4Module 250=250W，280=280W，300=300W,350=350W,380=380W,400=400W M6=6Module 450=450W，480=480W，500=500W,550=550W,580=580W,600=600W |
| Voltage | AC110-277 V 50/60 Hz |
| PF | ≥0.9 |
| CCT | 3000K / 4000K / 5000K / 6000 K |
| Luminous efficiency | Ex LED Module efficiency Ex LED Module efficiency≥ 170LM/W Light fixture luminous efficiency Light fixture Luminous efficiency ≥120LM/W |
| Ra | ＞80 |
| Corrosion-proof | WF1 / WF2 |
| Protection level | IP66 |
| Ex Marking | Power：40W~300W Ex db eb mb IIC T6 Gb/ Ex tb IIIC T80℃ Db，-40℃~+40℃ Ex db eb mb IIC T5 Gb/ Ex tb IIIC T95℃ Db，-40℃~+55℃ |
| Power：350W~600W Ex db eb mb IIC T5 Gb/ Ex tb IIIC T95℃ Db，-40℃~+40℃ Ex db eb mb IIC T4 Gb/ Ex tb IIIC T130℃ Db，-40℃~+55℃ | |
| Temperature | -40℃~+40℃/+55℃ |
| Cable outer diameter | M20x1.5引入口cable entrie (6-12mm) M20x1.5引入口cable entrie (10-14mm) M25x1.5引入口cable entrie (13-18mm) |
Source: existing published product record, captured 17 October 2026. This summary is not independent certification evidence. Unknown or inconsistent details must be confirmed before selection.
Documents & dimensions
Request the current datasheet, dimension drawings and applicable certification documents for your exact configuration. A product description or catalogue is not a certificate.
Request DocumentsHPA selection questions
How is the HPA luminaire structure described?
The source separates the light-source, power-supply and terminal chambers.
Does HPA identify one fixed fixture size?
No. Several module-count configurations are listed; request the selected assembly drawing.
What mounting component is mentioned?
A mounting bracket is described, with exact dimensions requiring confirmation.
Can module efficacy be treated as fixture performance?
No. The source distinguishes module and fixture figures; request a complete luminaire report.
Which documents are needed for HPA?
Request the exact model's drawing, current specification and applicable supporting documents.
What is needed for a quotation?
Send reference 2564, quantity, the selection details above and delivery destination.
