Technical Data
1.Explosion-proof Type
- Standards Implemented: GB/T3836.1, GB/T3836.2, GB/T3836.31; IEC60079-0, IEC60079-1, IEC60079-7, IEC60079-18, IEC60079-31
- Applicable Hazardous Areas: Zone 1, Zone 2 for explosive gas atmospheres; Zone 21, Zone 22 for combustible dust atmospheres Suitable for explosive gas atmospheres of Group ⅡA, ⅡB, ⅡC, temperature class T1～T6
- Ex Marking: Gas protection: Ex db eb ⅡC T4/T5/T6 Gb Dust protection: Ex tb ⅢC T80℃/T95℃/T130℃ Db
2.Product Parameters
| Product Model | I | Ⅱ | Ⅲ |
| Executive Standard / Applicable Standard |
GB/T3836.1 GB/T3836.2 GB/T3836.3 GB/T3836.9 GB/T3836.31
IEC60079-0 IEC60079-1 IEC60079-7 IEC60079-18 IEC60079-31 |
||
| Rated Power | 50-100W | 110-200W | 210-300W |
| Rated Voltage | AC220V DC220V AC36V ADC36V AC24V DC24V | ||
| Explosion-proof Marking | -40℃~+40℃ Ex db eb mb I CT4/T5/T6 Gb Ex tbⅢCT130℃/T95℃/T80℃ Db | ||
| Protection Rating | IP66 | ||
| Anti-corrosion Grade | WF1 WF2(Customized) | ||
| Cable Entry Device | G3/4cable outer diameter 8-14mm | ||
| Luminous Efficiency | ≥130lm/W | ||
| Beam Angle | 105° | II(105°90°) | III(105°60°) |

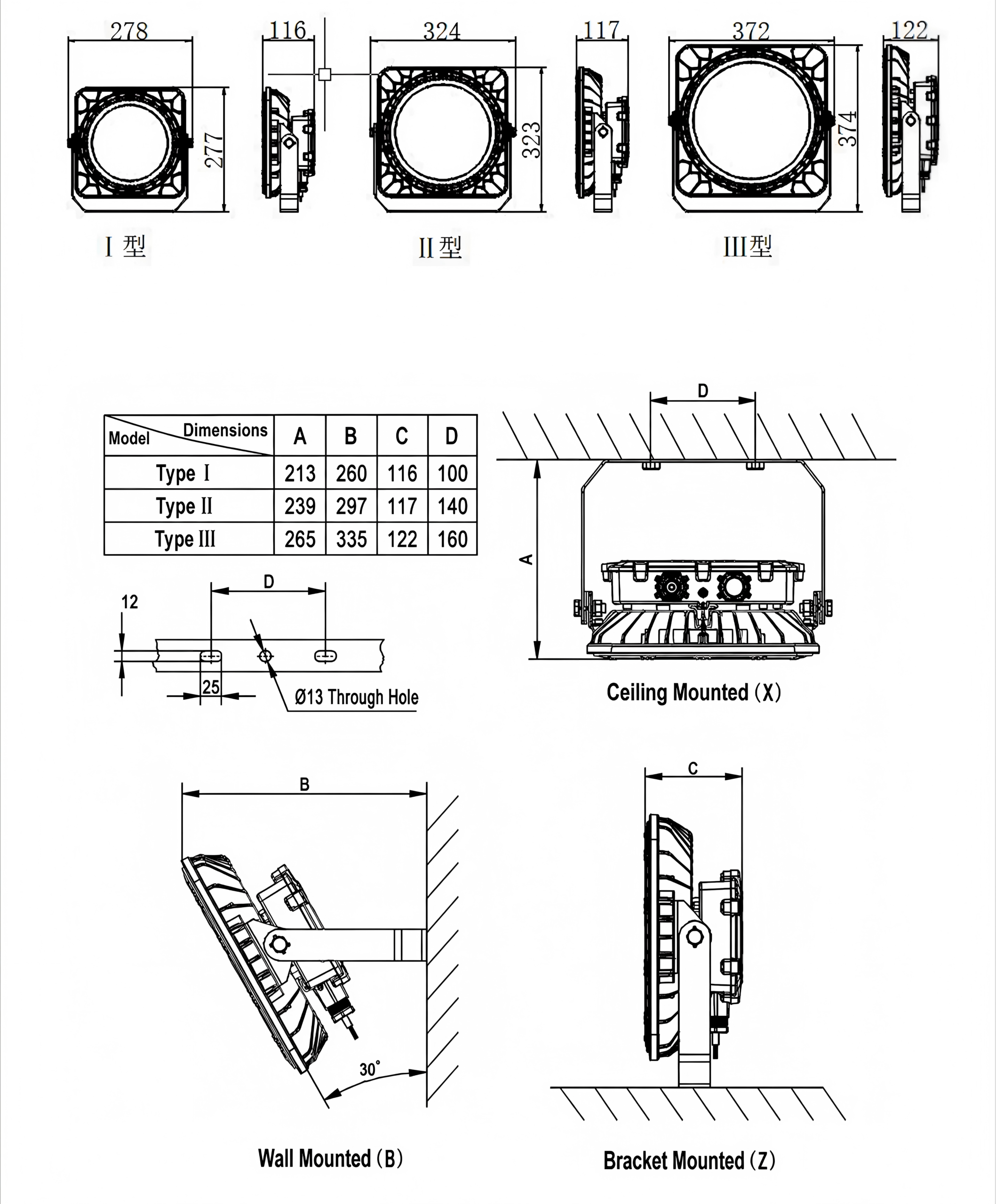

| Installation Method | Bracket-mounted(Z) | ||
| Weight | 4.84Kg | 5.6Kg | 8.9Kg |
3.Product Classification & Origin
HS Code: 940542
Country of Origin: China
4.Applicable Industries
- Widely used for general‑purpose lighting in hazardous environments such as oil extraction, oil refining, chemical industry, military industry, electric power and metallurgy.
- Suitable for sites with corrosive gas, humidity and high protection requirements.
- Suitable for Zone 1 and Zone 2 hazardous areas with explosive gas atmosphere.
- Suitable for Zone 21 and Zone 22 hazardous areas with combustible dust atmosphere.
- Suitable for explosive gas atmospheres of Group ⅡA, ⅡB and ⅡC.
- Suitable for temperature classes T1‑T6.
5.Credibility
MMAIATEX explosion-proof luminaires comply with the strictest international standards and hold complete ATEX, IECEx and EAC certifications to ensure compliant operation in global markets. Our lighting fixtures are engineered for extreme environments with an IP65/IP66/IP67 protection rating, delivering full resistance to water, dust and corrosion. We work closely with customers through comprehensive technical support, comprehensive warranty service and worldwide logistics. Wherever you operate, MMAIATEX ensures smooth project delivery and provides safe and reliable lighting solutions for hazardous areas.
MMAIATEX Explosion Proof Lighting: Designed for global compliance and reliability.
6.FAQs
Q1: Is the MAMBD8117 explosion-proof LED light suitable for outdoor use?
A1: Yes. It has an IP66 protection rating with anti-UV & anti-corrosion performance, capable of withstanding harsh outdoor conditions such as rain, snow and dust.
Q2: Do you support customization for different voltage specifications?
A2: Yes, voltage customization is available. Optional voltages include AC220V, DC220V, AC36V, ADC36V, AC24V, DC24V and more.
Q3: What mounting methods are available for this light?
A3: Multiple installation options are provided: ceiling mounted, flange mounted, guardrail mounted, pendant mounted, bracket mounted, 30° wall mounted and 90° wall mounted.
