BA8097 Explosion Proof Push Button

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas: Zone 1, Zone 2 (hazardous gas areas); Zone 21, Zone 22 (combustible dust areas)
• Ex Marking: Gas protection: IIC for gas；Ex db eb IIC Gb，IIIC for dust；Ex tb IIIC Db

2.Product Parameters

• Product Type: BA8097 Explosion-proof Push-button, Switch Module + Operating Head
• Certification: Explosion-proof marking Ex db eb IIC Gb, Ex tb IIIC Db
• Material: Housing is injection-molded from custom-made engineering plastics
• Exposed Fasteners: No relevant information marked in the datasheet

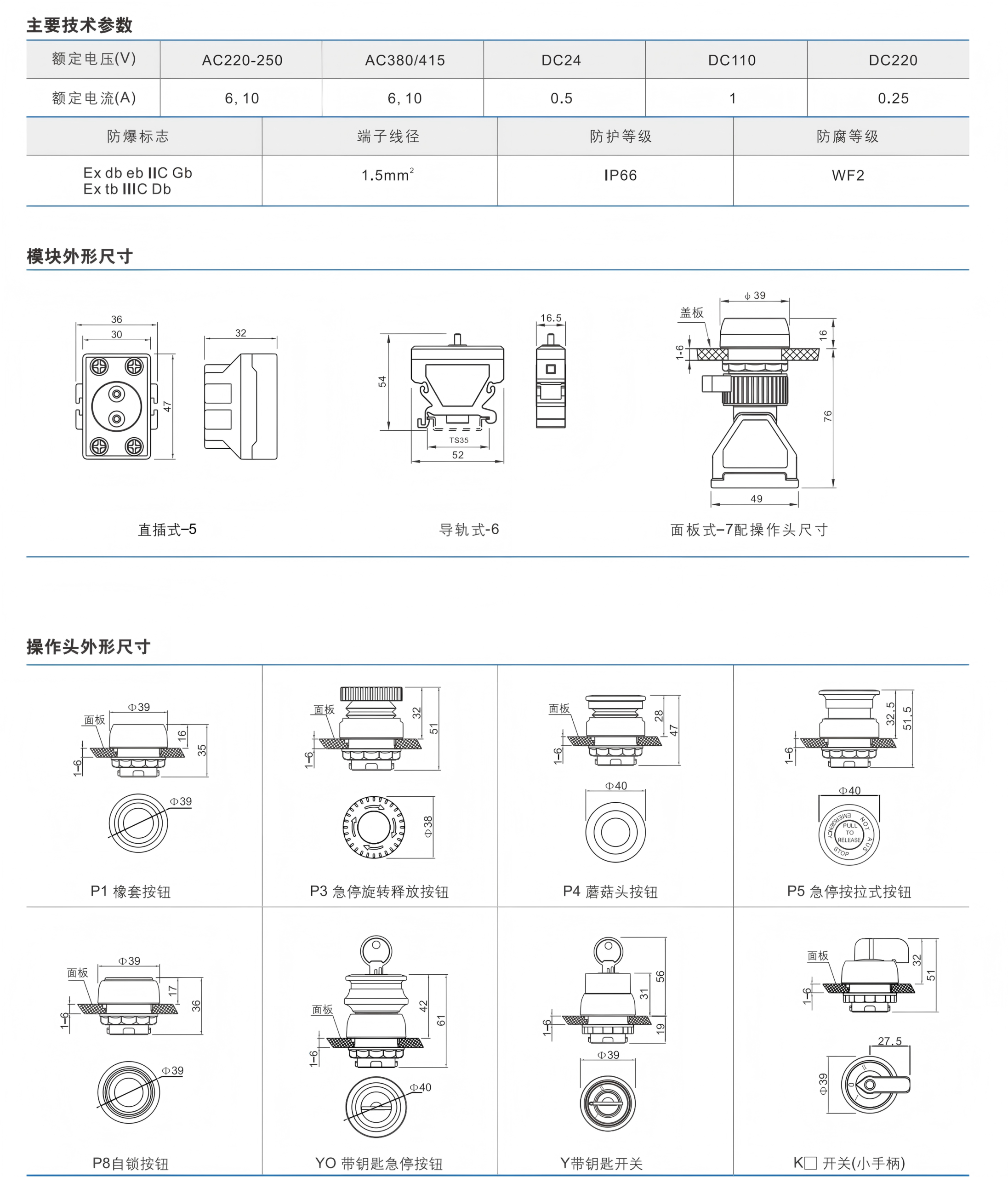

• Electrical Specifications-+Rated Voltage: AC220-250V, AC380/415V, DC24V, DC110V, DC220V
• Electrical Specifications-Rated Current: AC220-250V: 6A,10A; AC380/415V: 6A,10A; DC24V: 0.5A; DC110V: 1A; DC220V: 0.25A
• Protection-Ingress Protection Rating: IP66
• Ambient Temperature: -40℃ ~ +60℃
• Connection & Input-Cable Cross-section (Terminal Wire Gauge): 1.5 mm²

3.Product Classification & Origin

HS Code: 8536500000
Country of Origin: China

4.Applicable Industries

• Applicable for: Suitable for petroleum, chemical, pharmaceutical, storage and other industries with explosive gas and combustible dust hazardous working conditions.
• Practicality: It supports multiple installation types with simple structure for fast installation and maintenance.
• Safety performance: It has qualified explosion-proof, protection and anti-corrosion grades to meet safety requirements for hazardous areas.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1: What is the protection grade of BA8097 explosion-proof push-button module?

A1: Its protection grade is IP66.



Q2: Can the BA8097 explosion-proof push-button be used alone in explosive gas atmospheres?

A2: No. It must be matched with increased-safety enclosure and cannot be used alone in explosive gas atmospheres.

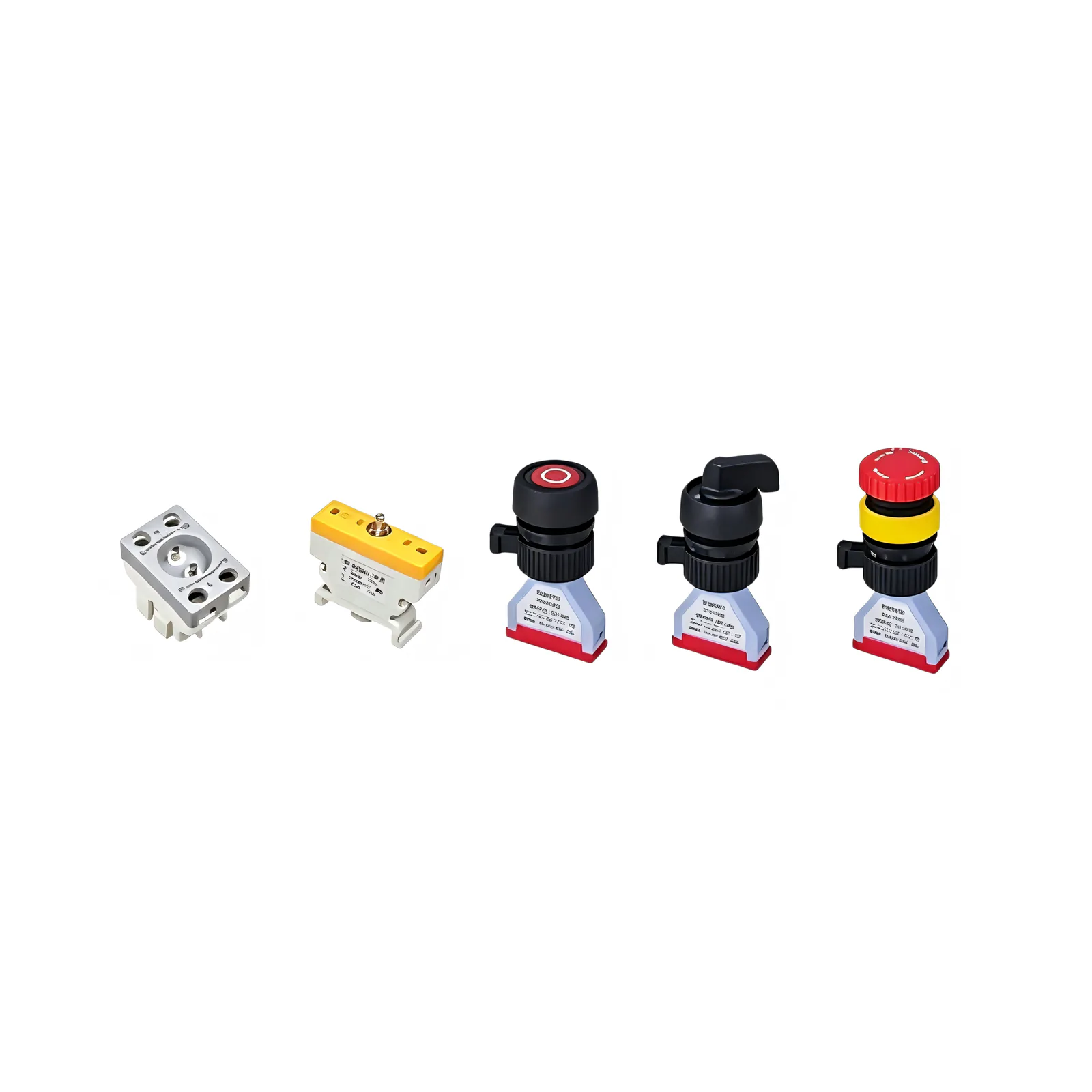

Q3: What installation types are available for BA8097 push-button modules?

A3: Three installation types are optional: plug-in type-5, DIN-rail mount type-6 and panel mount type-7.
