CH0801-K Explosion Proof Switch Mod Oper Head

Main Technical Data
  • Explosion-proof Mark: Ex db eb IIC Gb, Ex td IIIC Db
  • Application Scope: Zone 1, Zone 2 explosive gas atmospheres, and/or Zone 21, Zone 22 combustible dust hazardous areas
  • Ambient Temperature Range: -40℃~+60℃
  • Operating Temperature Range: -40℃~+75℃
  • Ingress Protection Rating: Module IP20, Operating Head IP66
  • Terminal Specification: 2×2.5mm²
  • Mechanical Service Life: 1,000,000 operations
  • Electrical Parameters: 400VAC/16A, 110VDC/1A

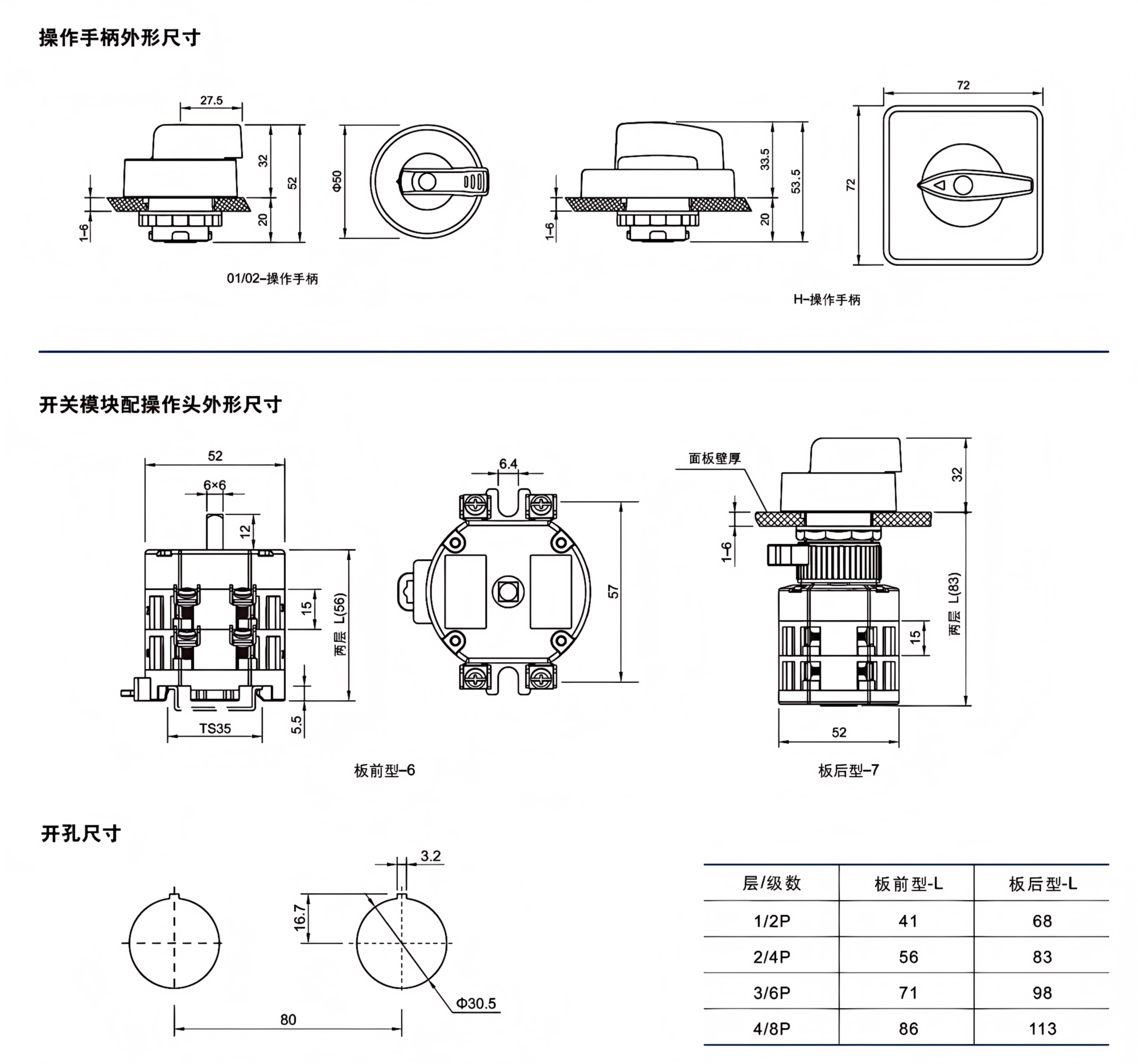

  • Front Panel DIN Rail Mounting: Fixed on TS35×7.5 DIN rail or base plate with M6 screws
  • Rear Panel Mounting: Installed on panels with thickness of 1–6 mm
Categories: , ,
Guaranteed Safe Checkout
Product Features
  1. The housing is injection-molded with customized engineering plastic, featuring high strength and excellent corrosion resistance.

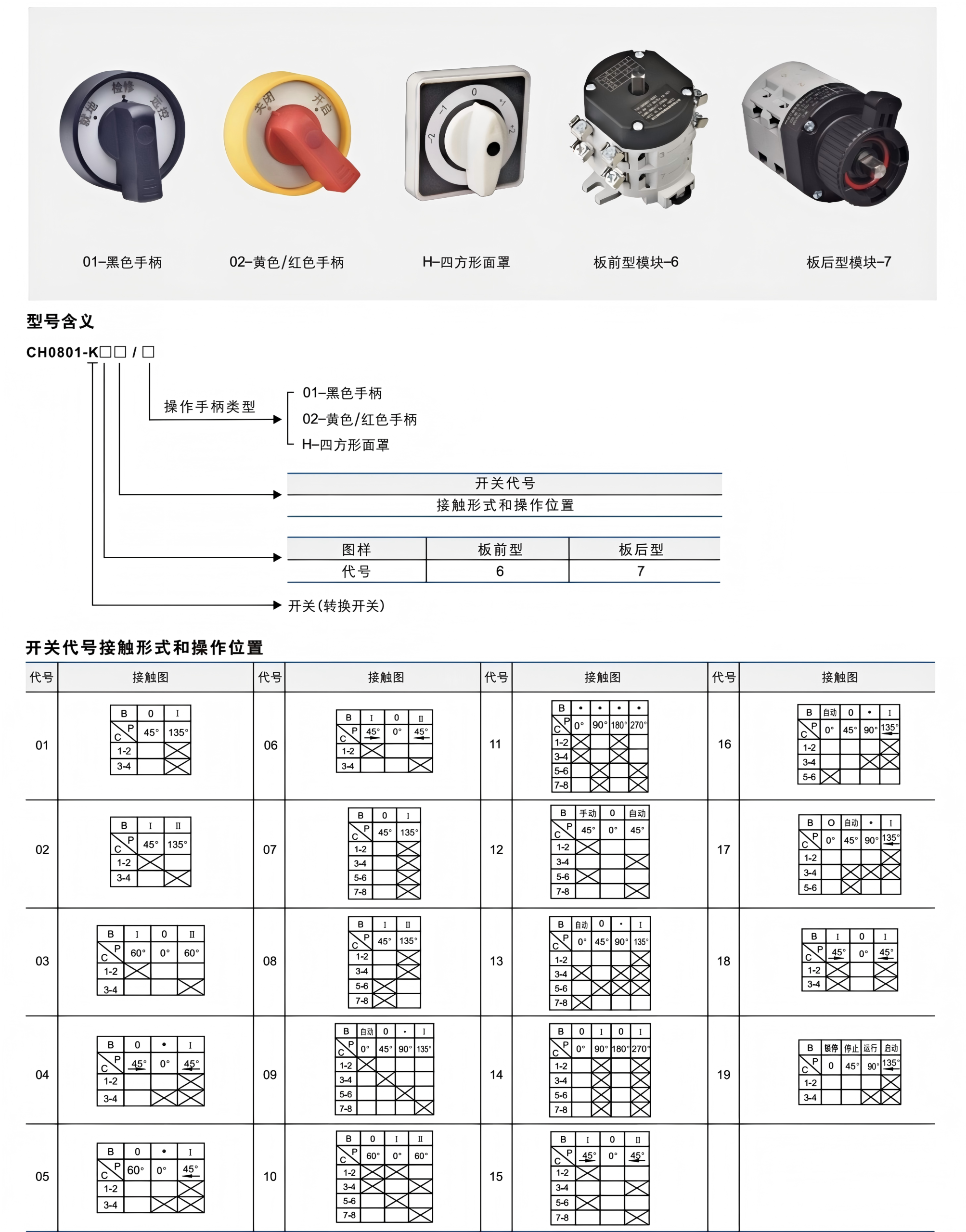

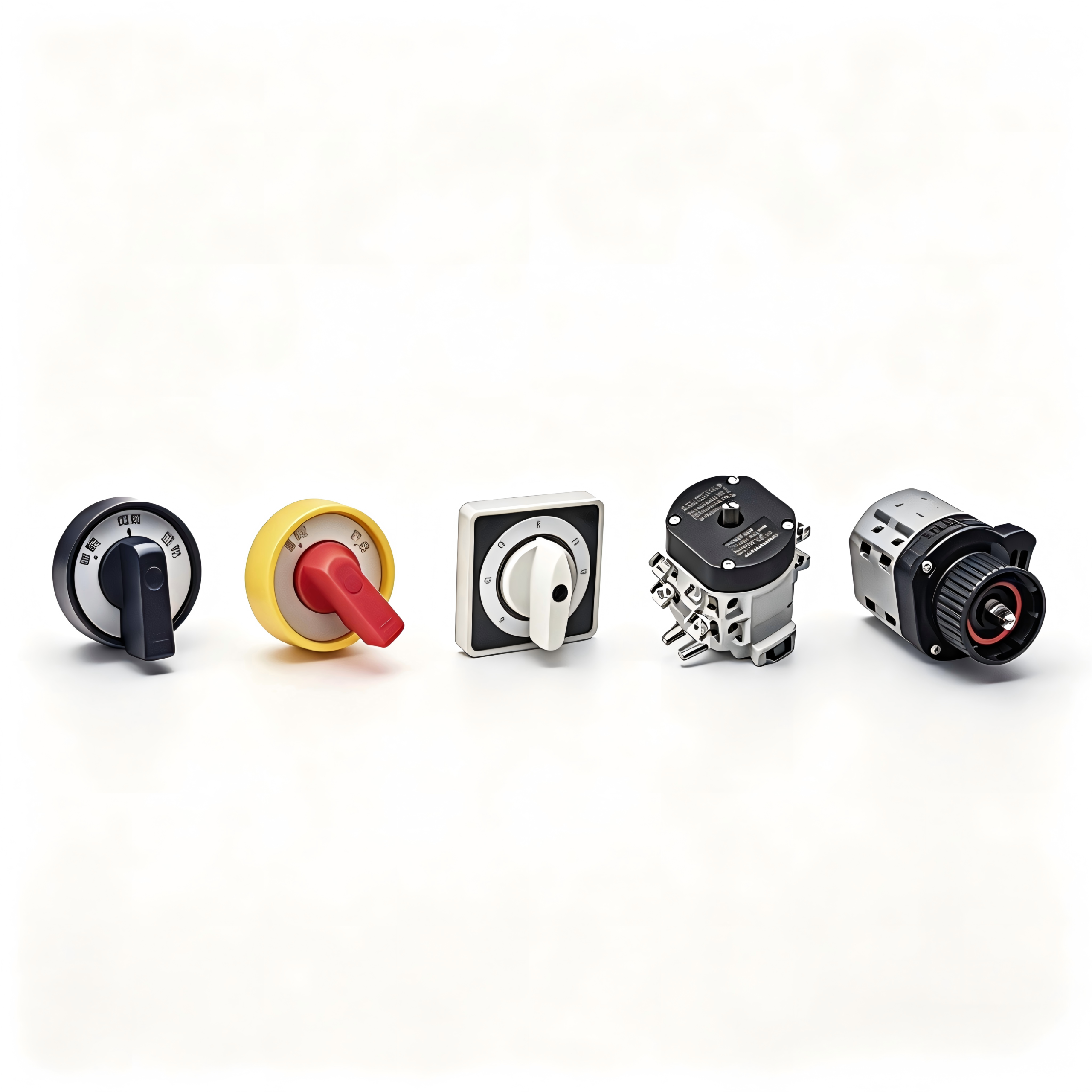

  2. The switch adopts a modular structure with each pair of contacts independent. It can be assembled into hundreds of electrical contact configurations to meet diverse user requirements.
  3. The switch shall be used together with an increased safety enclosure; it cannot be applied separately in explosive gas atmospheres.
