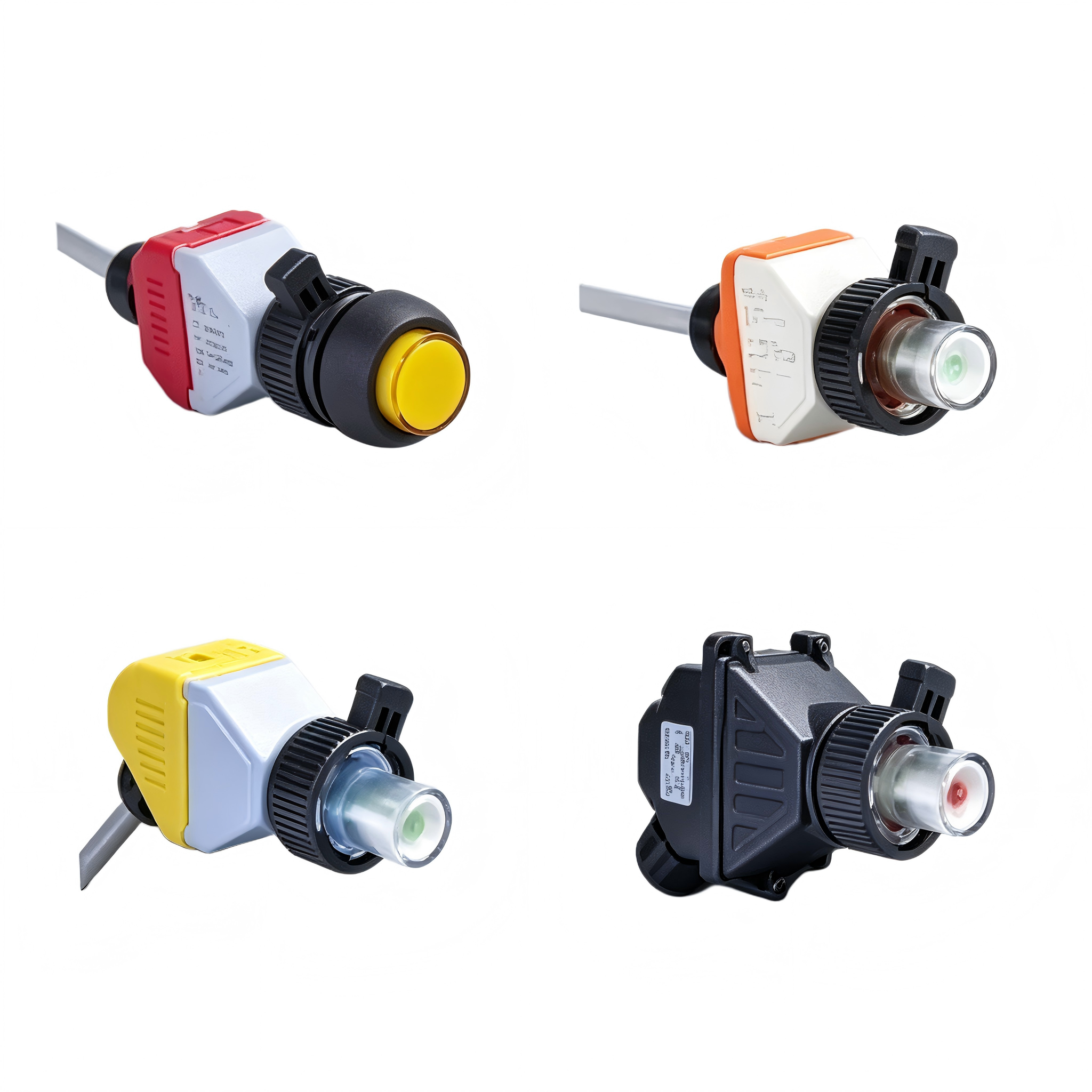

CH0802-8 Panel Mount Explosion Proof Signal Light Module

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas: Suitable for Zone 1, Zone 2, Zone 21 and Zone 22
• Ex Marking: Gas protection: Ex db eb IIC T6 Gb / Ex tb IIIC T80℃ Db

2.Product Parameters

• Product Type: Panel-mounted explosion-proof signal lamp module + lamp cover
• Certification: Ex db eb IIC T6 Gb / Ex tb IIIC T80℃ Db
• Material: Housing injection-molded from custom-engineered plastic; transparent cover injection-molded from polycarbonate
• Exposed Fasteners: Not specified in datasheet

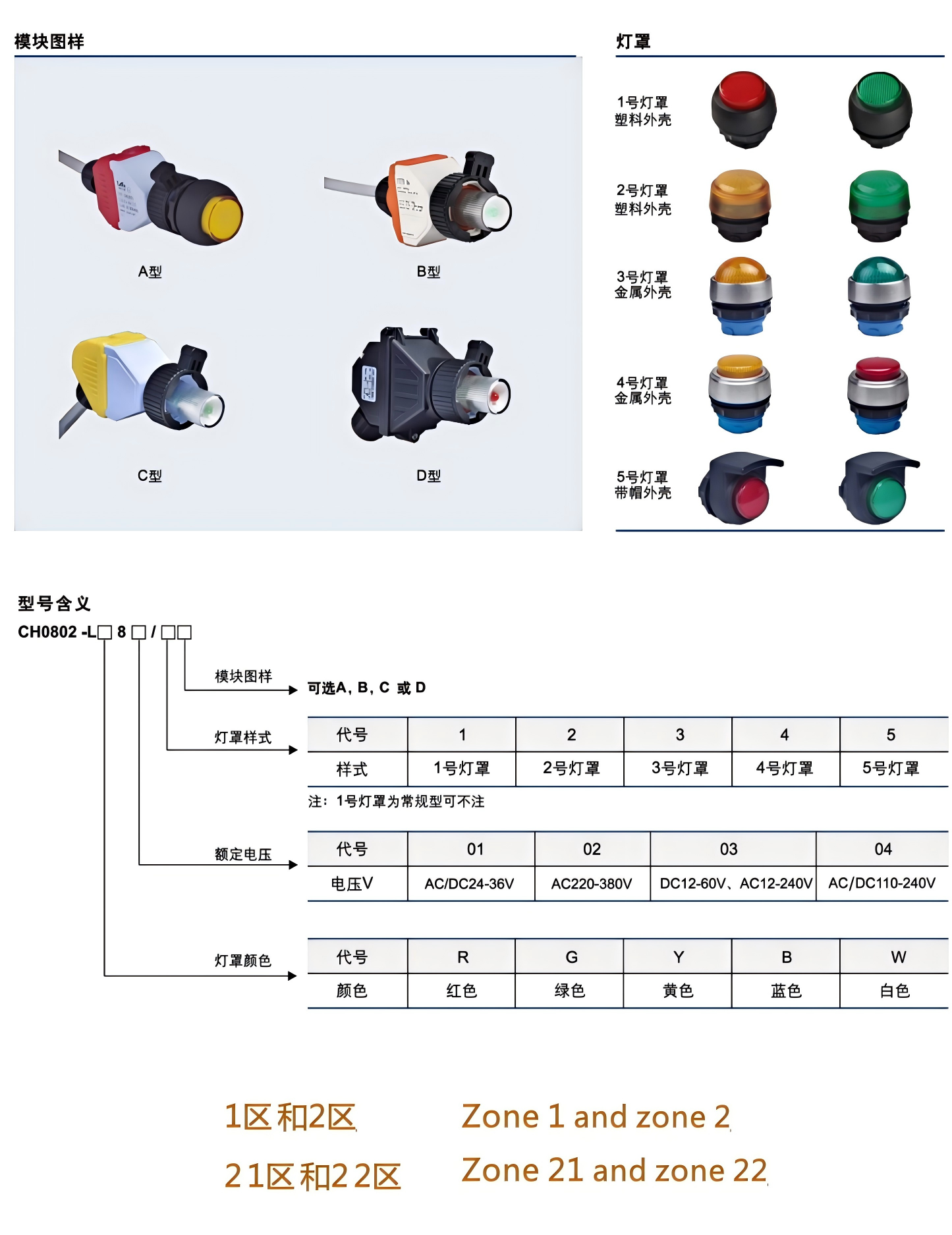

• Electrical-Rated Voltage: AC/DC24-36V; AC220-380V; DC12-60V, AC12-240V; AC/DC110-240V (multiple voltage options)
• Electrical-Rated Current: Not specified; max. power consumption Pmax ≤1W
• Protection-Ingress Protection: IP66 for rear-cable type (with operating head)
• Protection-Ambient Temperature: -40℃ ~ +60℃; Operating temperature: -40℃ ~ +75℃
• Connection-Cable Cross-section: 2×1.5 mm²
• Connection-Cable Entry: Not specified in datasheet
• Connection-Cable Gland: Not specified in datasheet

3.Product Classification & Origin

HS Code:8531809000
Country of Origin: China

4.Applicable Industries

• Suitable for petroleum, chemical, pharmaceutical, coal-chemical and other hazardous explosive-gas environments.
• With strong practicality, this panel-mounted explosion-proof signal lamp is used for on-site status indication, warning and signal feedback.
• It provides reliable safety performance for equipment working in explosion-risk areas.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1：What is the explosion-proof marking of CH0802-8 signal lamp module?

A1：Its explosion-proof marking is Ex db eb IIC T6 Gb / Ex tb IIIC T80℃ Db.



Q2：What is the cable cross-section for rear-cable type CH0802-8?

A2：The cable cross-section is 2×1.5 mm², and standard cable length is 3 meters.



Q3：What is the service life of the LED light source for this explosion-proof signal lamp?

A3：The LED light source features ultra-long service life ≥60,000 hours.
