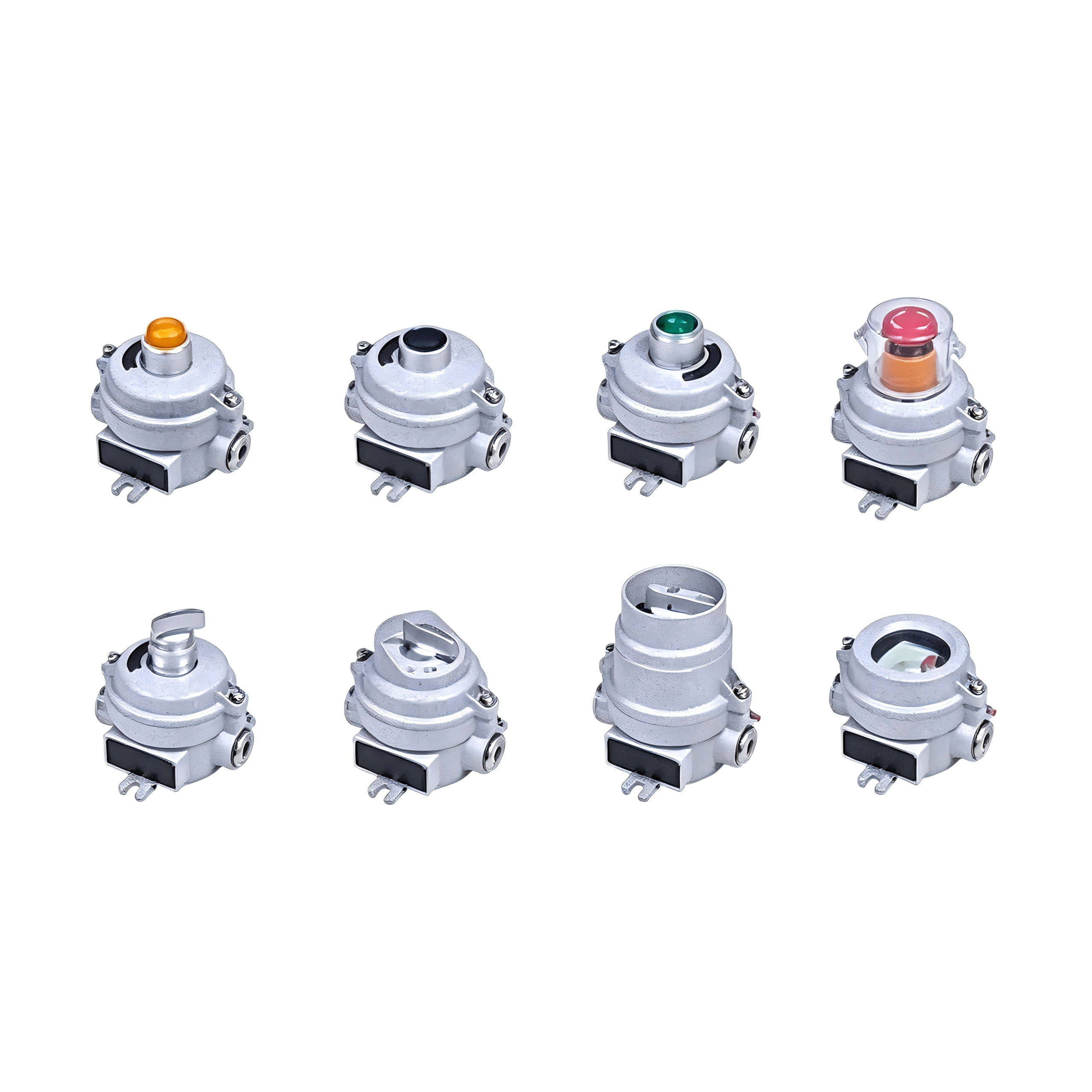

CH0807 Flameproof Explosion Controller

Technical Data

1.Explosion-proof Type

• Standards Implemented: IEC 60079 series, EN 60079 series, GB/T 3836 series
• Applicable Hazardous Areas: Gas Zone 1/2; Dust Zone 21/22Ex
• Marking: Gas protection: Ex db IIC T6 Gb, Ex tb IIIC T80°C Db

2.Product Parameters

• Product Type: Flameproof explosion-proof controller
• Certification: Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db
• Material: Aluminum alloy die-cast housing, high-voltage electrostatic powder-sprayed surface
• Exposed Fasteners: Stainless steel exposed fasteners
• Electrical Ratings
• Rated Voltage: AC240/415/690V, DC220V
• Rated Current: 10A
• Protection
• Protection Degree: IP66
• Ambient Temperature: -40℃ ~ +60℃
• Connection & Inlet
• Cable Cross-section: Φ5.5-Φ12.5 mm; Φ9-Φ14 mm
• Cable Entry Thread: M20×1.5, M25×1.5; NPT1/2, NPT3/4
• Cable Gland: Cable sealing gland (specification to be specified)

3.Product Classification & Origin

HS Code: 8537109090
Country of Origin: China

4.Applicable Industries

• Zone 1 & Zone 2 IIA-IIB explosive gas atmospheres, and/or Zone 21 & Zone 22 combustible dust areas;
• Temperature class: T1-T6;
• Indoor and outdoor installation, IP66 protection rating;
• Suitable for hazardous locations such as chemical plants, refineries, onshore oil extraction, offshore oil platforms, cruise ships, military industries, etc.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1: What hazardous areas is CH0807 flameproof explosion-proof controller suitable for?

A1: It applies to Zone1, Zone2 IIA-IIB explosive gas atmosphere and/or Zone21, Zone22 combustible dust atmosphere.



Q2: What is the explosion-proof marking of CH0807 controller?

A2: Its explosion-proof marking is Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db.



Q3: What is the protection degree of CH0807 flameproof controller?

A3: It reaches IP66 for indoor and outdoor installation.
