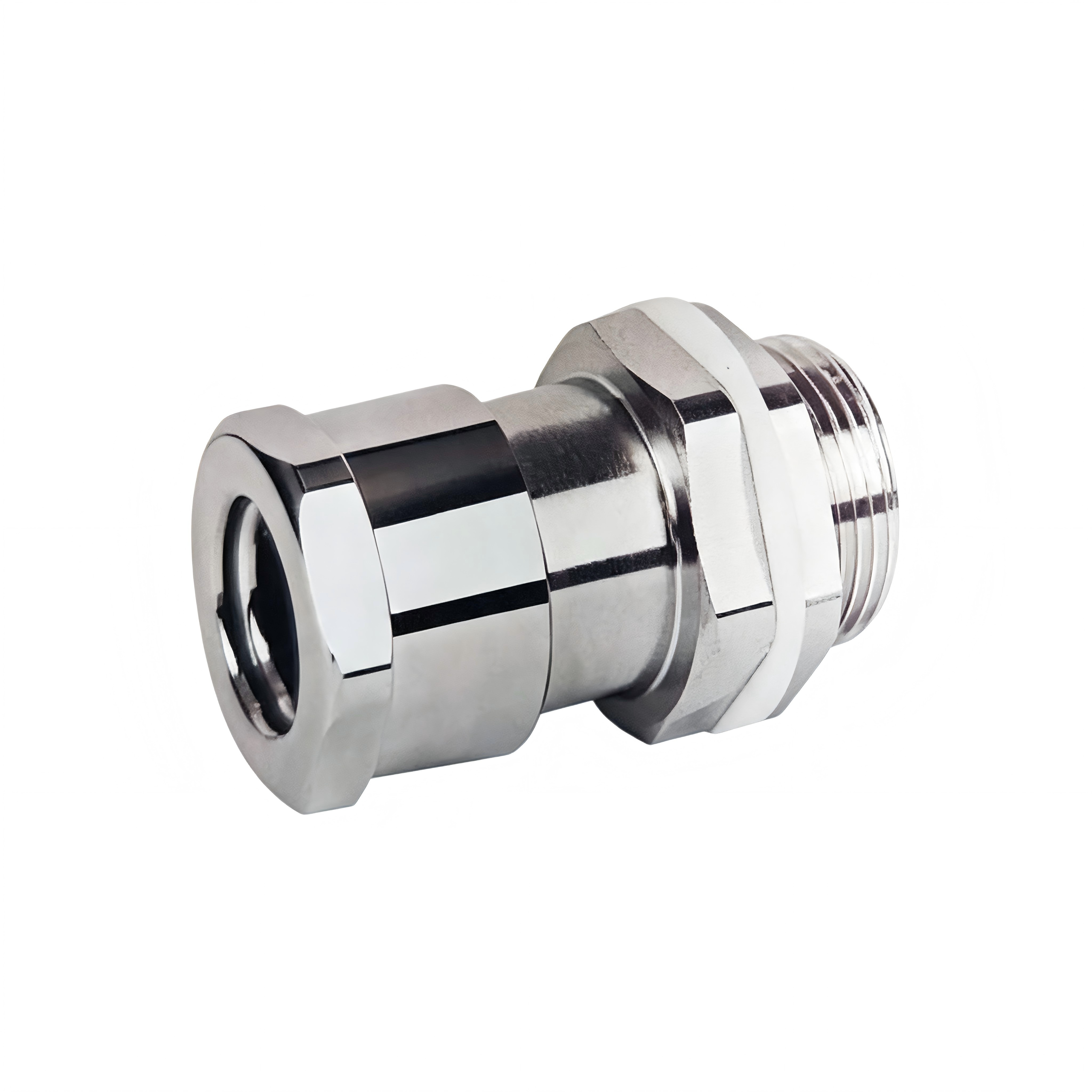

Explosion Proof Cable Gland BDM-12

Manufactured from high-quality brass or stainless steel; brass surface nickel-plated.
Seals: Silicone Rubber, Neoprene, Fluororubber.
Explosion-proof Marking: Ex db IIC Gb / Ex eb IIC Gb / Ex tb IIIC Db.
Flammability Rating: V0 (UL94).
Ambient Temperature: -40 ℃ ~ +100 ℃ / -60 ℃ ~ +110 ℃.
Ingress Protection Rating: IP66 / IP67 / IP68.
Features quick installation, high safety and reliable protection performance.
Suitable for clamping and fixing various types of non-armoured cables.
Application Zones: Zone 1, Zone 2 for IIA-IIC explosive gas atmospheres; Zone 21, Zone 22 combustible dust environments.
Widely used for electrical cable entry in petroleum, chemical, warehouse, food, pharmaceutical, military and other industries.

Guaranteed Safe Checkout

Technical Parameters
Model & Specification	Entry Thread (AG)		Cable Outer DiameterB	Maximum Outer DiameterD	L1	L
Model & Specification	M	NPT/G	Cable Outer DiameterB	Maximum Outer DiameterD	L1	L
16	M16x1.5	3/8	3~8	27	39	16
20A	M20x1.5	1/2	3~8	27	39	16
20B	M20x1.5	1/2	6~11	27	39	16
20C	M20x1.5	1/2	10~14.5	33	40	16
25B	M25x1.5	3/4	10~14.5	33	40	16
25C	M25x1.5	3/4	13~20	39	46	16
32B	M32x1.5	1	13~20	39	46	18
32C	M32x1.5	1	19.5~25.5	50	49	18
40B	M40x1.5	11/4	19.5~25.5	50	49	20
40C	M40x1.5	11/4	25~32	60	53	20
50B	M50x1.5	11/2	25~32	60	53	20
50C	M50x1.5	11/2	32~43	73	62	20
63B	M63x1.5	2	32~43	73	62	22
63C	M63x1.5	2	42.5~55	73	68	22
The following non-standard threads can be customized.
M12x1.5 、M14x1.5 、M18x1.5 、M22x1.5 、M24x1.5 、M25×2 、M27x1.5 、M27x2 、M28x1.5 、M28x2 、M30x1.5 、M30x2 、M33×2 、M35x2.M36x15、 M36x2 、M40x2 、M45x1.5 、M48x2 、M48x1.5 、M50x2 、M56x2 、M60x2 、M64x2 、M70x1.5 、M70x2 、M72x1.5 、M72x2 、M75x1.5 、 M75x2、 M76x2 、M80x1.5 、M80x2 、M85x1.5 、M85×2 、M85x3 、M90x1.5 、M90x2 、M90x3 、M95x1.5 、M95×2 、M100x1.5 、M100x2 、M115x1.5 、M115x2、 M115x3
