YX0502 Flameproof Signal Light Module

Technical Data

1.Explosion-proof Type

• Standards Implemented:YX0502 indicator-light module and YX0501 push-button contact module are built-in electrical components without separate Ex certificates and must be fitted inside an enclosure complying with GB3836 for explosive atmospheres.
• Applicable Hazardous Areas: These modules cannot be used bare in explosive hazardous areas and can only be applied in relevant hazardous zones after being assembled in a certified explosion-proof enclosure.
• Ex Marking: Gas protection: The modules themselves have no independent Ex rating, and the explosion-proof grade of complete set is determined by the matched explosionproof enclosure.

2.Product Parameters

• Product Type: Push-button contact modules and indicator-light modules, built-in assembled electrical modules for explosion-proof enclosures for signal indication and circuit switching.
• Certification: No separate Ex certification. They are internal components and shall be installed inside certified explosion-proof enclosures.
• Material: Housing made of insulating engineering plastic; indicator lamp with transparent plastic cover; internal metal contacts.
• Exposed Fasteners: No exposed fasteners. Fixed by clip-on connection with push-button base.
• Electrical-Rated Voltage: Indicator-light module: DC 24-40V, AC 240V. Contact modules for low-voltage control circuits.
• Electrical-Rated Current: No separate rated current shown on datasheet, subject to complete control circuit.
• Protection-Ingress Protection: No independent IP rating for modules. Protection performance depends on assembled explosion-proof enclosure.
• Protection-Ambient Temperature: No separate data on datasheet. Operating temperature follows matched explosion-proof enclosure.
• Connection-Cable Cross-section: Screw-clamp terminals for general control cables, no specified wire cross-section in datasheet.
• Connection-Cable Entry: No cable entry on modules. Cables connect to module terminals; cable entry is provided by outer explosion-proof enclosure.
• Connection-Cable Gland: No cable gland supplied. Glands are fitted on explosion-proof enclosure.

3.Product Classification & Origin

HS Code: 8536500000
Country of Origin: China

4.Applicable Industries

• Suitable for: Chemical, grain-oil, shipbuilding and automation complete-set equipment industries. They are built-in components installed inside explosion-proof operation boxes and control boxes for signal indication and button on-off control.

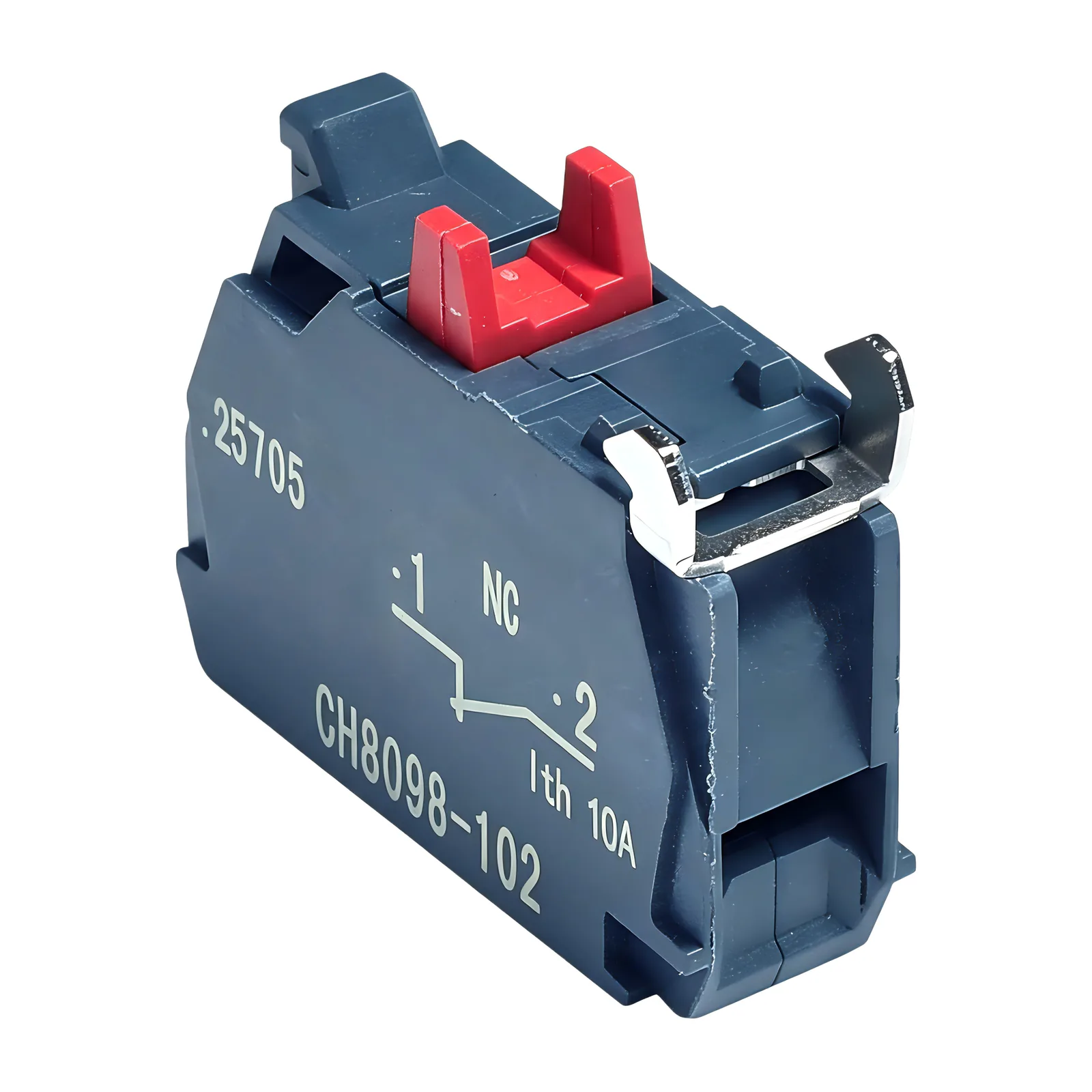

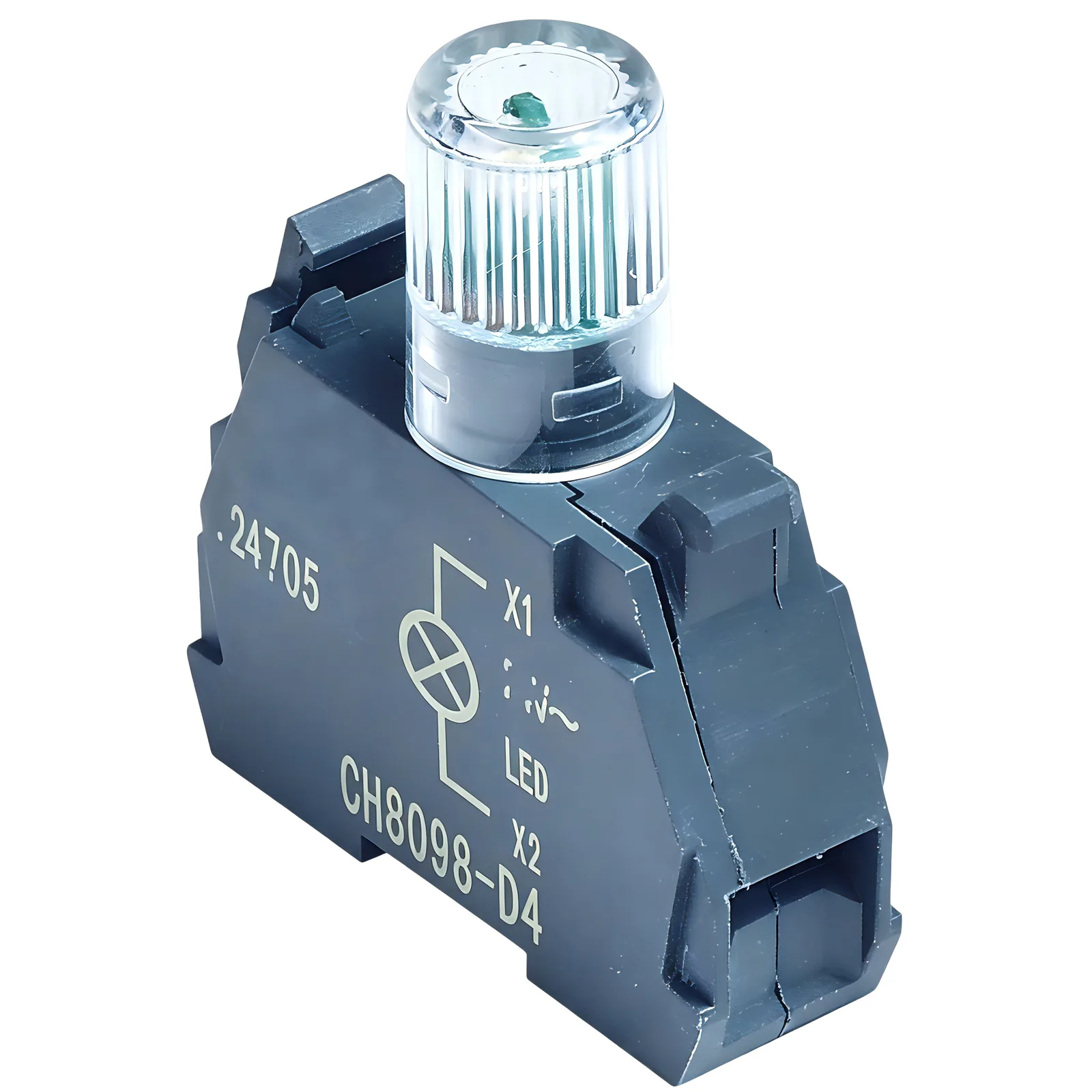

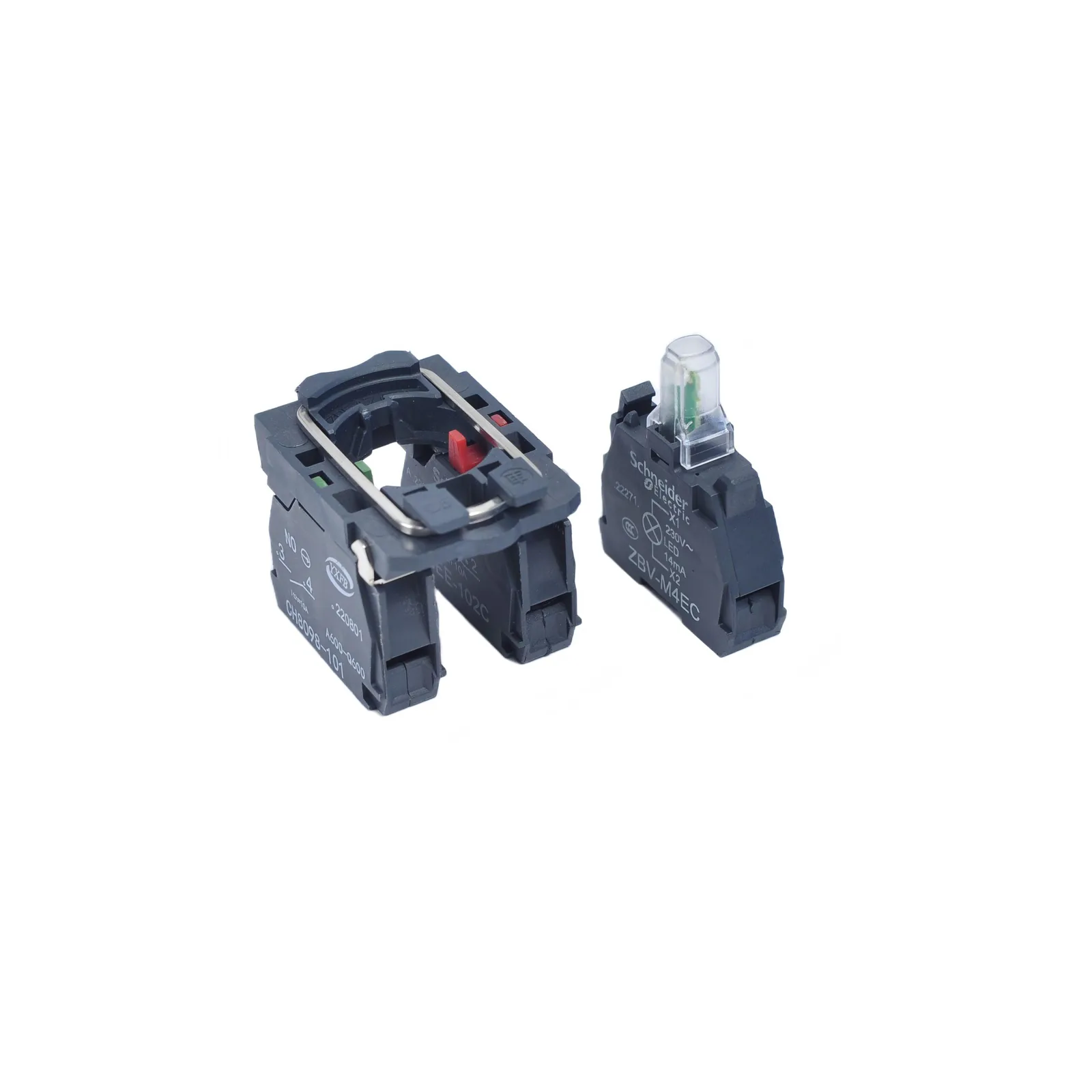

• Practicality: This product series includes indicator-light modules and push-button contact modules. Indicator-lights support AC and DC voltages with red, green and white colors. Contact modules provide normally-open, normally-closed and mixed contact types. Up to 6 contact modules can be combined. Screw-clamp terminals ensure convenient wiring for various control circuits.
• Safety Performance: Stable contact performance and clear status indication by indicator lamps. The modules shall not be used bare and must be housed in explosion-proof enclosures to ensure reliable operation of control circuits.
