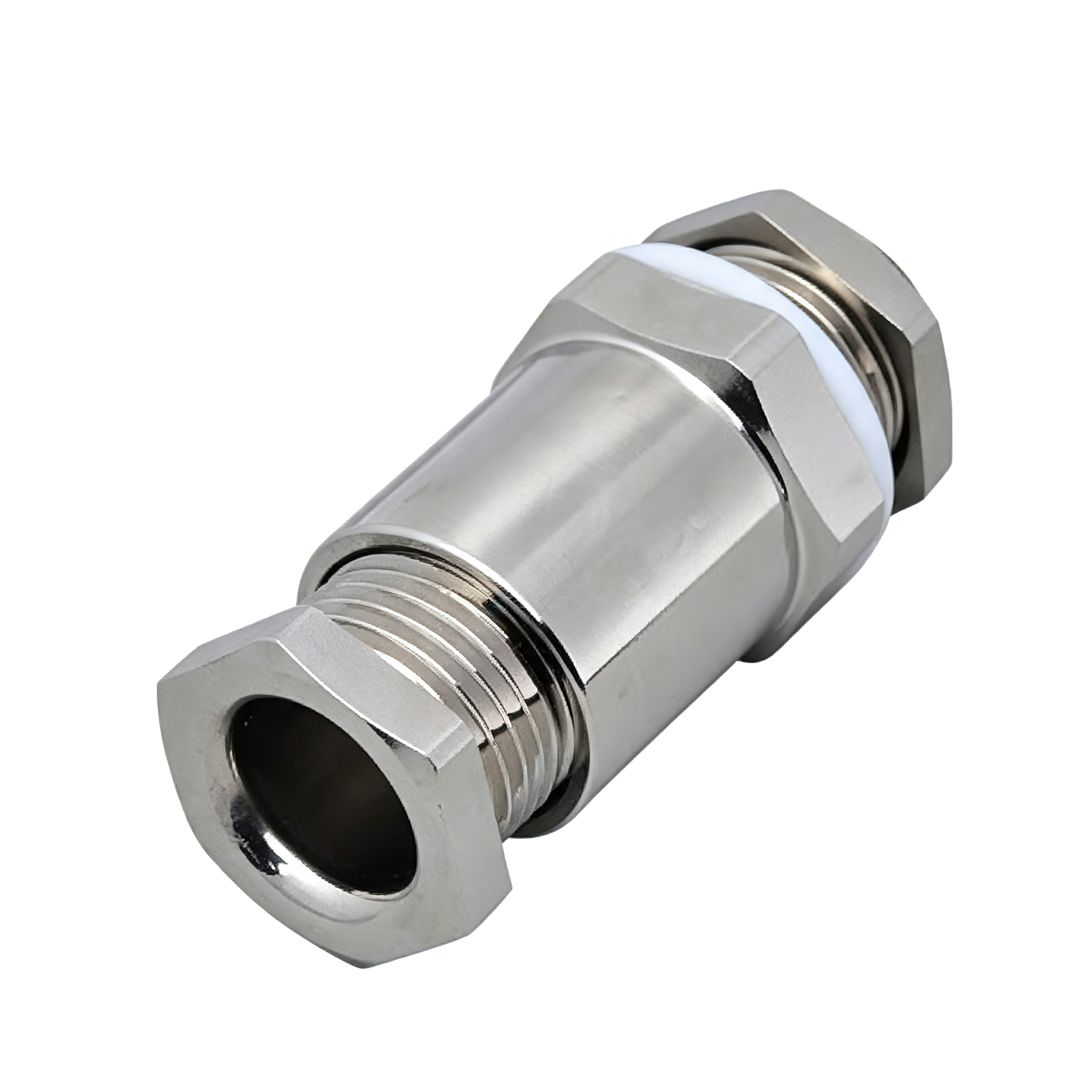

Explosion Proof Cable Gland BDM-10A

Manufactured from high-quality brass or stainless steel;
Sealing elements: Silicone Rubber, Neoprene Rubber
Ex marking: Ex db IIC Gb / Ex eb IIC Gb / Ex tb IIIC Db
Adopts mechanical cable clamping structure
Flammability Class: V0 (UL94)
Ingress Protection Rating: IP66 / IP67 / IP68
Ambient Temperature: -40℃ ~ 100℃
Application Zones: Zone 1, Zone 2 for IIA-IIC explosive gas atmospheres; Zone 21, Zone 22 combustible dust locations.
Widely used for electrical cable entry in petroleum, chemical, warehouse, food, pharmaceutical, military and other industries.

Guaranteed Safe Checkout

Technical Parameters
Model / Model Spec	Entry Thread Size		Cable Outer DiameterB	Optional Cable Outer Diameter B	Maximum Outer Diameter D	L1	L
Model / Model Spec	M	NPT/G	Cable Outer DiameterB	Optional Cable Outer Diameter B	Maximum Outer Diameter D	L1	L
16	M16x1.5	3/8	4~7	3~10	27	46	16
20	M20x1.5	1/2	5~13	5~14	29	46	16
25	M25x1.5	3/4	8~18	6~16	33	46	16
32	M32x1.5	1	12~22	10~22	42	50	18
40	M40x1.5	11/4	16~28	15~28	50	58	20
50	M50x1.5	11/2	18~33	23~36	60	59	20
63	M63x1.5	2	25~45	35~48	73	61	20
75	M75x1.5	21/2	29~50	/	89	77	22
80A	M90x1.5	3	29~65	/	125	77	22
90B	M90x1.5	4	41~80	/	132	77	24
Extended thread length L is available per customer installation requirements. The following non-standard threads can be customized.
M12x1.5、M14x1.5、M18x1.5、M22x1.5、M24x1.5(2)、M27x1.5(2)、M28x1.5(2)、M28x1.5(2)、M30x1.5(2)、M32x1.5(2)、M33x1.5(2)、M35x1.5(2)、 M36x1.5(2)、M37x1.5(2)、M40x2、M42x1.5(2)、M45x1.5(2)、M48x1.5(2)、M50x1.5(2)、M54x1.5(2)、M56x1.5(2)、M60x1.5(2)、M63x1.5(2)、 M64x1.5(2)、M70x1.5(2/3)、M72x1.5(2/3)、M75x1.5(2/3)、M761.5(2/3)、M80x1.5(2/3)、M85x1.5(2/3)、M87x1.5(2/3)、M88x1.5(2/3)、M90x1.5(2/3)、 M95x1.5(2/3)、M100x1.5(2/3)、M115xx2(3)、M120x2(3)、M130x2(3)
