| Technical Parameters | |||||
| Model & Specification | Entry Thread (AG) | Cable Outer DiameterB | Projection LengthL1 | Thread LengthL | |
| M | NPT/G | ||||
| 20 | M20x1.5 | 1/2 | 10~14 | 44 | 16 |
| 25 | M25x1.5 | 3/4 | 11~18 | 44 | 16 |
| 32 | M32x1.5 | 1 | 14~26 | 47 | 18 |
| 40 | M40x1.5 | 11/4 | 18~30 | 48 | 19 |
| 50 | M50x1.5 | 11/2 | 25~27 | 49 | 20 |
| 63 | M63x1.5 | 2 | 29~42 | 52 | 20 |
| 75 | M75x1.5 | 21/2 | 29~56 | 56 | 22 |
| 90 | M90x1.5 | 3 | 41~80 | 56 | 22 |
All Products, Ex distribution boards& control system, Exd, Exe components& cable glands& boxes, Flexible Conduits & Cable Glands, Most Popular, Uncategorized

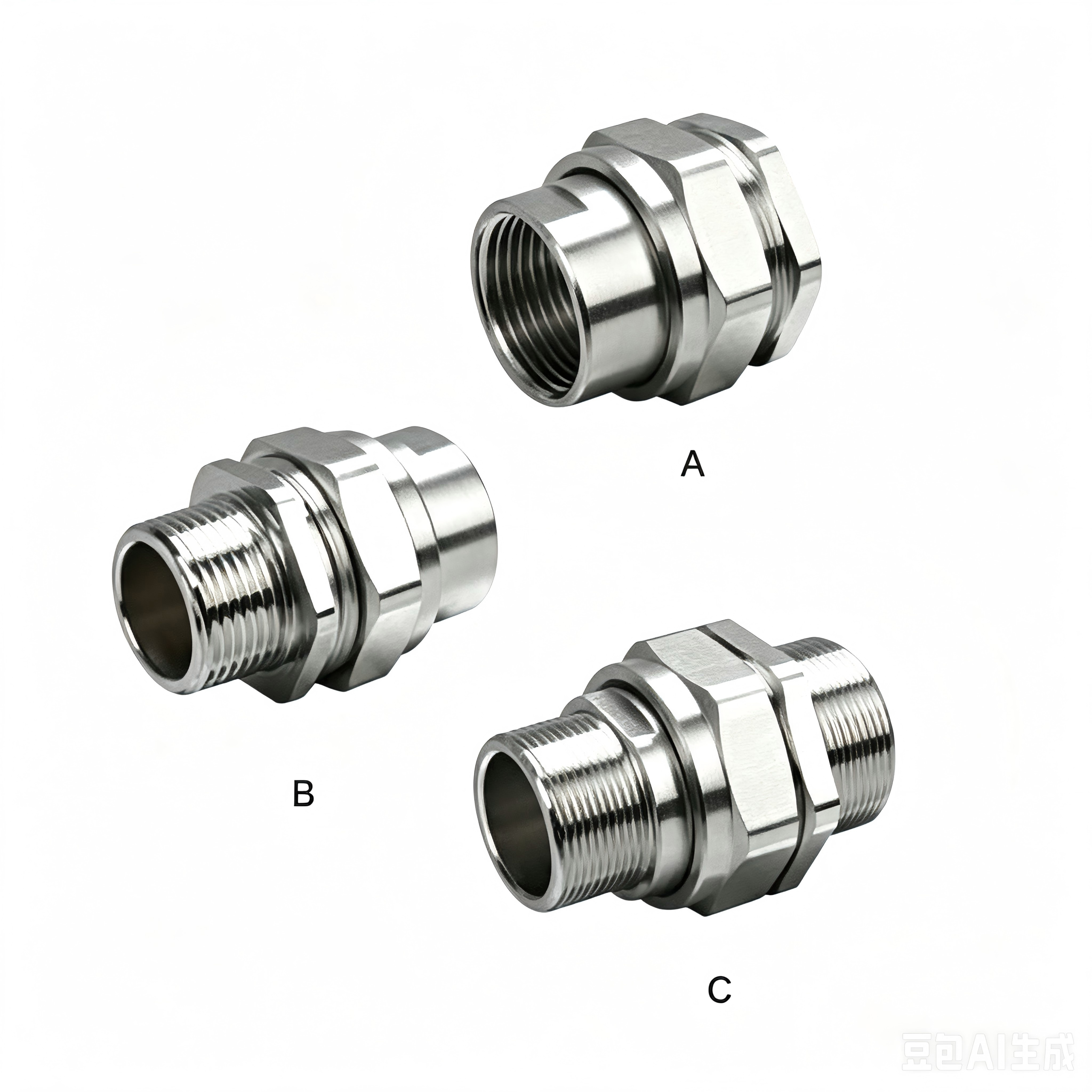

Explosion Proof Cable Gland BDM-11
Product Features
- Seal: Silicone Rubber (-20 ℃ ~ +80 ℃)
- Flammability Rating: V0 (UL94)
- Explosion-proof Marking: Ex db IIC Gb / Ex eb IIC Gb / Ex tb IIIC Db
- Ingress Protection Rating: IP66
- Application Zones: Zone 1, Zone 2 for IIA-IIC explosive gas atmospheres; Zone 21, Zone 22 combustible dust environments.
- Widely used for electrical cable entry in petroleum, chemical, warehouse, food, pharmaceutical, military and other industries.
