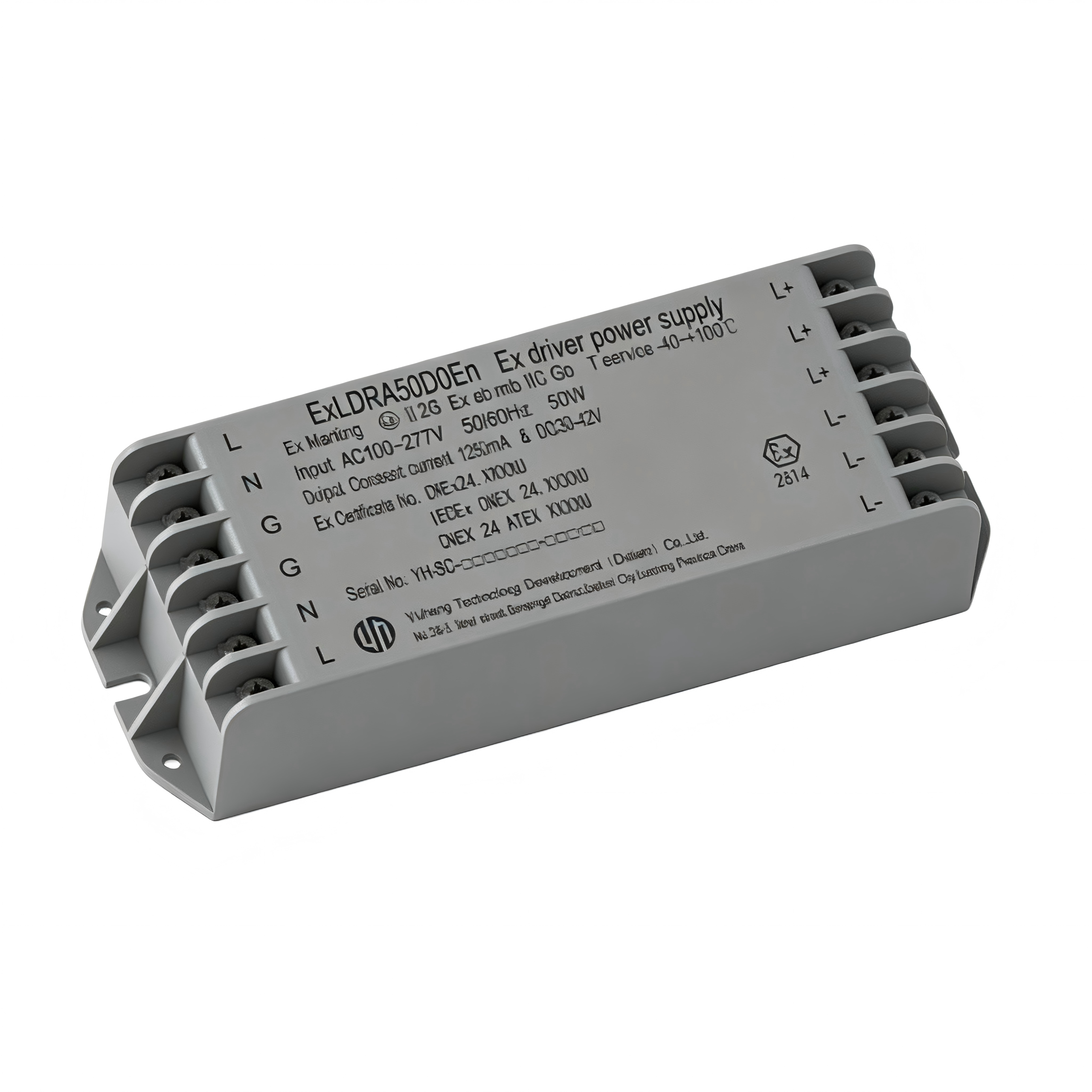

Ex Driver Power Supply PT DIPOERO DJAJA ABADIE — product photograph 1
Ex Driver Power Supply PT DIPOERO DJAJA ABADIE

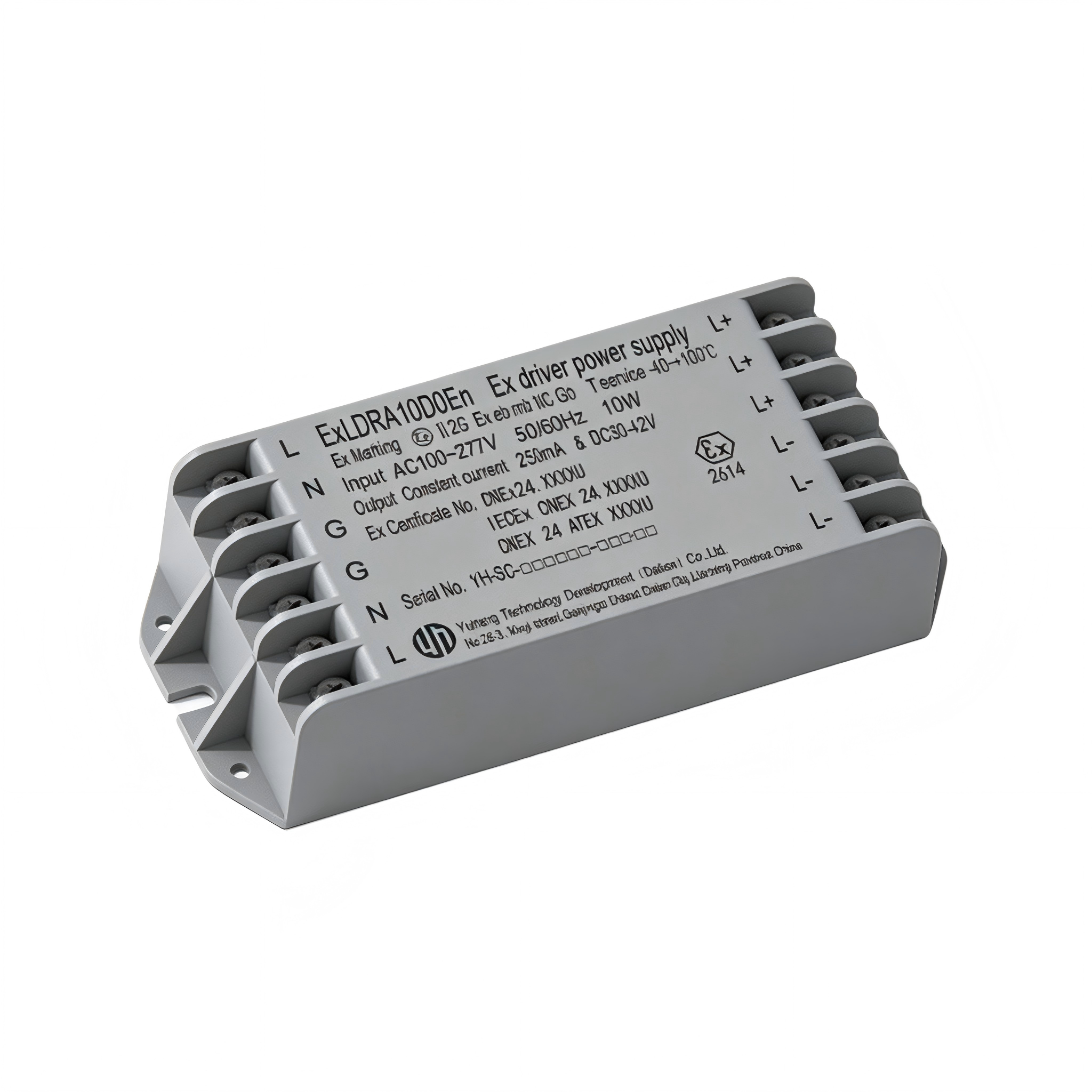

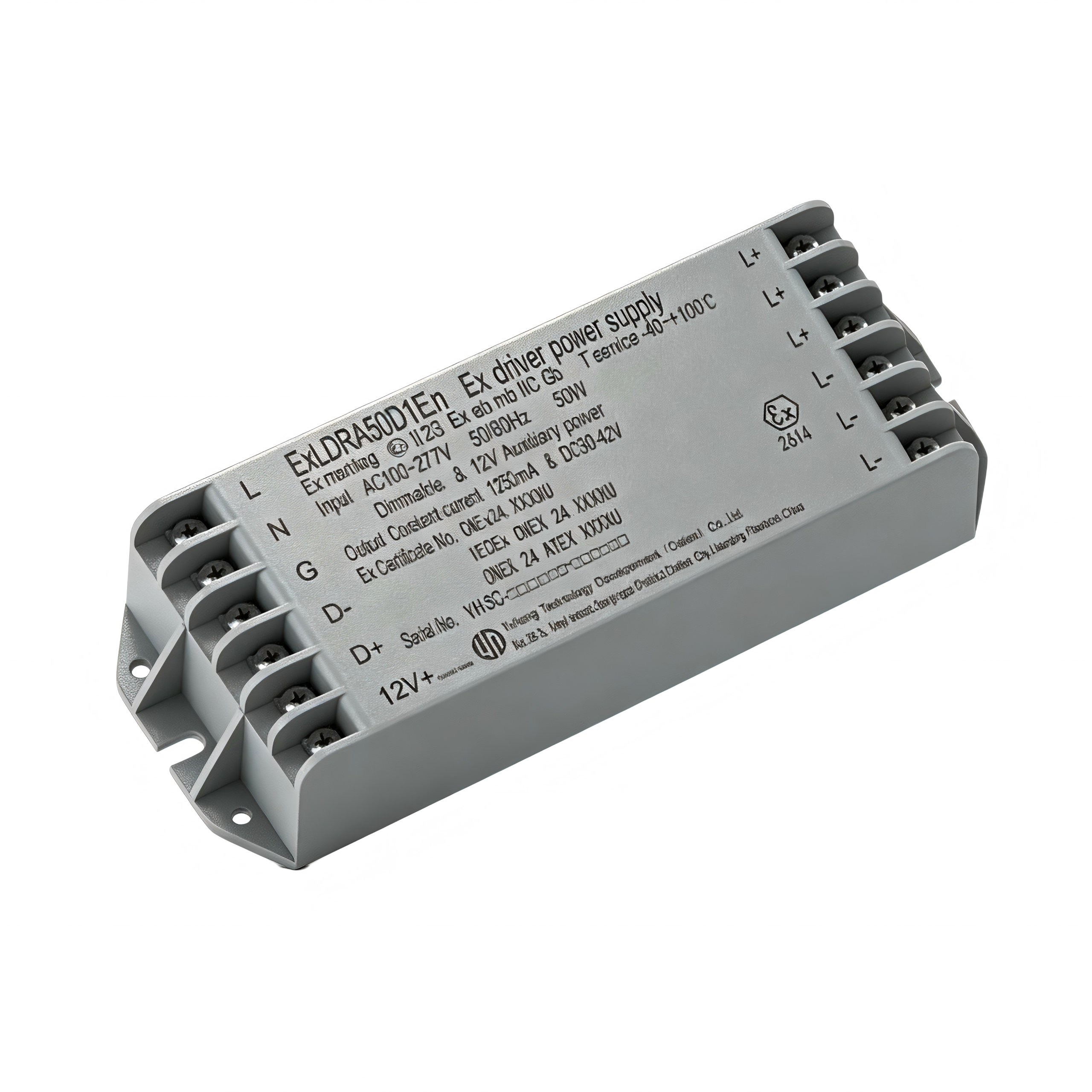

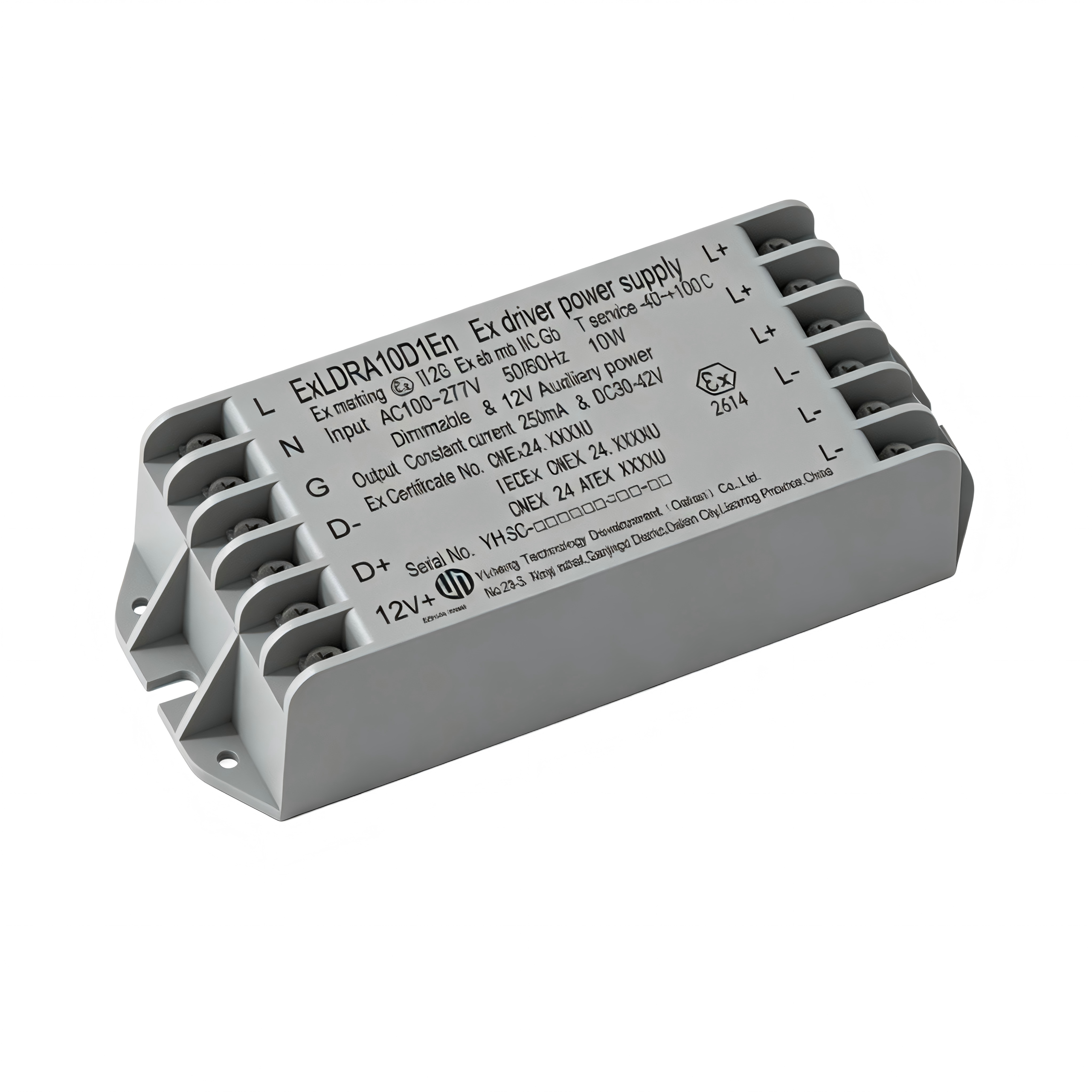

The ExLDRA family is described as an LED-module driver with an encapsulated circuit assembly and terminals at both ends. Published sections contain inconsistent numerical ranges, so the full model, load specification and connection drawing are essential for selection review.
- Listed function
- LED-module driver
- Listed family
- ExLDRA
- Listed circuit construction
- Encapsulated PCBA
- Listed connection layout
- Terminal groups at both ends
Application exclusions and source-data limits
All Products, Exd, Exe components& cable glands& boxes, Explosion Proof Components, Most Popular
The source excludes Zone 0, dust hazardous areas and underground mines. These exclusions are not approval for other locations. Obtain current complete-model approval and installation documents; do not rely on the unclear torque and electrical text in the record.
Product overview
The ExLDRA family is described as an LED-module driver with an encapsulated circuit assembly and terminals at both ends. Published sections contain inconsistent numerical ranges, so the full model, load specification and connection drawing are essential for selection review.
Use the full model and the selected configuration when requesting drawings or comparing specifications. Published options are not a stock indication or a guarantee that every combination is available.
Request model-specific documentsWhat to specify
- Complete ExLDRA model and suffix
- LED-module load and control requirements
- Driver mounting space and terminal orientation
- Current connection drawing and dimensional sheet
Technical specifications
Reference data from the existing product record, reorganised for readability. Values and protection claims require confirmation against the current complete-model datasheet and applicable documents.
| TECHNICAL PARAMETER(ExLDRA□□En) | |||||||
| Input | Input Voltage Range | 100~277Vac;50Hz/60Hz | |||||
| Model | Terminal (0.35-0.75mm²) | ||||||
| 式Output Model | Terminal (0.35-0.75mm²) | ||||||
| Input Current | 0.25A Max@220Vac | ||||||
| Power Factor(Typ.) | >0.9,at80%~100%Load | ||||||
| (80%~100%Load) | <15%@100~277Vac | ||||||
| Rush (Max) | <30A @240Vac (Cold Start) | ||||||
| Leakage Current | <0.5mA @240Vac | ||||||
| Output | Output Voltage | 30~42VDC | |||||
| Current Accuracy | ±5% | ||||||
| Start-up Delay Time | <0.5s @220Vac | ||||||
| Start-up current Overshoot | Soft Start | ||||||
| Output Power (W) | 10W | 15W | 20W | 30W | 40W | 50W | |
| Output Constant Current (mA) | 250 | 350 | 500 | 750 | 1000 | 1250 | |
| Efficiency(230VAC input) | 82% | 83% | 84% | 85% | 87% | 89% | |
| Protection | Short-circuit Protection | Hiccup mode,SCP-Auto recovery | |||||
| No-load Protection | <50V max Auto recovery | ||||||
| Over-temperature Protection | current drop,OTP-Auto recovery | ||||||
| Service Temperature | -40℃~+100℃ | ||||||
| Storage Environment | -30~+85℃,5~80%RH | ||||||
| Service Humidity | 20~80%RH | ||||||
| Ex standard and EMC | Ex Standards | IEC 60079-0:2017,IEC 60079-7:2017, IEC 60079-18:2017; EN IEC60079-0:2018,EN 60079-7:2015, EN IEC 60079-7:2015/A1:2018 EN 60079-18:2015,EN 60079-18:2015/A1:2017; GB/T 3836.1-2021,GB/T 3836.3-2021, GB/T 3836.9-2021. | |||||
Source: existing published product record, captured 17 October 2026. This summary is not independent certification evidence. Unknown or inconsistent details must be confirmed before selection.
Documents & dimensions
Request the current datasheet, dimension drawings and applicable certification documents for your exact configuration. A product description or catalogue is not a certificate.
Request DocumentsExLDRA selection questions
What load does the source describe?
LED modules are identified as the driver load.
Where are the terminal groups described?
The current text places terminal groups at both ends of the driver.
Can the displayed ranges define the selected driver?
No. Source sections differ; request the exact model's electrical specification.
Can the published terminal torque be relied on?
No. Its merged notation needs the original current instructions, not interpretation here.
Which documents are needed for ExLDRA?
Request the exact model's drawing, current specification and applicable supporting documents.
What is needed for a quotation?
Send reference 2578, quantity, the selection details above and delivery destination.
Discuss your configuration.
Tell us the quantity, selected version and project requirements. We will need the full model details to check the relevant documents.
- Product
- Ex Driver Power Supply PT DIPOERO DJAJA ABADIE
- Product reference
- 2578
The enquiry uses our existing contact form. Please include the information listed under “What to specify”.
