Explosion Proof Push Button Nameplate Accessories For Panel Mount Ex Components

Technical Data

1.Explosion-proof Type

• Standards Implemented: GB/T 3836 series for explosive atmospheres
• Applicable Hazardous Areas: Gas atmosphere: Zone 1, Zone 2 Dust atmosphere: Zone 21, Zone 22
• Ex Marking: Gas protection: Ex db eb ib mb IIC Gb / Ex ib tb IIIC Db

2.Product Parameters

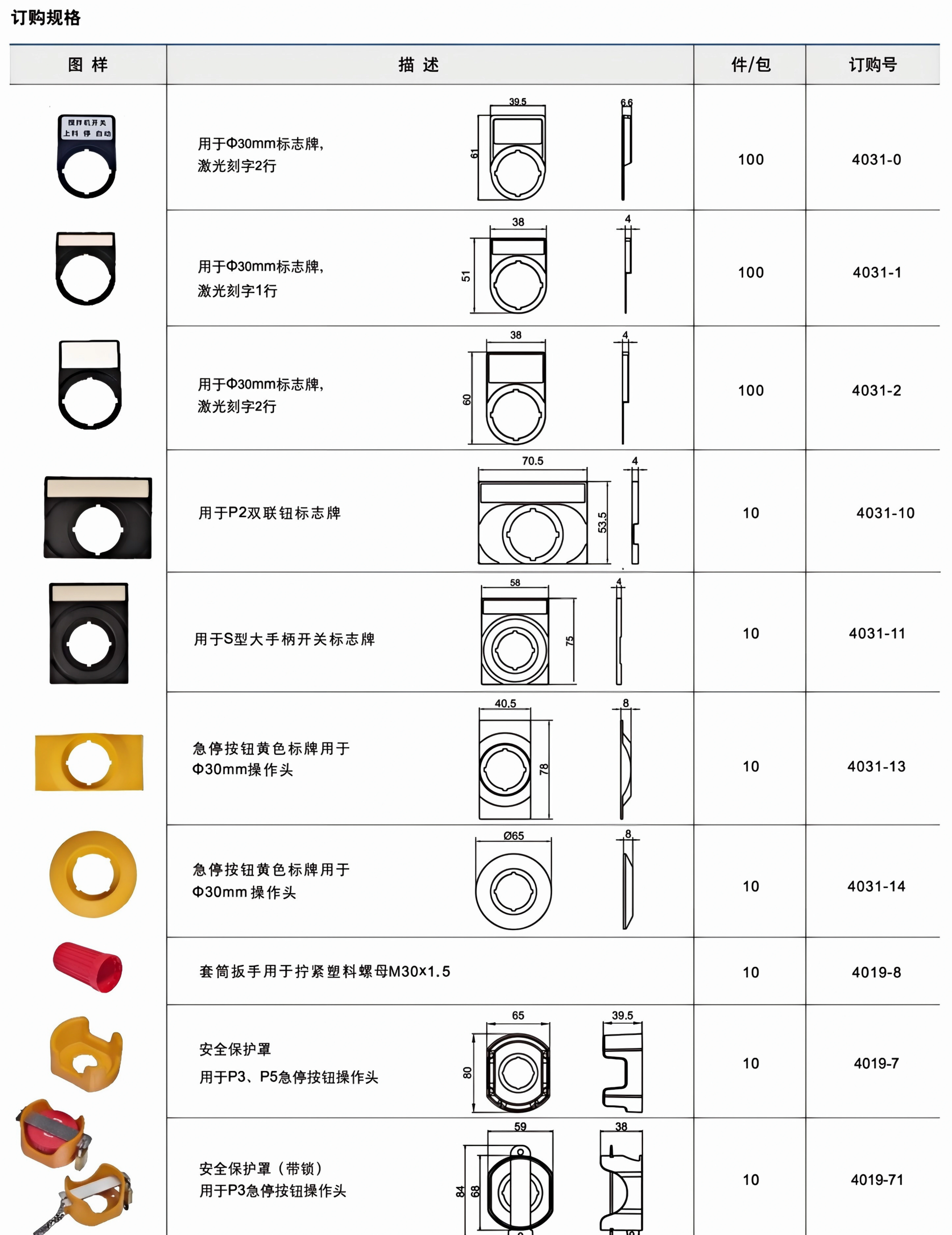

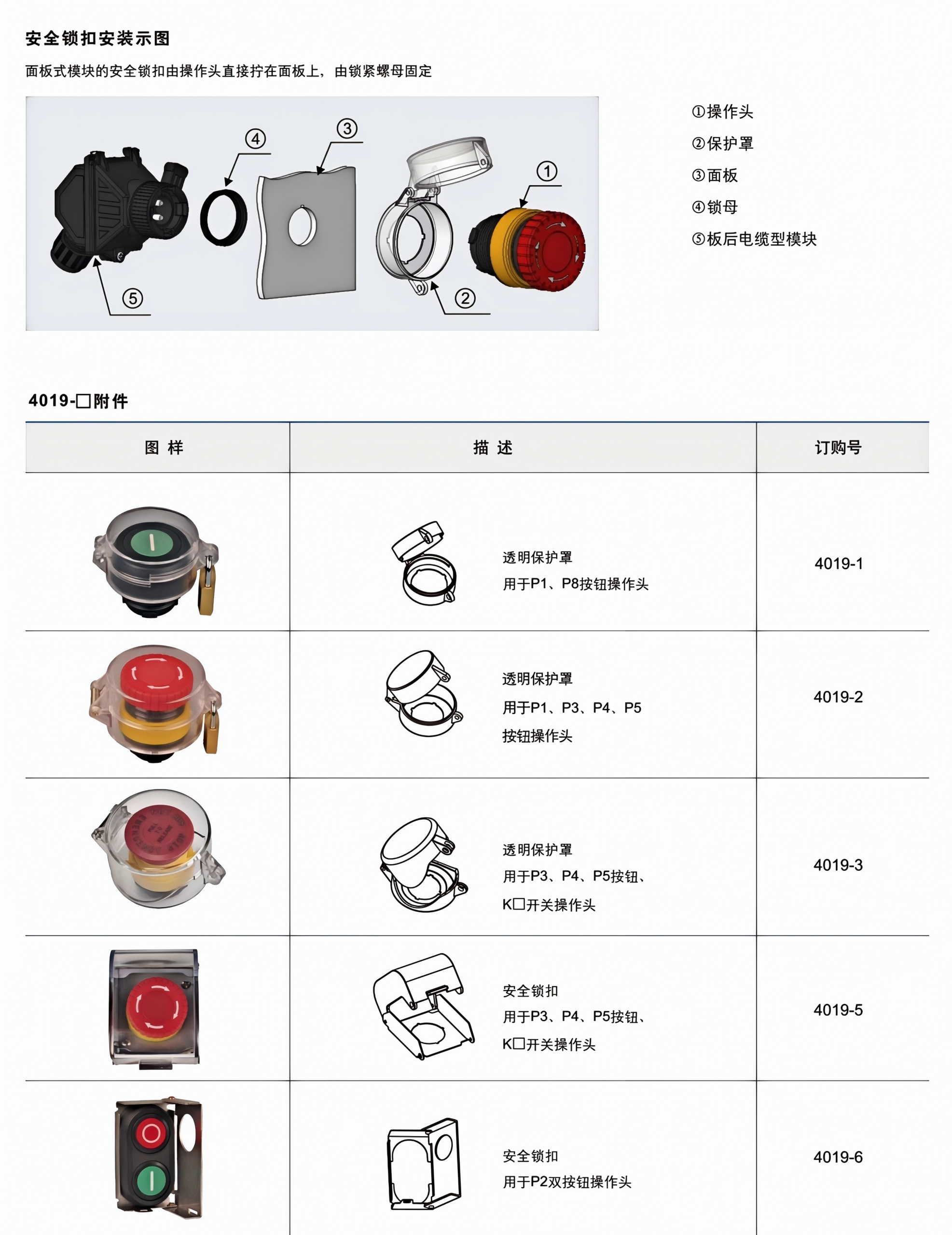

• Product Type: Supporting accessories for explosion-proof push buttons (transparent protective cover, safety latch, nameplate, socket wrench)
• Certification: Explosion-proof supporting accessories Ex db eb ib mb IIC Gb / Ex ib tb IIIC Db (must be assembled with explosion-proof operating heads)
• Material: Not fully specified in datasheet; protective cover: transparent plastic; latch, nameplate and wrench: engineering plastic
• Exposed Fasteners: Not specified in datasheet
• Electrical Specifications: Rated voltage: None (pure mechanical accessories, no electrical parameters); Rated current: None (pure mechanical accessories, no electrical parameters)
• Protection: Ingress protection rating: Subject to matched explosion-proof operating head; Ambient temperature: -40℃ ~ +60℃
• Connection & Input: Cable cross-section: None; Cable entry: None; Cable connector: None

3.Product Classification & Origin

HS Code: 8538900000
Country of Origin: China

4.Applicable Industries

• Suitable for chemical, petrochemical, pharmaceutical, oil-gas and other hazardous working conditions with explosive gas and dust, used together with panel-mount explosion-proof push-button operating heads.

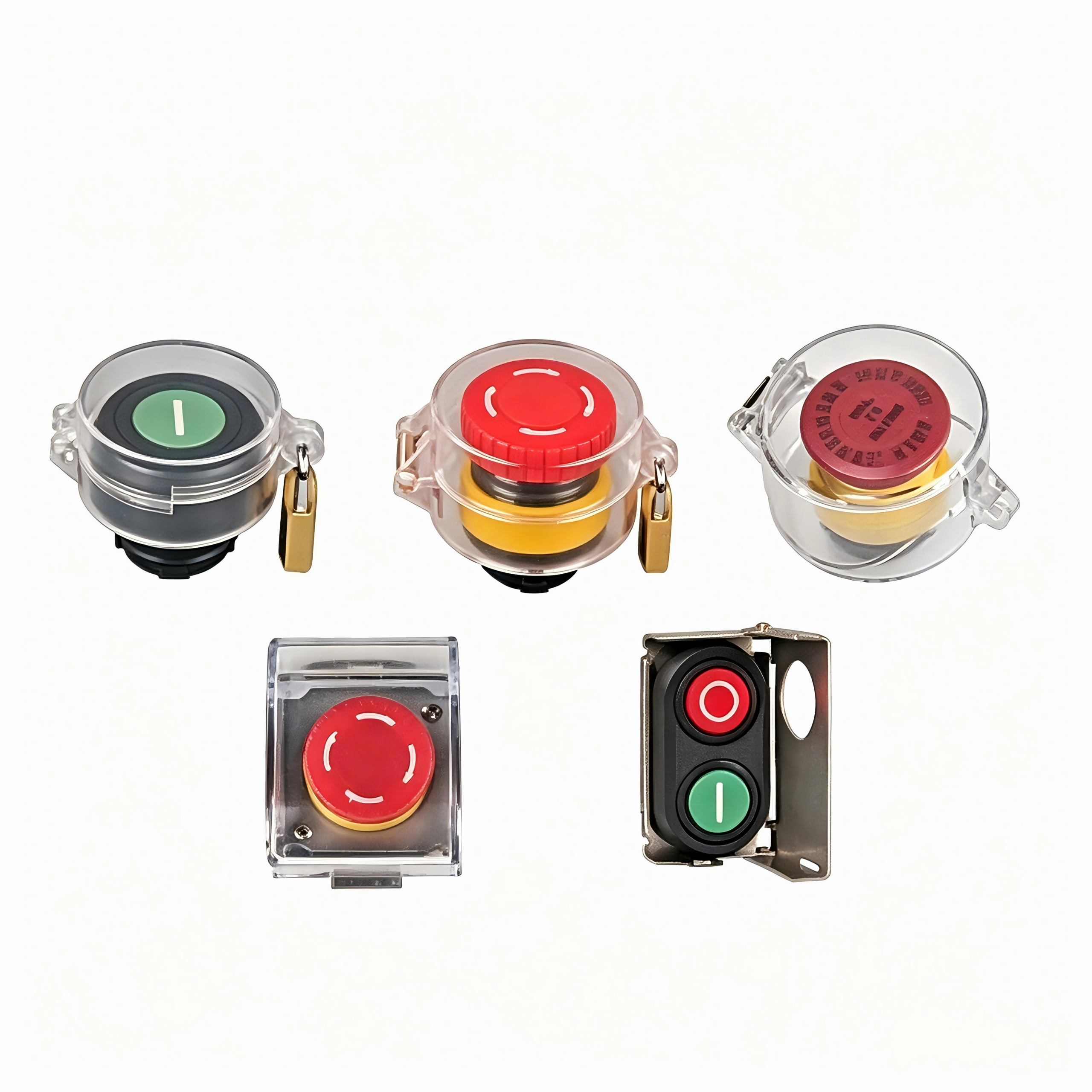

• Practicality: A full range of accessories including transparent protective covers, safety latches, nameplates and socket wrenches. Compatible with multiple operating head models P1/P2/P3/P4/P5/P8. Laser-engraved nameplates are available. Some protective covers are lockable. Easy for installation and replacement to meet various on-site marking and protection requirements.
• Safety Performance: These are supporting explosion-proof accessories, explosion-proof performance is valid only when assembled with matched explosion-proof operating heads. Protective covers prevent accidental touching. Latch structures lock operating status to avoid unauthorized mis-operation and improve operation safety in hazardous sites.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1: What kinds of occasions are these explosion-proof push-button supporting accessories suitable for?

A1: They are suitable for hazardous sites with explosive gas and dust in chemical, petrochemical, pharmaceutical and oil-gas industries when matched with corresponding explosion-proof operating heads.



Q2: Which operating head models can these accessories be compatible with?

A2: They fit multiple operating head models including P1, P2, P3, P4, P5 and P8.



Q3: What safety functions can the protective covers and safety latches provide?

A3: They can prevent accidental touch and lock the operating status to avoid unauthorized mis-operation in hazardous working conditions.
