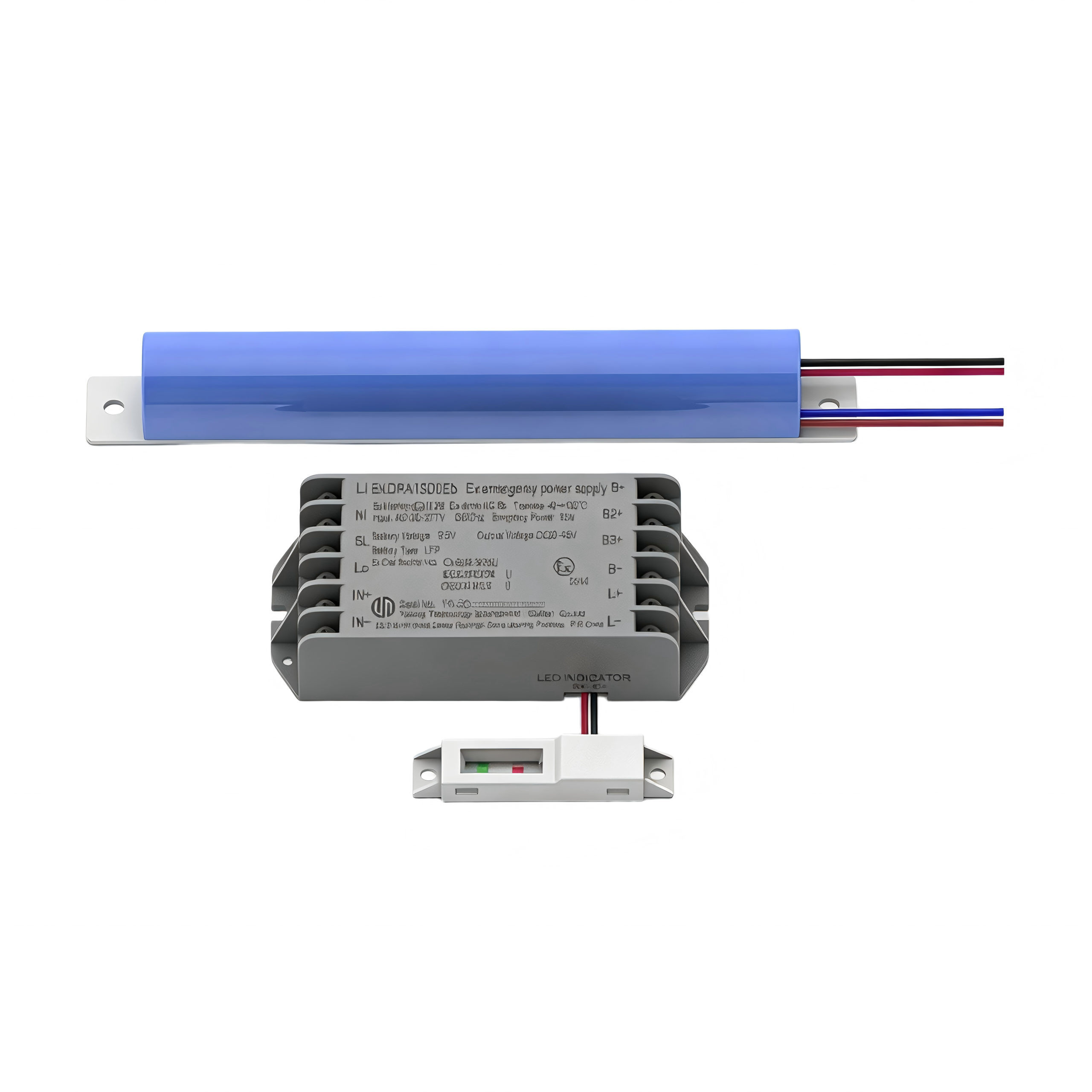

Ex Emergency Power Supply PT DIPOERO DJAJA ABADIE

Technical Data

1.Explosion-proof Type

• Standards Implemented: Ex Emergency Power Supply PT DIPOERO DJAJA ABADIE
• Applicable Hazardous Areas: Zone 1, Zone 2 for explosive gas atmospheres
• Ex Marking: Gas protection: Ex eb mb ⅡC Gb

2.Product Parameters

TECHNICAL PARAMETER
Input	Input Voltage	100~277Vac;50Hz/60Hz
	Input Model	Terminal(0.5-1.0mm²)
	Output Model	Terminal(0.5-1.0mm²)
	THD(80%~100%Load)	<15%@200~240Vac
	Rush Current(Max)	<10A @240Vac(冷态/Cold Start)
	Leakage Current	<0.5mA @240Vac
Output	Battery Pack	(LiFePO4)Three in series: 9.6V-3.5Ah			Three in series: 3.6V,3.0Ah
		YH-BP-IRF-9.6/3.5Ah-A/B			KRH26/51(C)3000 TX3
	Battery Pack Discharge Power	15W	10W	7W	3.5W
	Discharge Current	1.5A	1.0A	0.7A	0.8A
	Output Voltage	20~45VDC
	Current Accuracy	±5%
	Emergency Switching Time	<3s
	Efficiency	85%
Protection	Short-circuit Protection	Self-recovery
	No-load Protection	<50V max(Typ) Auto recovery
	Over-temperature Protection	Fuse Disconnected
Environme nt	Ambient Temperature	-40℃~+60℃
	Service Temperature	-40℃~+100℃
	Storage Environment	-20~+60℃,5~80%RH
	Operating Humidity	20~80%RH
Ex&EMC	Ex standards	IEC 60079-0:2017,IEC 60079-7:2017, IEC 60079-18:2017;EN IEC60079-0:2018, EN 60079-7:2015, EN IEC 60079-7:2015/A1:2018 EN 60079-18:2015, EN 60079-18:2015/A1:2017; GB/T 3836.1-2021,GB/T 3836.3-2021, GB/T 3836.9-2021.
	EMC	IEC55015;IEC61000-4-3; IEC61000-3-2;IEC61000-3-3; IEC61547
	Withstand Voltage	I/P–O/P:1.5KVac@60S;
	Isolation Resistance	I/P–O/P:>10MΩ@500Vdc
Others	MTBF	>385KHours,80%Load MIL-HDBK-217F(25℃)
	Net Weight &Size	280g,125×52.5×30mm

3.Product Classification & Origin

HS Code: 8504409990
Country of Origin: China

4. Applicable Industries

• Applicable industries: Petrochemical, chemical storage tanks, pharmaceutical processing, grainoil processing, coal mining, oilgas transmission, power plants, sewage treatment, rail transit, port terminals, ink & coatings, coal chemical industry, offshore platforms, municipal engineering and other industries.
• Practicality: Provide reliable explosionproof electrical connection solutions for onsite electrical equipment, simplify electrical wiring installation in hazardous areas, and adapt to various onsite working condition retrofits and new project supporting.
• Safety performance: Equipped with explosionproof certification and high IP protection rating, effectively resist dust, moisture and corrosive environments, and avoid potential electrical safety hazards in flammable and explosive locations.

5.Credibility

• Certification: Possesses CNEx explosionproof certificate and IECEx certificate, complies with relevant EMC electromagnetic compatibility standards and explosionproof installation specifications.
• Reliability: Adaptable to harsh industrial sites with extreme cold, high temperature and other severe conditions.
• Support: Products allow terminal manufacturers to conduct retests under actual endproduct application scenarios. Superposition of housing temperature rise ΔT is permitted to verify the final endproduct temperature class, supporting downstream luminaire manufacturers for endproduct certification.

6.FAQs

Q1：What is the explosionproof marking of ExLDRA*D0Eb series emergency power supply?

A1: Its Ex Marking is Ex eb mb IIC Gb.



Q2：What is the service temperature range for this Ex emergency power supply and batteries?

A2: Ex emergency power supply:40℃~+100℃; Lithium iron phosphate battery:40℃~+70℃; NiCd battery:20℃~+70℃.



Q3：Can the battery pack be replaced in explosive hazardous atmosphere?

A3: Do not replace the battery string in an explosive environment. Only replace wit
