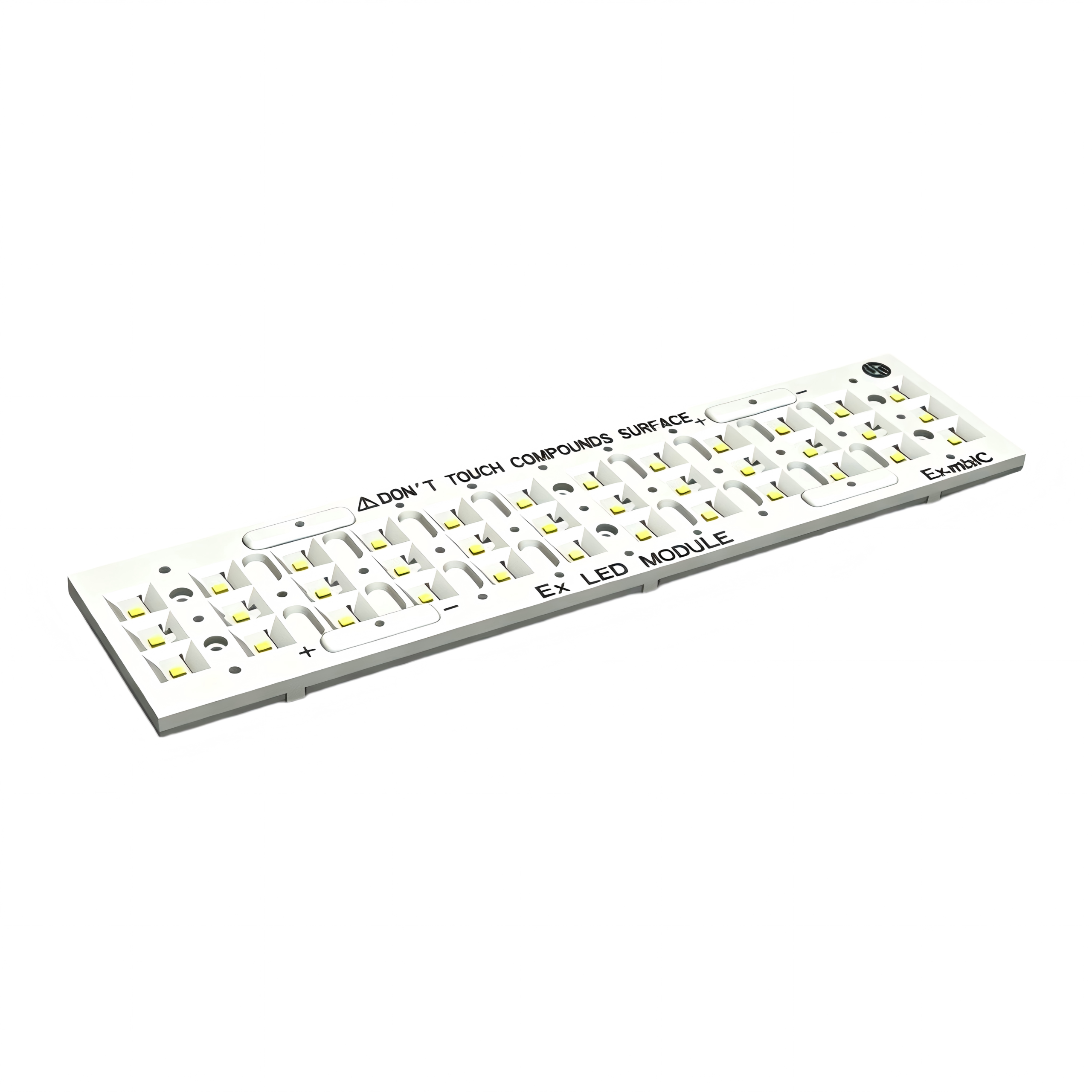

Ex LED Light Source Module PT DIPOERO DJAJA ABADIE — product photograph 1
Ex LED Light Source Module PT DIPOERO DJAJA ABADIE
The ExLMD300X70 family provides a rectangular LED light-source module for integration into a complete luminaire. Select the full module reference together with the intended driver, mounting arrangement and thermal design; this module is not a complete standalone light fitting.
- Product type
- LED light-source module
- Series reference
- ExLMD300X70
- Board format
- Rectangular module
- Selection focus
- Driver and thermal integration
Enclosure and thermal integration required
All Products, Ex floodlight fittings, Ex light fittings, Most Popular
This LED module requires an increased-safety enclosure and a matched heat sink; it is not a complete standalone luminaire. Confirm the enclosure, thermal arrangement and complete-model electrical limits before selection. The finished lighting assembly requires its own applicable documentation.
Product overview
The ExLMD300X70 family provides a rectangular LED light-source module for integration into a complete luminaire. Select the full module reference together with the intended driver, mounting arrangement and thermal design; this module is not a complete standalone light fitting.
Start with the complete module reference, not the shared series name. The existing catalogue distinguishes RP36W and RP100W references, so the driver and thermal arrangement must be reviewed for the selected version. Use the module drawing to coordinate fixing positions, the heat-sink interface and available enclosure space. Confirm which components are included in the quotation; the module listing does not imply that a driver, housing or heat sink is supplied.
Request model-specific documentsWhat to specify
- Complete module reference, quantity and requested supply scope
- LED driver model and proposed electrical interface
- Board mounting, enclosure space and heat-sink drawings
- Required light output, colour specification and project conditions
Technical specifications
This configuration checklist supports an enquiry, not electrical or thermal design. Use the current complete-model datasheet for numerical ratings and installation limits; values from different module versions must not be combined.
| Product role | LED light-source component within a complete luminaire |
|---|---|
| Model identification | Full ExLMD300X70 reference, including the version suffix |
| Driver review | Match the selected module to the proposed driver's output and connection requirements |
| Mechanical review | Coordinate the module drawing, fixing positions and available enclosure space |
| Thermal integration | Provide a matched heat sink and review the interface for the chosen assembly |
| Enclosure integration | Increased-safety enclosure required; confirm the complete assembly documents |
| Quotation scope | Identify whether the request covers the module only or additional assembly parts |
Configuration guidance is based on the retained product record and original product image. Complete-model electrical, thermal and certification documents must be matched to the supplied version before engineering selection.
Documents & dimensions
Request the current datasheet, dimension drawings and applicable certification documents for your exact configuration. A product description or catalogue is not a certificate.
Request DocumentsExLMD300X70 selection questions
Is ExLMD300X70 a complete luminaire?
No. This listing concerns the LED light-source module. The driver, increased-safety enclosure, heat sink and other parts of the finished lighting assembly must be specified separately and coordinated for the selected version.
Why do I need the complete module reference?
The existing catalogue separates RP36W and RP100W references. Do not use the shared series name to select a driver or combine electrical values from different versions; use the specification for the complete model.
How should the LED driver be selected?
Provide the proposed driver model and the selected module's current specification. Review the output voltage, current, wiring and operating conditions together; this product page does not establish universal driver compatibility.
Are a heat sink and enclosure included?
The page presents the module, not a confirmed complete kit. State the required driver, heat sink, enclosure, mounting parts and quantity in the enquiry so the quoted supply scope is explicit.
Does the module listing establish hazardous-area suitability for the finished light?
No. The complete luminaire and its installation must be assessed using the applicable documents for that configuration. Request documents that identify the exact supplied module, enclosure and finished assembly.
What should I send for an ExLMD300X70 quotation?
Send reference 2571, the complete module code, quantity, proposed driver, mounting and heat-sink information, required lighting characteristics and delivery destination. Include the intended assembly drawing when available.
Discuss your configuration.
Tell us the quantity, selected version and project requirements. We will need the full model details to check the relevant documents.
