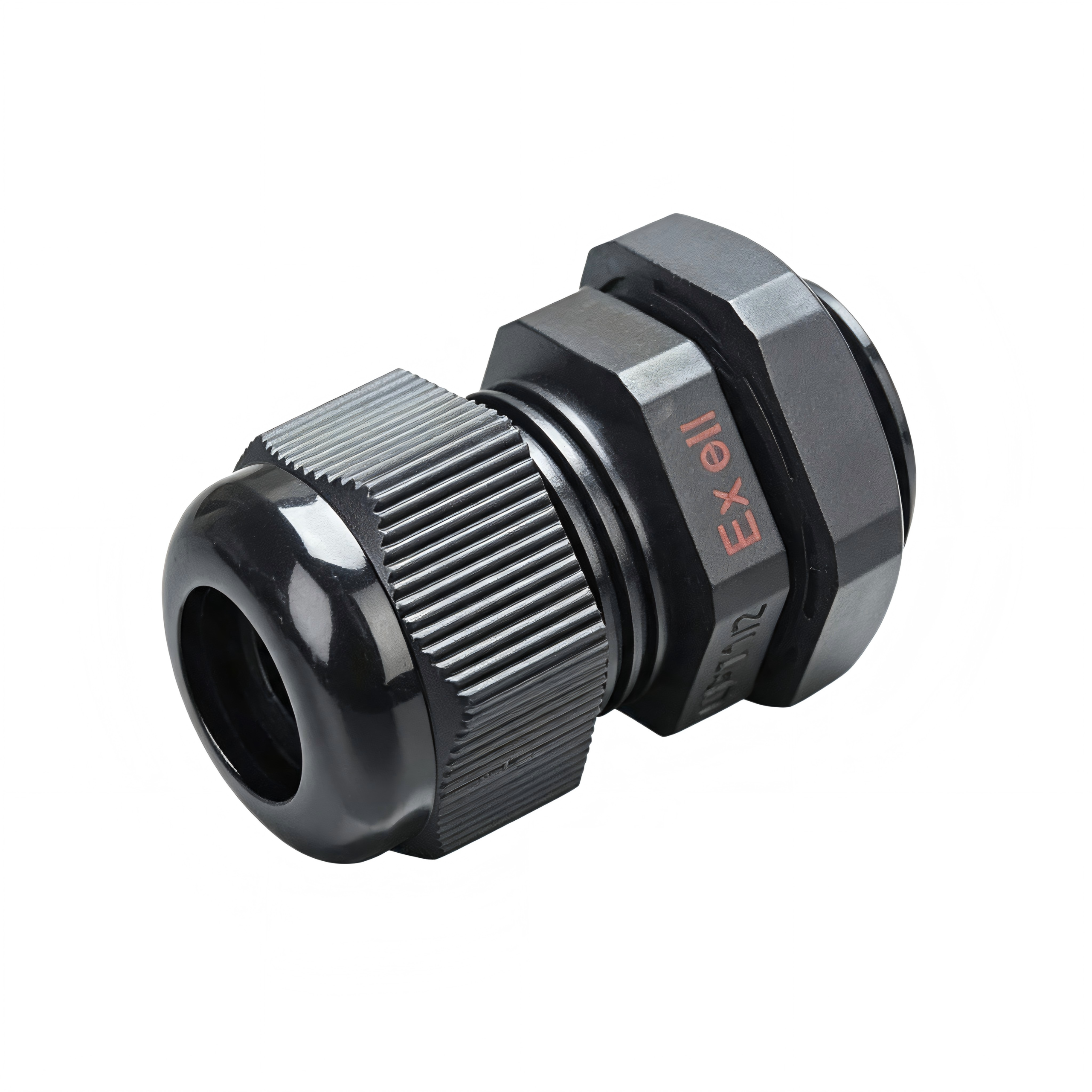

Explosion Proof Cable Gland BDM-2

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas: Gas hazardous areas: Zone 1, Zone 2, for IIA, IIB, IIC explosive gas atmospheresDust hazardous areas: Zone 21, Zone 22, for IIIC combustible dust locations
• Ex Marking: Gas protection: Ex eb IIC Gb / Ex tb IIIC Db

2.Product Parameters

• Product Type: BDM-2 single-seal, non-armoured, increased-safety explosion-proof cable gland
• Certification: Ex eb IIC Gb / Ex tb IIIC Db
• Material: Body: engineering plastic Nylon PA6; Sealing part: NBR rubber
• Exposed Fasteners: Engineering plastic Nylon PA6
• Electrical-Rated Voltage: Not marked on datasheet
• Electrical-Rated Current: Not marked on datasheet
• Protection-Protection Degree: IP66 / IP67 / IP68
• Protection-Ambient Temperature: -60℃ ~ +100℃
• Connection&Input-CableCross-section:Datasheetmarked  by  cable  outer diameter:4-8mm,5-10mm,6-12mm,10-14mm,13-18mm,16-21mm,18-25mm,22-32mm,32-38mm,30-38mm,37-44mm
• Connection & Input-Cable Entry: Metric M, NPT, G, PG thread (M16×1.5 ~ M60×1.5 full range sizes)
• Connection & Input-Cable Gland: BDM-2 series explosion-proof cable gland, single-seal, non-armoured, increased-safety type, used as cable entry device for increased-safety enclosures

3.Product Classification & Origin

HS Code: 8547901000
Country of Origin: China

4.Applicable Industries

• Applicable Industries: Petroleum, chemical, warehouse, pharmaceutical and other industries with hazardous explosive conditions
• Suitable for: It is used as cable entry device for increasedsafety enclosures, for cable entry sealing of electrical equipment in hazardous explosive areas.
• Practical Performance: The body is compression-molded of engineering plastic Nylon PA6. Multiple thread types are available: Metric M, NPT, G and PG. Standard colors are lightgrey and black, other colors can be customized. Good anti-corrosion and waterproof performance. Operating ambient temperature: -60℃ ~ +100℃, suitable for various site working conditions.
• Safety Performance: Explosion-proof marking Ex eb IIC Gb / Ex tb IIIC Db. Protection grade IP66 / IP67 / IP68. NBR rubber sealing component provides reliable waterproof sealing, meeting safety requirements for hazardous explosive locations.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1: What is the main body material of BDM-2 explosion-proof cable gland?

A1: It is molded from engineering plastic Nylon PA6, and the sealing part is made of neoprene rubber.



Q2: What is the ambient temperature range for BDM-2 cable gland?

A2: Its working ambient temperature ranges from -60 ℃ to +100 ℃.



Q3: What are the protection grades of BDM-2 series cable gland?

A3: The protection grades are IP66, IP67 and IP68.
