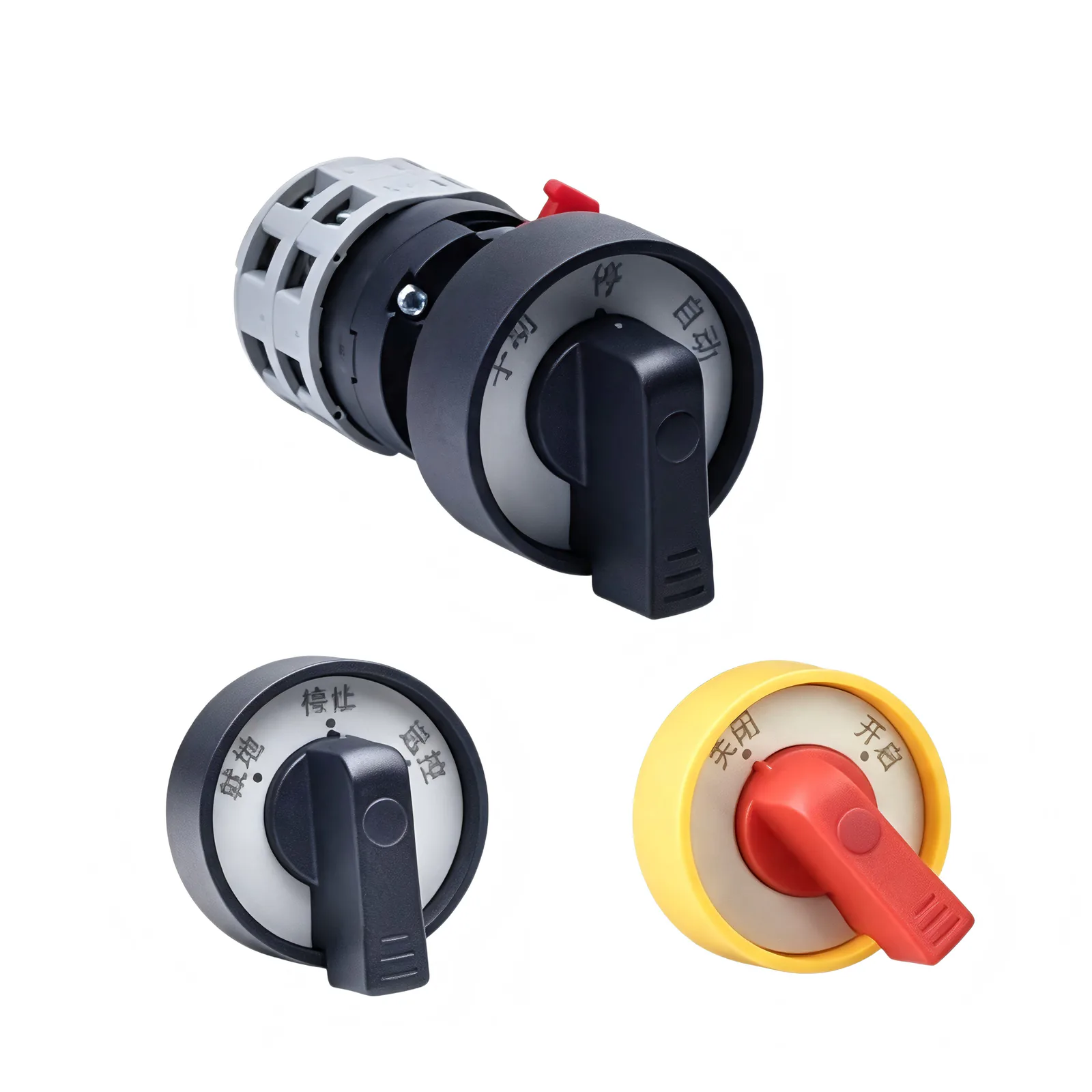

YX0501-ZK Changeover Switch & Operating Head

Technical Data

1.Explosion-proof Type

• Standards Implemented: YX0501-ZK change-over switch operating head is an internal electrical component without separate Ex certificate and must be fitted inside an enclosure complying with GB3836 for explosive atmospheres.
• Applicable Hazardous Areas: This switch cannot be used bare in explosive hazardous areas and can only work in relevant zones when assembled within a certified explosion-proof enclosure.
• Ex Marking: Gas protection: The switch itself has no independent Ex rating, and the final explosion-proof grade depends on its matched explosion-proof enclosure.

2.Product Parameters

• Product Type: Change-over switch operating head, multi-position rotary electrical component for circuit gear, start-stop and forward-reverse signal switching.
• Certification: No separate Ex certification shown on datasheet. It is built-in component and shall be used with certified explosion-proof enclosure.
• Material: Handle made of engineering plastic; base of insulating plastic; internal metal contacts.
• Exposed Fasteners: No exposed fasteners, fixed by panel cut-out clip-in mounting.
• Electrical-Rated Voltage: Max. 400V.
• Electrical-Rated Current: Max. 20A.
• Protection-Ingress Protection: No independent IP rating for component, protection performance depends on complete assembled enclosure.
• Protection-Ambient Temperature: No separate data on datasheet, operating condition follows matched explosion-proof enclosure.
• Connection-Cable Cross-section: Suitable for 2.5mm² conductor.
• Connection-Cable Entry: No cable entry on component itself. Cables connect to switch terminals; cable entry is provided by outer enclosure.
• Connection-Cable Gland: No gland supplied. Cable glands are installed on outer explosion-proof enclosure.

3.Product Classification & Origin

HS Code: 8536500000
Country of Origin: China

4.Applicable Industries

• Suitable for: Chemical, grain-oil, supporting mining, shipbuilding and automation complete-set equipment industries. It is installed inside explosion-proof enclosures to realize gear switching, start-stop and forward-reverse control of equipment.
• Practicality: YX0501-ZK change-over switch operating head has abundant gear options including self-reset, stop position and multi-signal sequential transmission. Rated voltage up to 400V, rated current up to 20A, 2-8 poles available for 2.5mm² cables, covering various control logics for fans, water pumps and other on-site equipment.
• Safety Performance: Various contact logics ensure reliable circuit switching with interlock and signal transmission functions to avoid mis-operation. The component shall be mounted inside explosion-proof enclosures, and the enclosure provides site explosion-proof protection for stable control-circuit switching.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, including comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1: What is the maximum rated current of YX0501-ZK change-over switch?

A1: Its maximum rated current is 20A.



Q2: Can this switch be used alone in explosive hazardous areas?

A2: No, it must be installed inside a certified explosion-proof enclosure.



Q3: What cross-section of wire is suitable for this switch terminal?

A3: The switch terminal is suitable for 2.5mm² wire.
