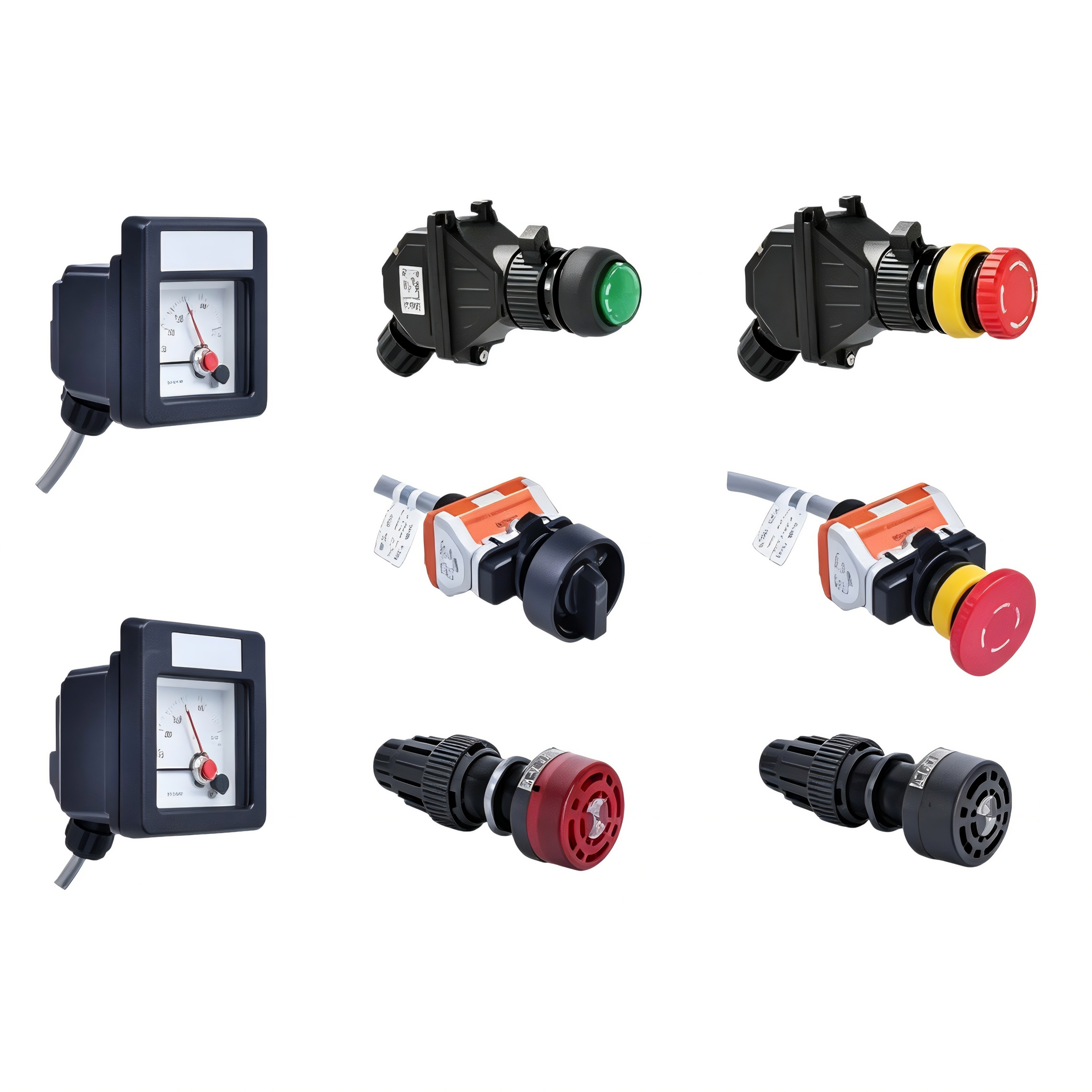

CH0801-8 Panel Mount Explosion Proof Push Button Control Switch

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas: Zone 1 and zone 2, Zone 21 and zone 22
• Ex Marking: Gas protection: Ex db eb IIC T6 Gb, Ex tb IIIC T80℃ Db

2.Product Parameters

• Product Type: Panel-mounted explosion-proof push button & switch
• Certification: Ex db eb IIC T6 Gb, Ex tb IIIC T80℃ Db
• Material: Engineering plastic housing
• Exposed Fasteners: Not specified in datasheet
• Electrical-Rated Voltage: AC400V, DC110V
• Electrical-Rated Current: 16A(AC), 1A(DC)
• Protection-Ingress Protection: IP66 (with operating head assembled)
• Protection-Ambient Temperature: -40℃ ~ +60℃
• Connection-Cable Cross-section: 2×2.5mm²
• Connection-Cable Entry: Plastic 1×M20
• Connection-Cable Gland: For cable outer diameter Φ6mmΦ12mm (standard)

3.Product Classification & Origin

HS Code: 8536500000
Country of Origin: China

4.Applicable Industries

• Applicable Industries: This series of panel-mounted explosion-proof electrics is widely used in petroleum, chemical, pharmaceutical, coal-chemical and other industrial sites with explosive gas and dust, matching desk-type control cabinets and monitoring equipment.
• Suitable for: It applies to Zone 1, Zone 2 explosive gas hazardous areas and Zone 21, Zone 22 explosive dust hazardous areas.

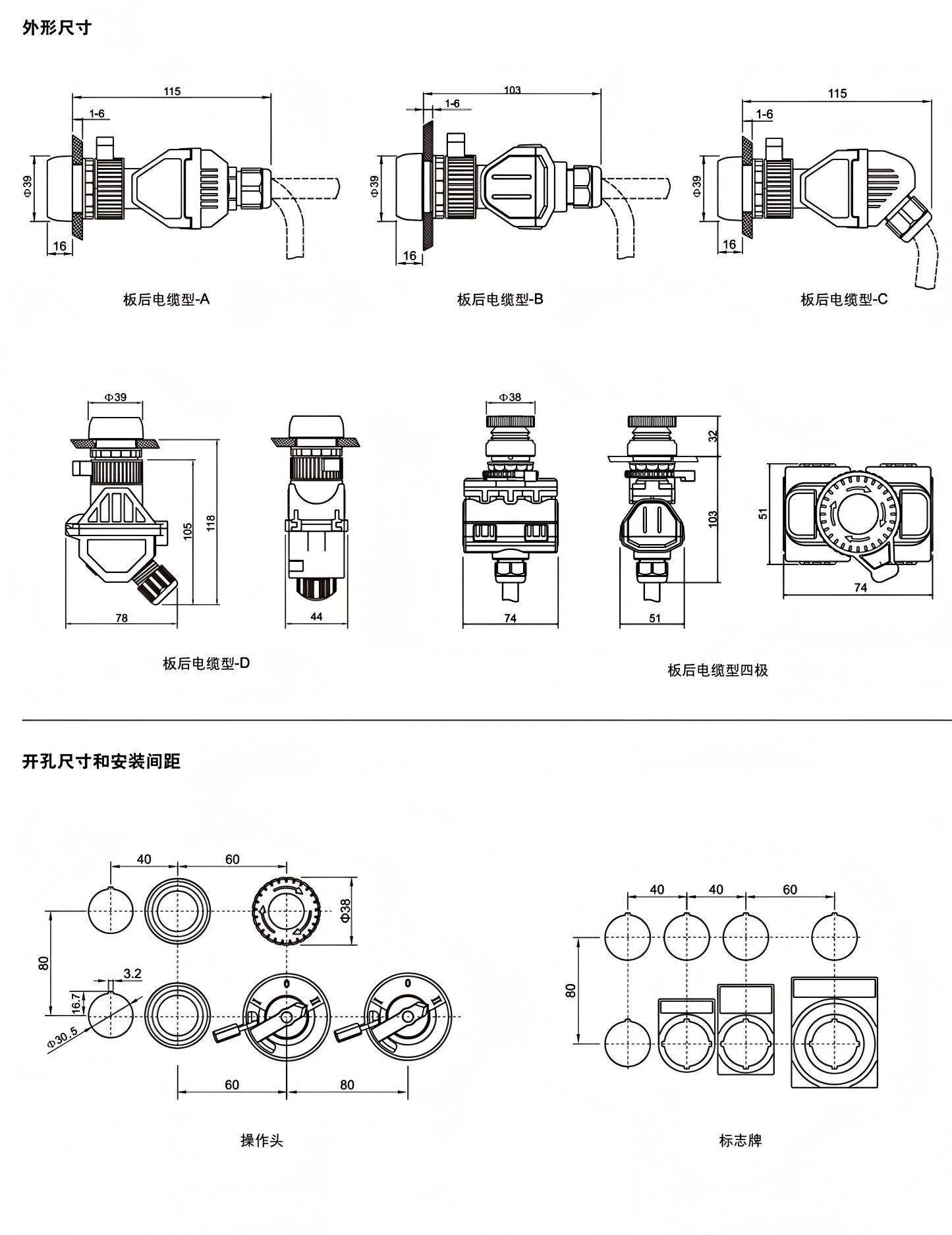

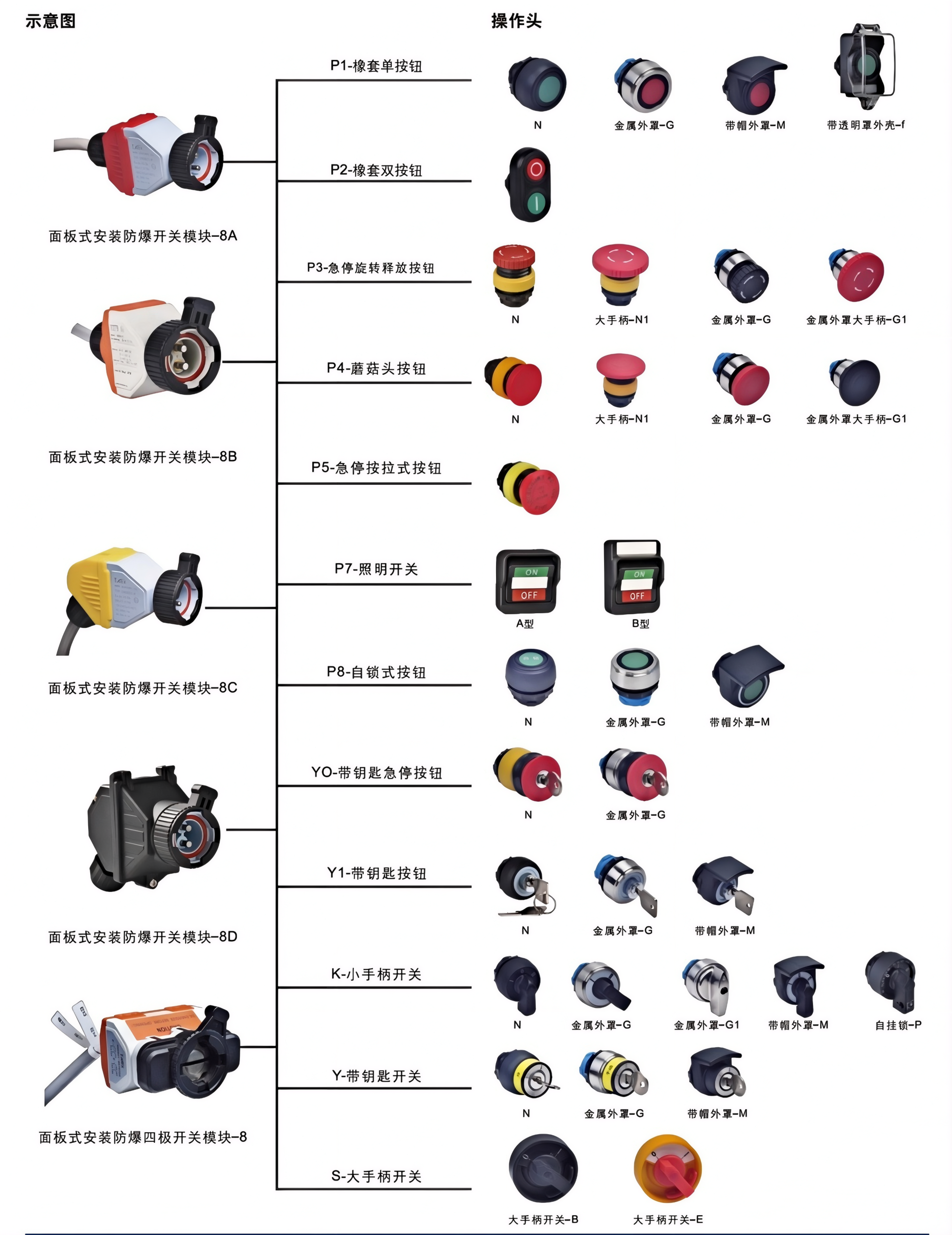

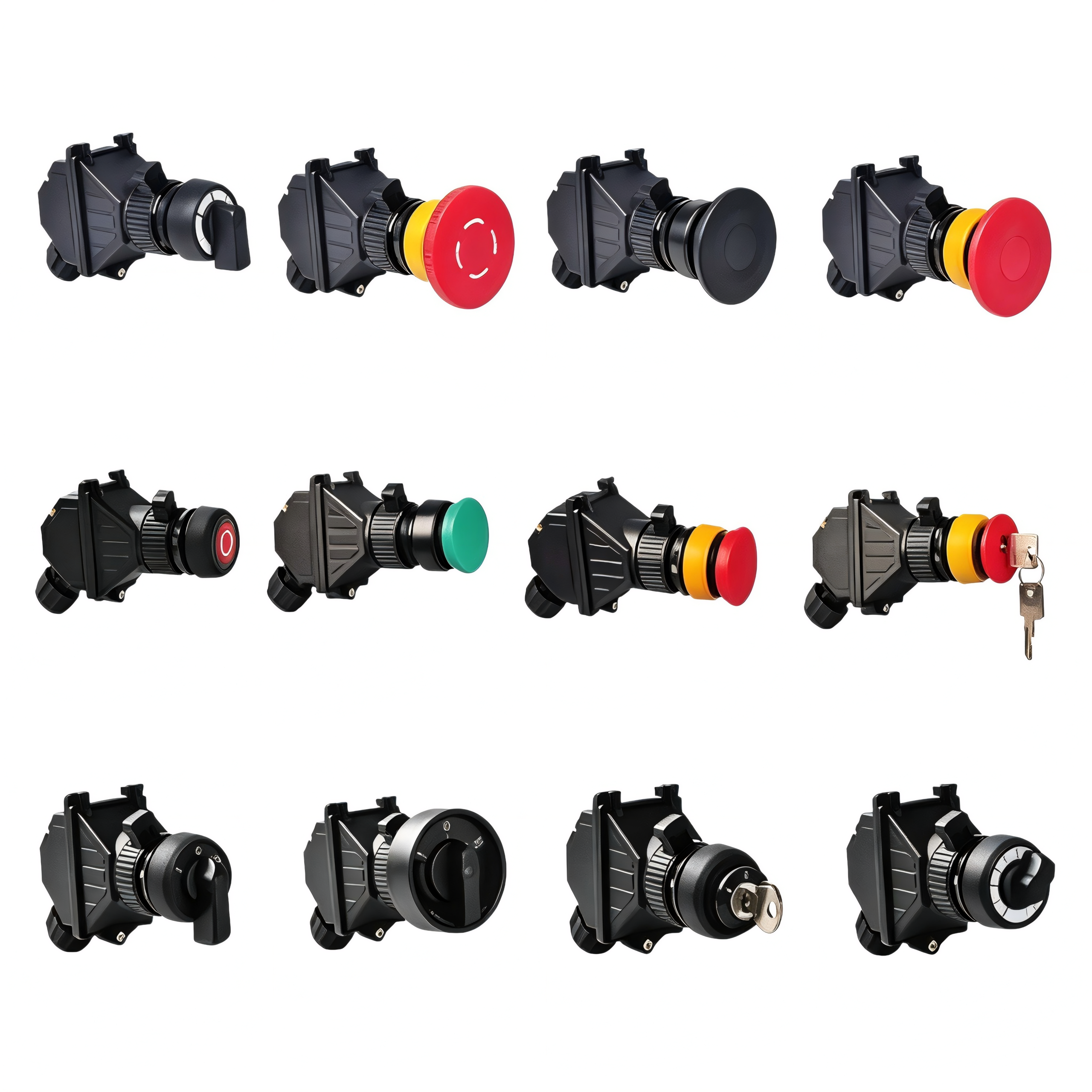

• Practical Performance: It fits 1-6 mm panel mounting with rich options for contacts and operating heads, permanent marking, long mechanical & electrical service life, supports independent operation and flexible cables for cabinet integration.
• Safety Performance: With dual gas-dust explosion-proof certification and IP66 protection, it works under wide temperature range; multiple contact materials ensure stable conduction and the explosion-proof housing meets hazardous-area safety standards.

5.Credibility

MMALATEX explosion-proof products comply with strict international standards and hold complete ATEX, IECEX and EAC certifications to ensure compliant operation in global markets. This series of explosion-proof products is engineered for extreme working conditions with IP65/IP66/IP67 protection ratings, delivering excellent resistance to water, dust and corrosion. We provide customers with in-depth supporting services, inclu-ding comprehensive technical support, complete warranty services and worldwide logistics support. Wherever your project is located, MMALATEX ensures smooth project delivery and provides safe and reliable solutions for hazardous areas.

6.FAQs

Q1：What hazardous areas are this series panel-mounted explosion-proof push buttons and switches suitable for?

A1：They are suitable for Zone 1, Zone 2 explosive gas hazardous areas and Zone 21, Zone 22 explosive dust hazardous areas.



Q2：What is the ingress protection rating of CH0801-8 explosion-proof push button & switch?

A2：Its ingress protection rating is IP66 when assembled with matching operating head.



Q3：What are the rated voltage and rated current for CH0801-8 explosion-proof push button & switch?

A3：Rated voltage is AC400V / DC110V, rated current is 16A for AC and 1A for DC.
