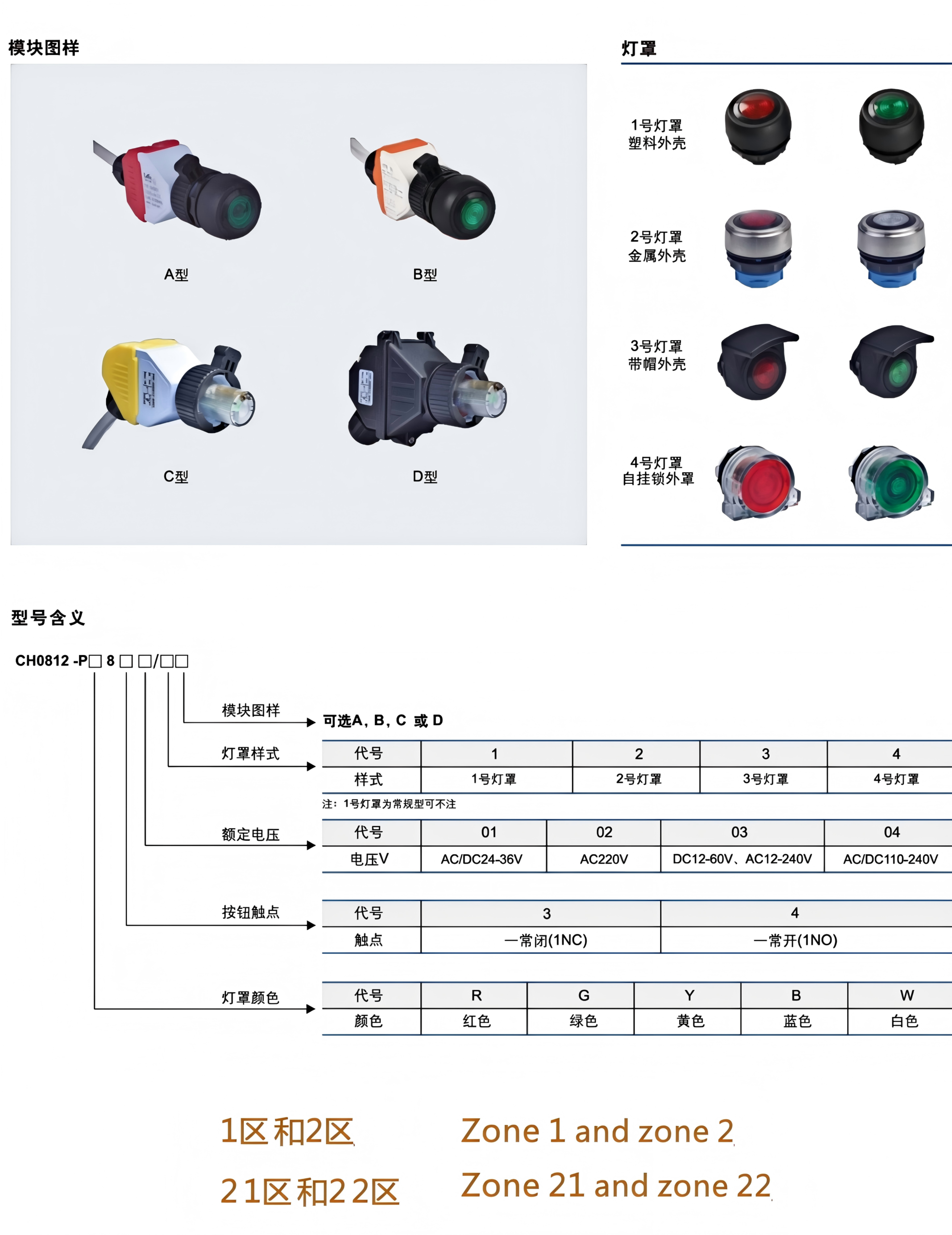

CH0812-8 Panel Mount Explosion Proof Lit Button Module

Explosion-proof certificate marking: Ex db eb IIC T6 Gb / Ex tb IIIC T80℃ Db
Applicable hazardous areas: Zone 1, Zone 2, Zone 21 and Zone 22
Ambient temperature range: -40℃ ~ +60℃
Operating temperature range: -40℃ ~ +75℃
Ingress Protection Rating: IP66 for rear-panel cable type (equipped with operating head)
Light source & power consumption: LED, maximum power ≤ 1W

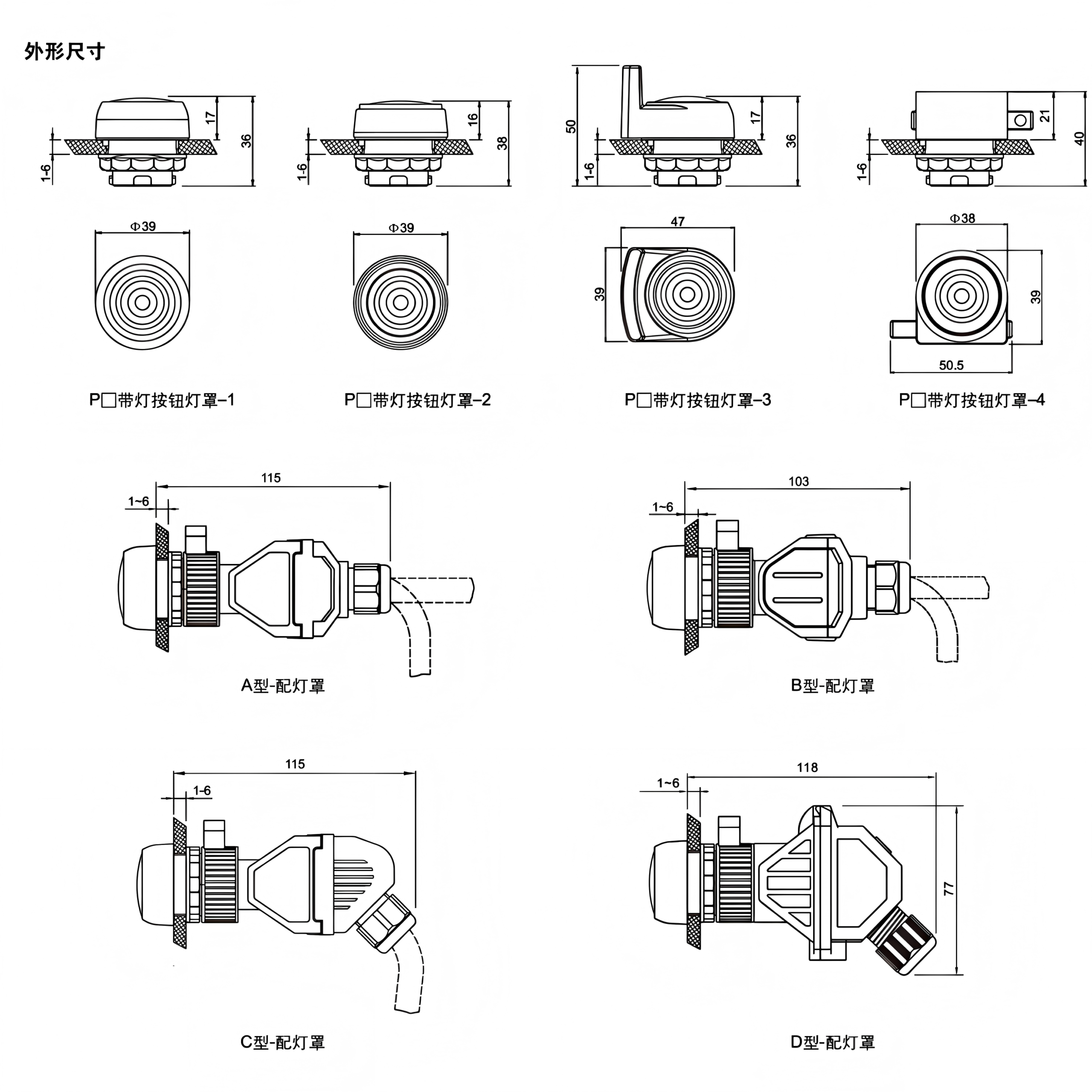

Rear-panel mounting: Installed on panels with thickness of 1–6 mm

The housing is injection molded with customized engineering plastic;
The transparent cover is injection molded from polycarbonate;
The indicator lamp adopts LED light source with ultra-long service life over 60,000 hours, energy-saving and environmentally friendly;
The mechanical service life of the button module reaches 600,000 operations; contact options are solid silver contacts or gold-plated silver contacts;
The rear-panel cable type is factory-fitted with 3-meter cable, specification: 4×1.5mm² cross-sectional area, outer diameter Φ9; cable length can be customized upon request
