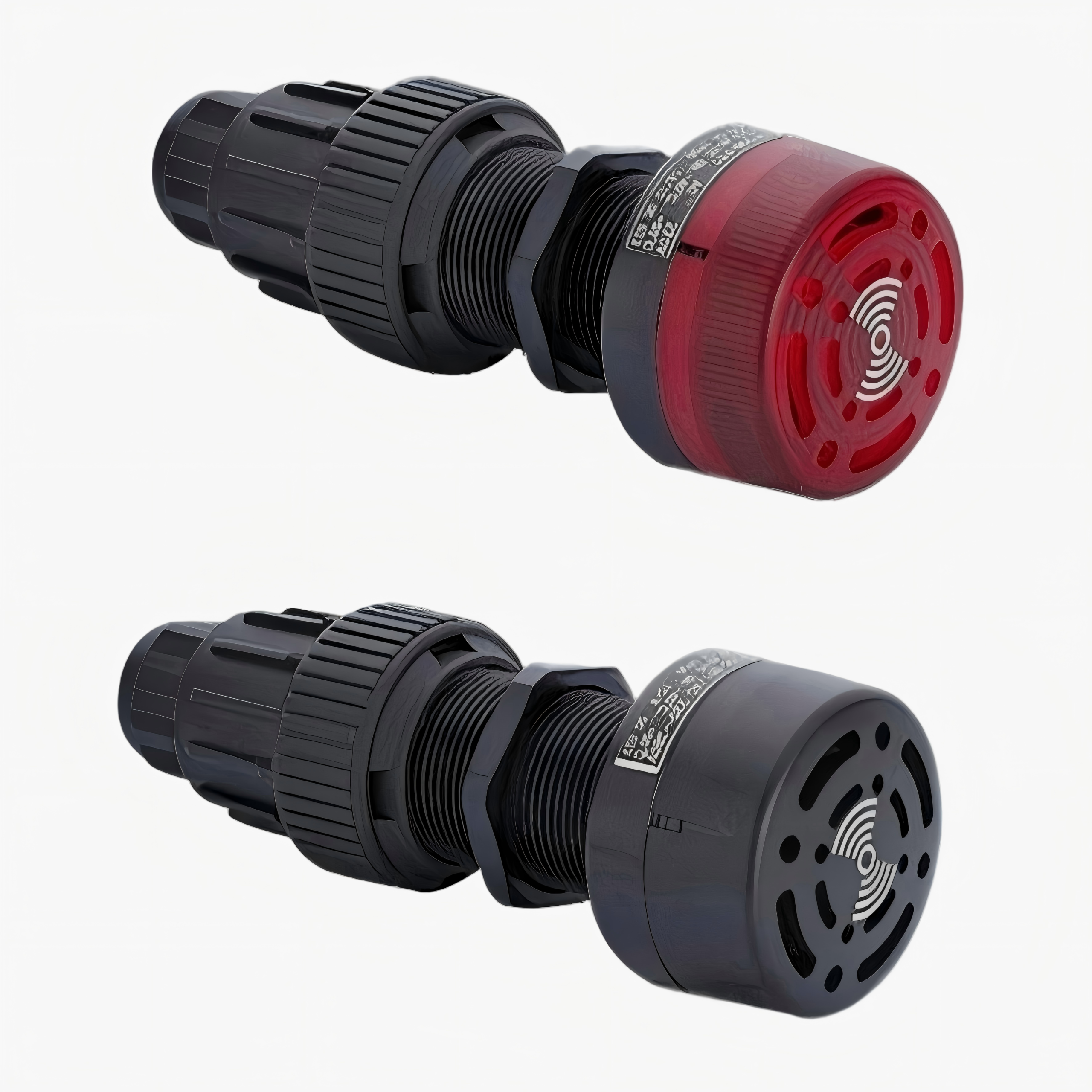

CH1208 Panel Mount Explosion Proof Strobe Buzzer

Main Technical Data
  • Explosion-proof Mark: Ex db eb ib mb IIC Gb / Ex ib tb IIIC Db
  • Applicable Zones: Zone 1, Zone 2, Zone 21 and Zone 22
  • Ambient Operating Temperature: -40℃ ~ +60℃
  • Working Temperature Range: -40℃ ~ +75℃
  • Ingress Protection Grade: IP66
  • Rated Voltage: AC/DC 24-36V, AC 240V
  • Rated Frequency: 50/60Hz
  • Rated Sound Pressure Level: 80dB (measured at 30cm distance)
  • Terminal Specification: 2×2.5mm²
Guaranteed Safe Checkout
Product Features
  • Transparent parts are injection-molded from polycarbonate;
  • Equipped with imported buzzer components;
  • The housing is made of engineering plastic;
  • The buzzer module is available in flashing and non-flashing types;
  • Flashing buzzers support multiple optional flashing colors;
  • LED indicator light featuring ultra-long service life (>60000h), energy saving and environmental protection;
  • Cable-type explosion-proof (flashing) buzzer can be mounted on panels with thickness of 1~6mm for independent use. It is widely applied in console control equipment and monitoring equipment with audible and visual alarm functions. Flexible cables can be configured as per customer requirements.

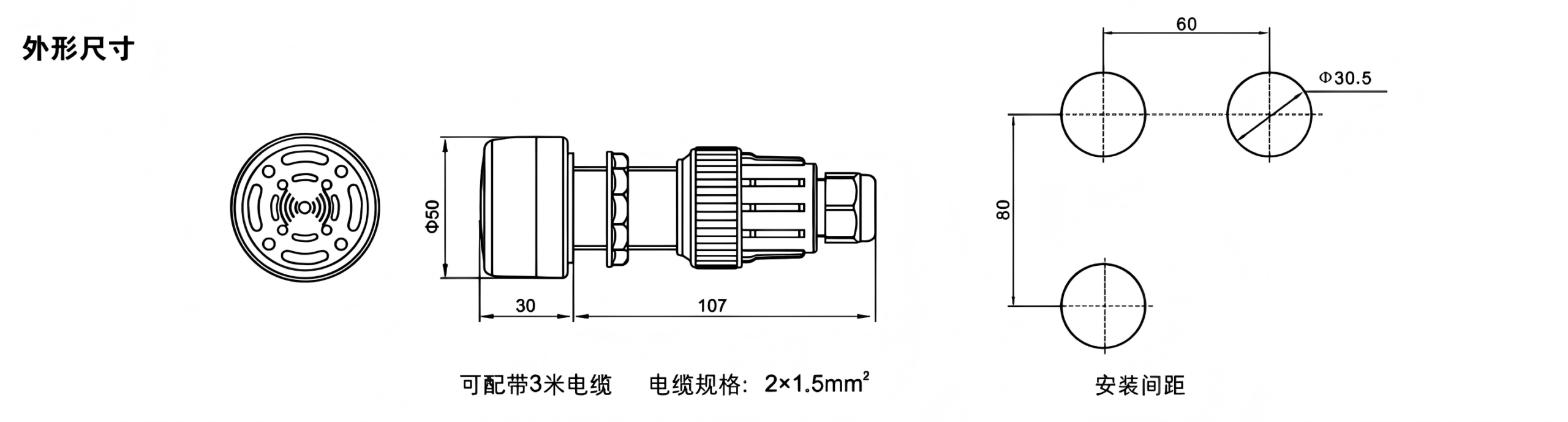

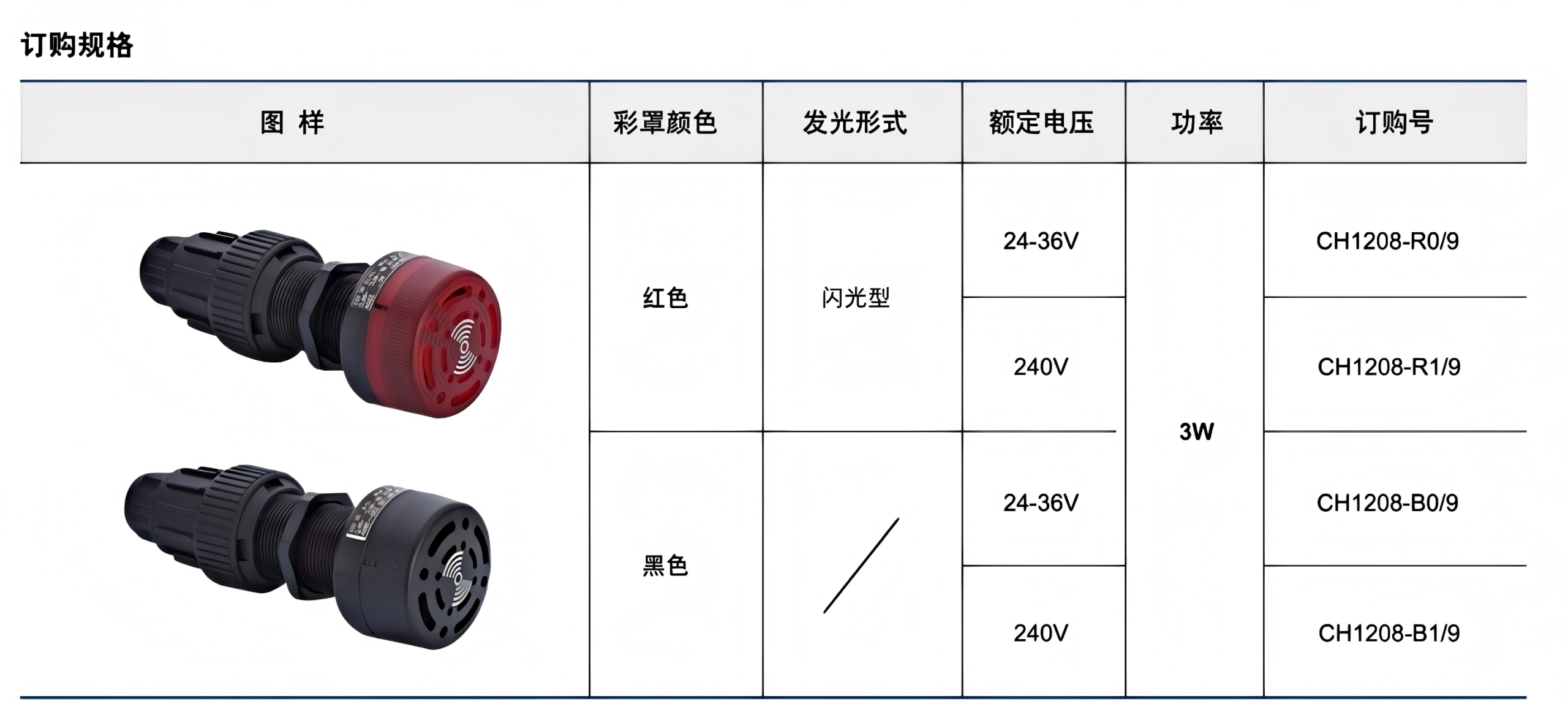

Order Specificationsch1208 ex proof strobe buzzerOverall Dimensionsch1208 ex proof strobe buzzer
