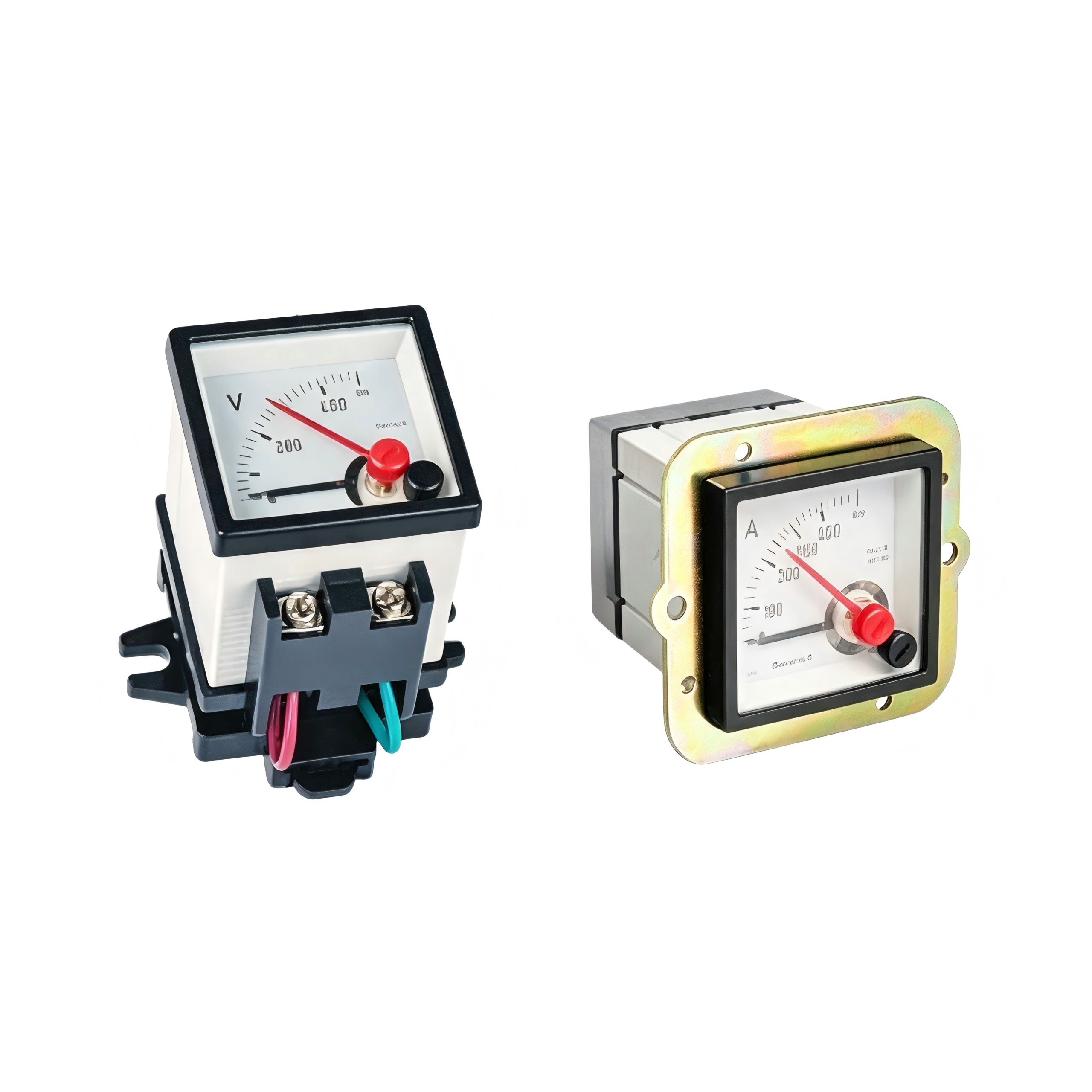

CP48/72 Explosionproof Meter Module

Technical Data

1.Explosion-proof Type

• Standards Implemented: CENELEC, IEC, NEC
• Applicable Hazardous Areas:Zone 1, Zone 2 explosive gas atmospheres, Zone 21, Zone 22 combustible-dust atmospheres.
• Ex Marking: Ex e II Gb for ammeter, Ex e mb II Gb for voltmeter

2. Product Parameters

• Product Type: Explosion-proof ammeter and voltmeter measurement modules, Model 48 and Model 72; front DIN-rail mounting type and rear panel mounting type, matched with display windows, supporting direct measurement and transformer-connected measurement.
• Certification / Explosion-proof Marking: Ex e II Gb (ammeter), Ex e mb II Gb (voltmeter). Suitable for Zone 1/Zone 2 explosive gas atmospheres, Zone 21/Zone 22 combustible-dust atmospheres.
• Material: Housing material not specified in datasheet.
• Exposed Fasteners: Front DIN-rail installation, rear panel mounting, fit for CP-48 / CP-72 cut-out panels. Screw specifications are not given.
• Electrical Rating-Rated Voltage: Voltmeter ranges:0-25V,0-40V,0-150V,0-250V,0-500V,30V/50V/75V/100V/120V/150V/200V,250V/300V/400V/450V; frequency 50/60Hz, power consumption ≤0.45VA.
• Electrical Rating-Rated Current: Ammeter ranges:0-1A,0-1.5A,0-3A,0-5A,0-7.5A,10A,15A,20A,25A,30A,40A,50A,60A,75A,100A; DC milliammeter:0-20(40)mA,4-20(40)mA; overload factor:2 times,5 times.
• Protection-Ingress Protection: IP rating not stated on datasheet.
• Protection-Ambient Temperature: -40℃～+60℃.
• Connection-Cable Cross-section: No relevant data in datasheet.
• Connection-Cable Entry: No built-in cable entry; module must be installed inside explosionproof enclosure.
• Connection-Cable Gland: Cable glands supplied by external matched explosionproof enclosure.

3.Product Classification & Origin

HS Code:9030331000

Country of Origin: China

4.Applicable Industries

• Suitable for: Petrochemical, coal-chemical, pharmaceutical, coating, mining, oil-gas storage & transportation, sewage treatment and other industries with explosive gas and combustible-dust hazardous working conditions.
• Practicality: Available in Model 48 and Model 72, supporting front DIN-rail mounting and rear panel mounting. It adopts direct-measurement and transformer-connected measurement modes, with wide ranges for AC/DC voltage, current and milliamp signals at accuracy class 1.5. Matching display windows are provided to satisfy various on-site electrical parameter monitoring requirements.
• Safety Performance: Explosion-proof marking Ex e II Gb for ammeter and Ex e mb II Gb for voltmeter, applicable to Zone 1/2 gas and Zone 21/22 dust hazardous locations. Operating ambient temperature ranges from -40℃ to +60℃. This module must be installed inside explosion-proof enclosure and cannot be used alone in explosive hazardous atmosphere.
