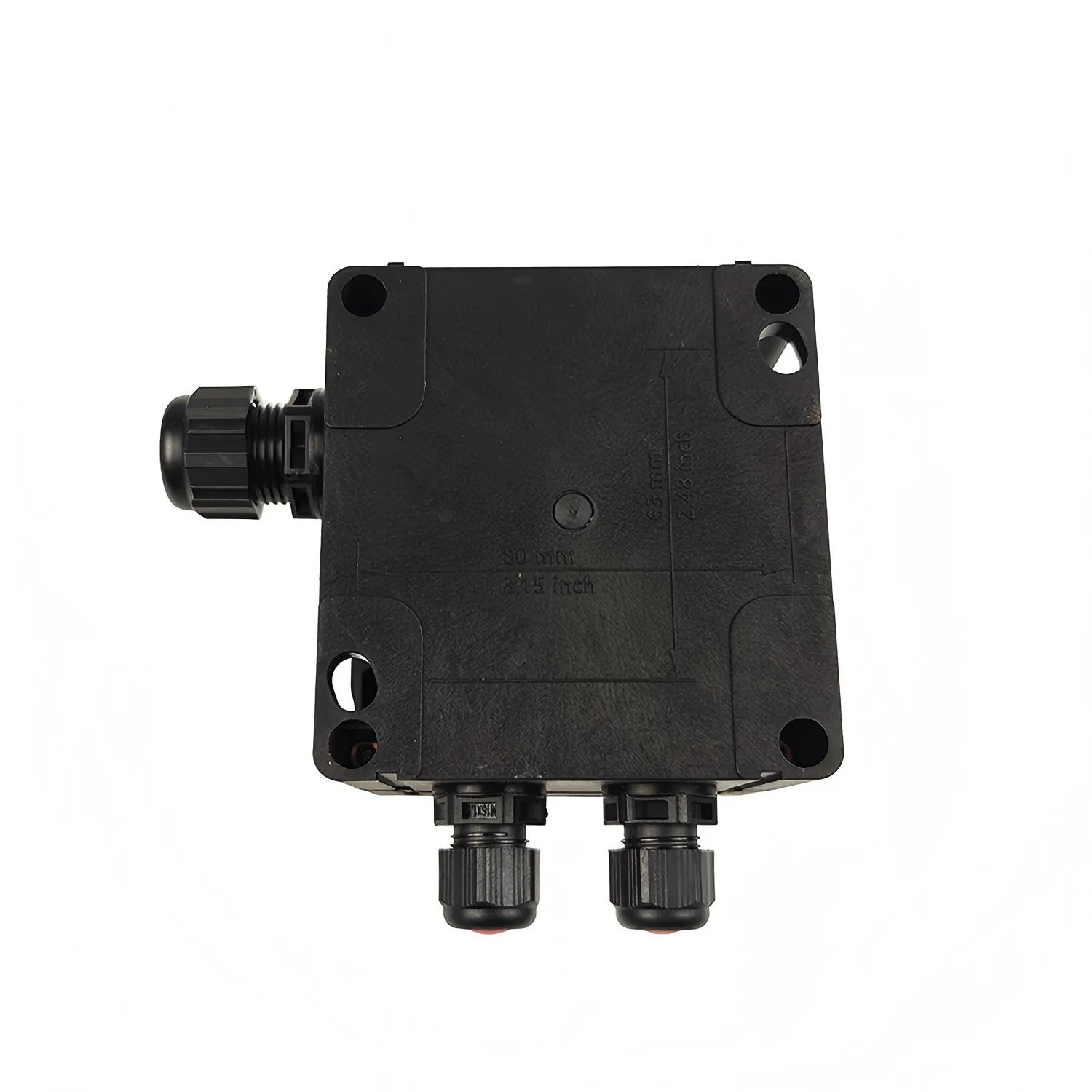

MMFFEX51 Explosion Proof Junction Box

Application Scope
  • Zone 1, Zone 2 hazardous areas with IIA ~ IIC explosive gas atmospheres, and/or Zone 21, Zone 22 explosive dust environments;
  • Temperature class: T1 ~ T6;
  • Indoor and outdoor installation (IP66 protection grade);
  • Suitable for chemical plants, oil refineries, offshore oil extraction platforms, oil tankers, military industry and other hazardous locations, for connection and branching of lighting, power and control circuits.
Categories: , , , , ,
Guaranteed Safe Checkout
Type Explosion-proof Box IP Rating IP66
Material Metal, Plastic Overall Dimension /
Origin China Brand MMAIATEX
Product Name Explosion-proof Controller Color Customizable
Certifications NEPSI & CNEX Operating Temperature -55 ~ +60℃
Rated Voltage 220V, 380V Service Life 100,000 hours
Warranty 1 year or subject to product Application Zones Zone 0, 1, 2 / Zone 20, 21, 22
Ex Mark Ex de IIC T6, A20 TA, T6
Selling Unit Single piece Single Package Size 35×15×10 cm
Gross Weight Per Unit 0.3 kg
Product Features
  • Die-cast aluminum alloy housing with high-voltage electrostatic plastic-sprayed surface; exposed fasteners made of stainless steel.
  • Labyrinth sealing structure on mating surface; sealing strip adopts imported cast-in-place foamed polyurethane or silicone rubber, delivering excellent waterproof and dustproof performance.
  • Modular design for flexible combination as required.
  • Customizable to meet customer requirements.
  • Supports cable wiring or flexible conduit wiring.
